JOS1FW 7

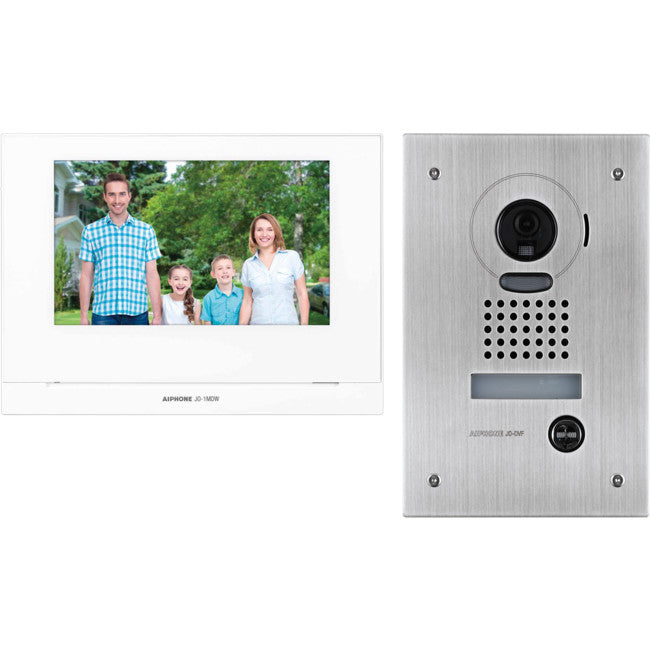

JOS1FW 7" WIRELESS VIDEO INTERCOM KIT WITH JO1MDW, JODVF & P/S AIPHONE JOS1FW

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab features}

JOS-1FW includes JO-DVF - Stainless Steel Flush fitting camera

7 INCH TOUCH SCREEN HANDS-FREE VIDEO INTERCOM SYSTEM WITH SMART PHONE CONNECTION

JO Series with smartphone connectivity. Enhanced convenience and security for your home and office

Answer calls anywhere inside or outside your home- Handledeliveries when not at home - Open your door from anywhere

Simple Installation

Connect all units in the system with just 2 wires.

Automatic updates ensure you always have the latest functionality and security

  • Easy operation by 7-inch touch screen
  • Total hands-free communication
  • Zoom and wide screen

Video Recording

View recordings remotely

Record visitors even when not able to answer calls.

View the recordings from the master station or your smartphone.

Video memory

  • Internal memory :10 calls(max)
  • SD card :1,000 calls(max)
  • Touch screen operation micro SD micro SDHC (4GB~32GB)



Touch Screen Operation

  • Smartphone connection
    • Control whether calls are forwarded to mobile devices.
  • Notifications
    • Confirm system updates and other important notifications.
  • Play
    • Play and manage call recordings.
  • Monitor
    • Monitor your door.
  • Settings
    • Manage system settings.
  • Door release
    • Operate the electrie lock connected to the masterstation.
  • Option output
    • Control external devices connected to the master station.
  • Talk
    • Communicate with the door stations



System Configeration

Max system Configeration

1 x Door - 2 x Room - 8 x Smartphone

Installations Using A Single Room Station

Installations Using Two Room Stations



Optional second wired Room station - JO-1FD can also be installed ( Note requires 2 x 2 core cable )



Door Station Options

Select from 3 different styles.

All options can handle tough weather conditions. .

JO-DA - Plastic surface mount camera

  • IP54 - Dust and moisture resistant
  • Nighttime LED

JO-DV - Vandal resistant metal surface mount camera

  • IP54 - Dust and moisture resistant
  • Ruggedized against vandalism
  • ZINC material
  • Nighttime LED

JO-DVF - Stainless Steel Flush fitting camera

  • IP54 Dust and moisture resistant
  • Ruggedized against vandalism
  • STAINLESS STEEL material
  • Nighttime LED

Smartphone Application provides connectivity everywhere

  • Have the functionality of the master station in your pocket
  • Answer calls from the door station.
  • Monitor the door station.
  • Operate electric locks while answering a call
  • Control external devices while answering a call
  • Switch between speakerphone mode and telephone mode asnecessary
  • Zoom in and zoom out functions.

Connect your smartphone in 3 simple steps

1 Install application
  • INTERCOM APP TypeB (iOS) INTERCOM APP TypeB (Android)
2 Register with master station
  • Register by using a one-time password. PASSWORD 1234PASSWORD 1234
  • No need to provide email or other personal details
3 Done
  • Wi-Fi master station Smartphone or Tablet Have the functionality of the master station in your pocket



Compatible with existing JO series



Image result for Aiphone jo-1mdw images



{tab specifications}

JO-1MDW

  • Power Source
18V DC, Supplied from a power supply
  • Current Consumption
450mA(max.) 80mA(standby.)
  • Video Monitor
7’’ TFT LCD touch screen
  • Resolution
800×480 (approx.384,000 pixels)
  • Type of Communication
Open voice hands-free auto-voice actuation or Touch-to-talk communication
  • Ambient Temperature
0-40 degrees Centigrade
  • Wireless Lan Interface
IEEE802.11b/g/n
  • Video memory
Internal memory: 10 calls(max.) (10 seconds/call) SD card: 1,000 calls(max.)(10 seconds/call)
  • Protect video
Internal memory: 5 calls(max.) micro SDHC card: 100calls(max.)
  • SD Card
micro SDHC card: 4GB-32GB
  • Door Release contact
24V AC/DC, 1A (N/O dry closure contact)
  • Option button output
24V AC/DC, 1A (N/O dry closure contact)
  • Mounting
Surface wall mount
  • Material
Unit case: Self-extinguishing PC + ABS resin Surface panel: Glass
  • Weight
Approx.620g

JO-DA

  • Power source
Supplied from Master monitor station or Expansion monitor station
  • Type of Communication
Open voice hands-free communication
  • Camera
1/4 inch color CMOS
  • Ambient Temperature
-20~+60°C(-4~+140°F)
  • Mounting
Surface wall mount
  • Material
Self-extinguishing PC + ABS plastic
  • Weight
Approx.200g
  • IP rating
IP54
  • IK rating
-

JO-DV

  • Power source
Supplied from Master monitor station or Expansion monitor station
  • Type of Communication
Open voice hands-free communication
  • Camera
1/4 inch color CMOS
  • Ambient Temperature
-20~+60°C(-4~+140°F)
  • Mounting
Surface wall mount
  • Material
Front panel: Zinc die cast. Main unit:Self-extinguishing PC + ABS resin
  • Weight
Approx.200g
  • IP rating
IP54
  • IK rating
IK08

JO-DVF

  • Power source
Supplied from Master monitor station or Expansion monitor station
  • Type of Communication
Open voice hands-free communication
  • Camera
1/4 inch color CMOS
  • Ambient Temperature
-20~+60°C(-4~+140°F)
  • Mounting
Flush mount (Mounts on built-in back box)
  • Material
Front panel: Stainless steel. Main unit: Self-extinguishing PC + ABS resin
  • Weight
Approx.200g
  • IP rating
IP54
  • IK rating
IK07



{/tabs}
