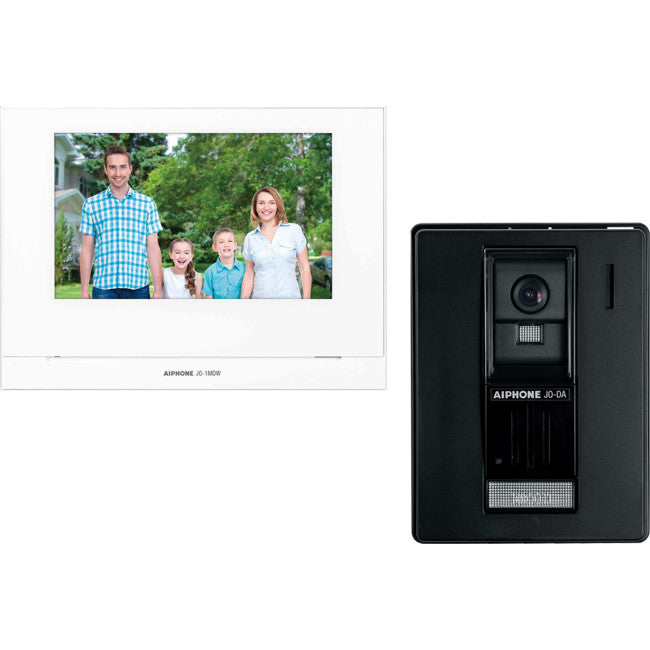

JOS1AW 7" WIRELESS VIDEO INTERCOM KIT WITH JO1MDW, JODA & P/S AIPHONE JOS1AW

$1,039.65

features

JOS-1AW includes JO-DA - Plastic surface mount camera and Power supply

7 INCH TOUCH SCREEN HANDS-FREE VIDEO INTERCOM SYSTEM WITH SMART PHONE CONNECTION

JO Series with smartphone connectivity. Enhanced convenience and security for your home and office

Answer calls anywhere inside or outside your home- Handledeliveries when not at home - Open your door from anywhere

Simple Installation

Connect all units in the system with just 2 wires.

Automatic updates ensure you always have the latest functionality and security

Easy operation by 7-inch touch screen
Total hands-free communication
Zoom and wide screen

Video Recording

Image result for Aiphone jo-1mdw images

Record visitors even when not able to answer calls.

View the recordings from the master station or your smartphone.

Video memory

Internal memory :10 calls(max)
SD card :1,000 calls(max)
Touch screen operation micro SD micro SDHC (4GB~32GB)

Touch Screen Operation

Smartphone connection
- Control whether calls are forwarded to mobile devices.
Notifications
- Confirm system updates and other important notifications.
Play
- Play and manage call recordings.
Monitor
- Monitor your door.
Settings
- Manage system settings.
Door release
- Operate the electrie lock connected to the masterstation.
Option output
- Control external devices connected to the master station.
Talk
- Communicate with the door stations

System Configeration

Max system Configeration

1 x Door - 2 x Room - 8 x Smartphone

Installations Using A Single Room Station

Installations Using Two Room Stations

Optional second wired Room station - JO-1FD can also be installed ( Note requires 2 x 2 core cable )

Door Station Options

Select from 3 different styles.

All options can handle tough weather conditions. .

JO-DA - Plastic surface mount camera

IP54 - Dust and moisture resistant
Nighttime LED

JO-DV - Vandal resistant metal surface mount camera

IP54 - Dust and moisture resistant
Ruggedized against vandalism
ZINC material
Nighttime LED

JO-DVF - Stainless Steel Flush fitting camera

IP54 Dust and moisture resistant
Ruggedized against vandalism
STAINLESS STEEL material
Nighttime LED

Smartphone Application provides connectivity everywhere

Have the functionality of the master station in your pocket
Answer calls from the door station.
Monitor the door station.
Operate electric locks while answering a call
Control external devices while answering a call
Switch between speakerphone mode and telephone mode asnecessary
Zoom in and zoom out functions.

Connect your smartphone in 3 simple steps

1 Install application

INTERCOM APP TypeB (iOS) INTERCOM APP TypeB (Android)

2 Register with master station

Register by using a one-time password. PASSWORD 1234PASSWORD 1234
No need to provide email or other personal details

3 Done

Wi-Fi master station Smartphone or Tablet Have the functionality of the master station in your pocket

Compatible with existing JO series

Image result for Aiphone jo-1mdw images

specifications

JO-1MDW

Power Source	18V DC, Supplied from a power supply
Current Consumption	450mA(max.) 80mA(standby.)
Video Monitor	7’’ TFT LCD touch screen
Resolution	800×480 (approx.384,000 pixels)
Type of Communication	Open voice hands-free auto-voice actuation or Touch-to-talk communication
Ambient Temperature	0-40 degrees Centigrade
Wireless Lan Interface	IEEE802.11b/g/n
Video memory	Internal memory: 10 calls(max.) (10 seconds/call) SD card: 1,000 calls(max.)(10 seconds/call)
Protect video	Internal memory: 5 calls(max.) micro SDHC card: 100calls(max.)
SD Card	micro SDHC card: 4GB-32GB
Door Release contact	24V AC/DC, 1A (N/O dry closure contact)
Option button output	24V AC/DC, 1A (N/O dry closure contact)
Mounting	Surface wall mount
Material	Unit case: Self-extinguishing PC + ABS resin Surface panel: Glass
Weight	Approx.620g

JO-DA

Power source	Supplied from Master monitor station or Expansion monitor station
Type of Communication	Open voice hands-free communication
Camera	1/4 inch color CMOS
Ambient Temperature	-20~+60°C(-4~+140°F)
Mounting	Surface wall mount
Material	Self-extinguishing PC + ABS plastic
Weight	Approx.200g
IP rating	IP54
IK rating	-

JO-DV

Power source	Supplied from Master monitor station or Expansion monitor station
Type of Communication	Open voice hands-free communication
Camera	1/4 inch color CMOS
Ambient Temperature	-20~+60°C(-4~+140°F)
Mounting	Surface wall mount
Material	Front panel: Zinc die cast. Main unit:Self-extinguishing PC + ABS resin
Weight	Approx.200g
IP rating	IP54
IK rating	IK08

JO-DVF

Power source	Supplied from Master monitor station or Expansion monitor station
Type of Communication	Open voice hands-free communication
Camera	1/4 inch color CMOS
Ambient Temperature	-20~+60°C(-4~+140°F)
Mounting	Flush mount (Mounts on built-in back box)
Material	Front panel: Stainless steel. Main unit: Self-extinguishing PC + ABS resin
Weight	Approx.200g
IP rating	IP54
IK rating	IK07
