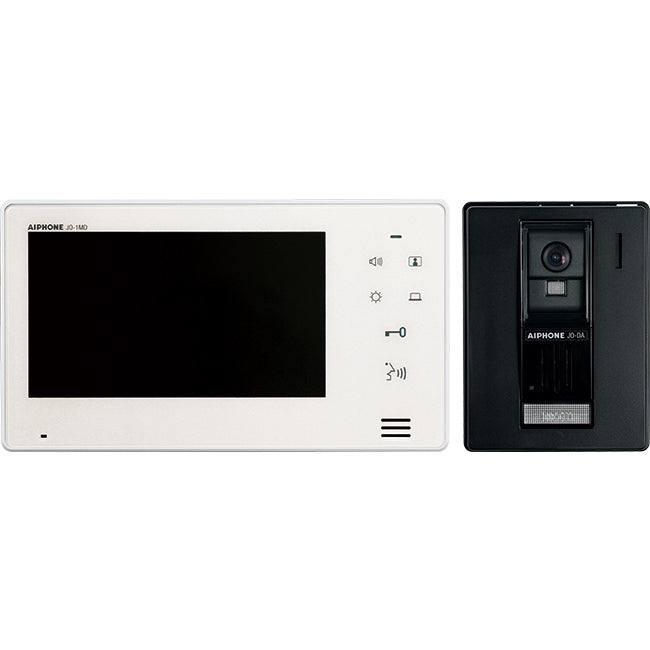

JOS1A 7" COLOUR VIDEO INTERCOM KIT WITH JO1MD, JODA & P/S AIPHONE JOS-1A

$709.78

The JO series is a stylish design 7" screen that delivers high quality images. The JO Series can accommodate one door and up to two inside stations.

Easy to identify and use touch buttons makes it simple tooperate allowing identification and communication withvisitors at locked doors.

Door / gate release button allows you to accept your visitor with out leaving the screen.

The JO series is equiped with an advanced light adjustment feature to compensate for varying light levels

The JOS1A includes:

1 x JODA plastic surface mount door station

1 x JO1MD master station

1 x 18 volt power supply

OPTIONAL:

1 x JO1FD Expansion monitor

FEATURES:

Power Source 18V DC
Communication
- Hands-free: Auto-voice actuation
- PTT: Push-to-talk, release-to-listen
Video Monitor 7" color LCD screen
Door Release Contact rating: 24V AC/DC, 500mA - use RY-18L for larger contact rating
Min. Illumination 5 lux at 1'6"
Wiring Door to master: 2 conductor, mid cap, solid, non-shielded
Wire Type KBWIRE

Ready to install box sets include one door station, one inside station, and power supply.

other Kits available

JOS1F - Includes 1 x JODVF door station and 1 x JO1MD master station and 1 x 18 volt power supply
JOS1V - Includes 1 x JODV door station and 1 x JO1MD master station and 1 x 18 volt power supply

SPECIFICATIONS:

JO-1MD Master Station
Power supply	18 Volts DC
Current consumption	( Standby ) 24 mA ( Max ) 410 mA
Communication	Hands-free: Auto-voice actuation
	PTT: Press-to-talk, release to listen
Ambient temperature	0 - 40°C (+32°F - +104°F)
Monitor	7 inch color LCD screen
Mounting	Wall mount
Electrical Box	3 gang box
Material	Flame resistant ABS resin
Color	White
Dimmension	130 (H) x 230 (W) x 21 (D) (mm)
	5-1/8 (H) x 9-1/16 (W) x 13/16 (D) (inches)
Weight	Approx. 470g (1.04 lbs.)

JO-DA/JO-DV/JO-DVF (Video door station)
Camera Unit	1/4 - inch color CMOS
Ambient temperature	-20 - 60°C (-4°F - +140°F)
Minimum illumination	Approx. 5 lux at 50 cm (1'6'') distance

Dimensions (JO-DA)	129 (H) x 97 (W) x 36 (D) (mm) 5-3/32 (H) x 3-27/32 (W) x 1-13/32 (D) (inches)
Dimensions (JO-DV)	173 (H) x 98 (W) x 27 (D) (mm) 6-13/16 (H) x 3-7/8 (W) x 1-3/8 (D) (inches)
Dimensions (JO-DVF)	209 (H) x 135 (W) x exposed area 3.5 (D) (mm) 8-1/4 (H) x 5-5/16 (W) x 5/16 (D) (inches)
(Flush mount back box for JO-DVF)	180 (H) x 110 (W) x 45 (D) (mm) 7-3/32 (H) X 4-3/8 (W) X 1-25/32 (D) (inches)
Weight (JO-DA)	Approx. 200 g (0.44 lbs.)
Weight (JO-DV)	Approx. 650 g (1.43 lbs.)
Weight (JO-DVF)	Approx. 580 g (1.27 lbs.)
(Flush mount back box for JO-DVF)	Approx. 550 g (1.2 lbs.)
IP rating	IP54 (JO-DA / JO-DV / JO-DVF)
IK rating	IK08 (JO-DV) IK07 (JO-DVF)
