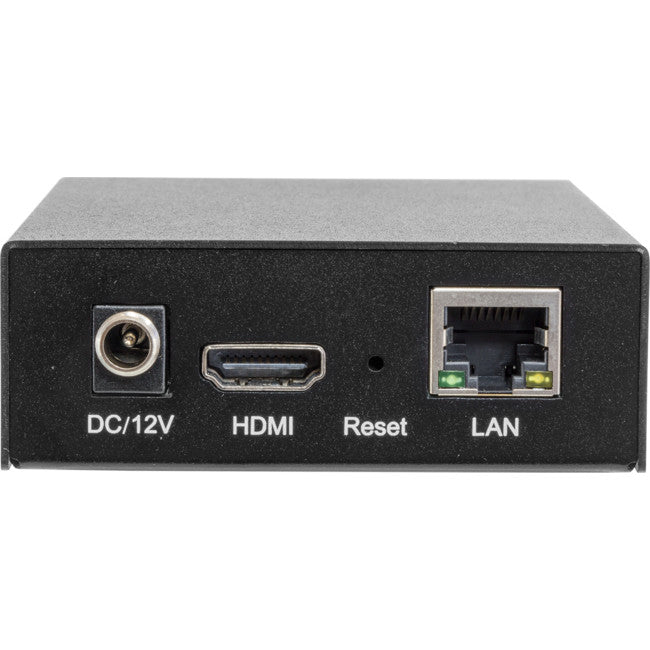

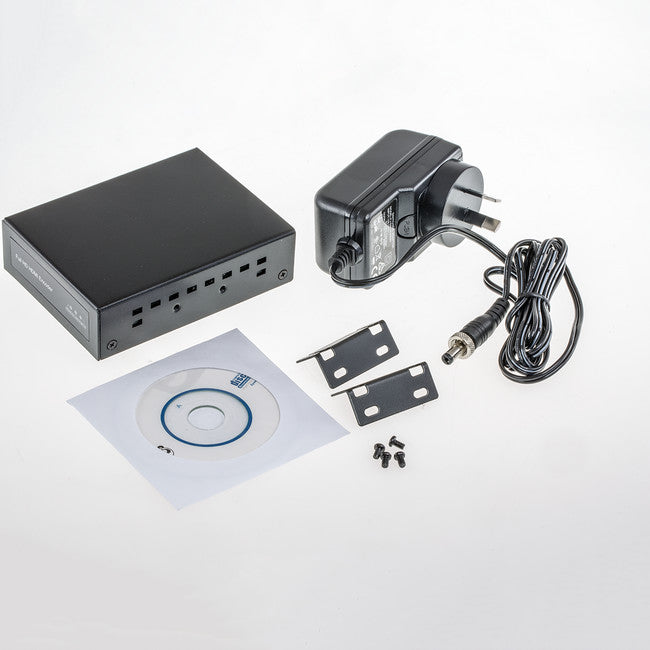

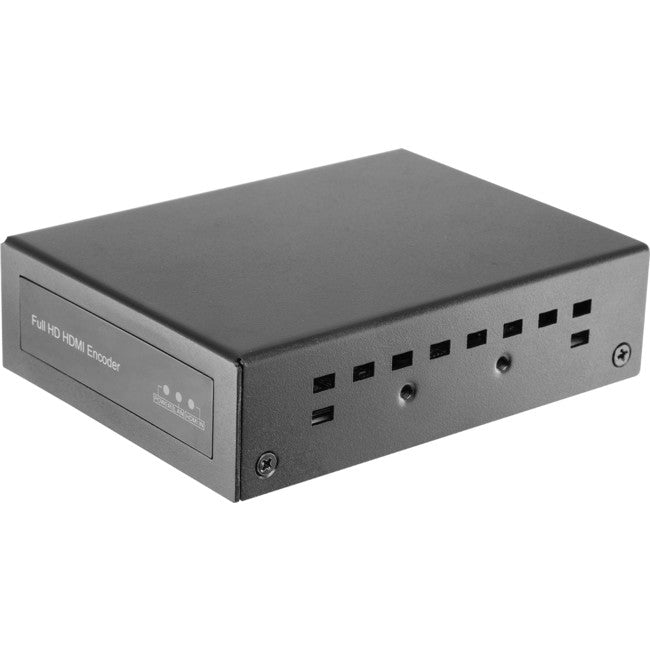

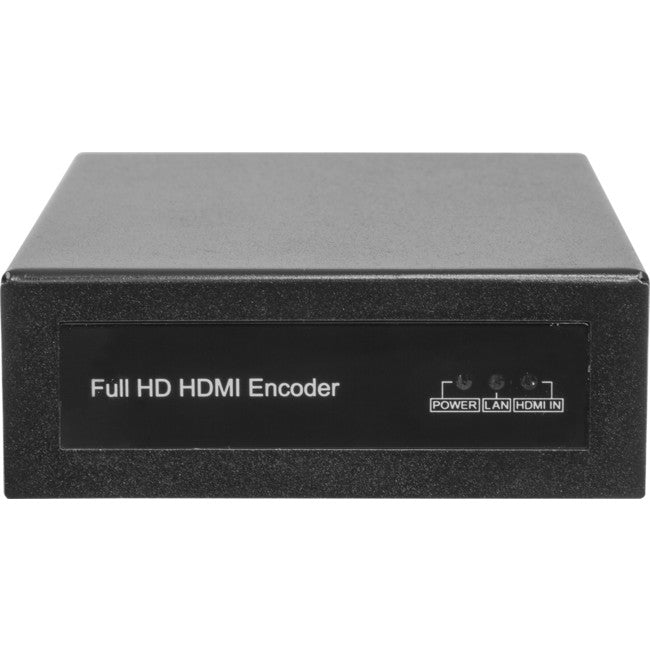

HE01 H.264 HDMI ENCODER FOR IP TV HD ENCODING PRO2 SX-HE01

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

HE01 H.264 HD HDMI encoder is the ideal tool to convert your HDMI resource into IP sharing resource. Ideal for Multimedia display walls, Video conferences, IP TV projects etc.

• Supports H.264 encoding
• Supports UDP, HTTP, RTSP,RTMP, Onvif protocol
• Supports MPEG1 audio layer 2
• CBR/VBR rate: 16kbps-16Mbps
• 1000M network interface uses full duplex mode
• Supports upto 720p, 1080p@60Hz HD video input
• Supports image parameter settings
• WEB interface management authority
• Supports remote management in WAN(WEB)
• Supports resolution customized settings
• Supports one key to restore factory configuration

Wiring Diagram:

{tab FAQ}

Q1: I have changed the IP address of the encoder, but I forget what it is after the change.

A: HE01 default IP address is 192.168.1.168, and DHCP off, if you have already changed the IP address or enabled the DHCP, you can find it via ONVIF device manager, look forthe devide name Xencoder. You can download the software fromhere: https://sourceforge.net/projects/onvifdm/

Q2: How to update the firmware?

A: Login to the HE01, Go to System/Upgrade, select the RAR file, no need to extract, click upload.

Q3: Does the HE01 support RTMPS protocol?

A: The latest firmware V2.88 supports RTMPS, if your unitfirmware is older than this, you can download the firmware from Download section and upgrade your unit. All our currentstocks are up to date since June 2019.

Q4: How to enable RTMPS in Version 2.88?

A: Go to Encoder, under main stream, enable RTMP/RTSP PUSH URL, and put the RTMPS URL in, reboot the unit.
