GDCSW GOAP Z-WAVE DRY CONTACT SWITCH SINGLE QUBINO DHS-LIT-SWW-QUB-01D

GOAP Z-Wave Single Switch Dry Contact

Quick Overview

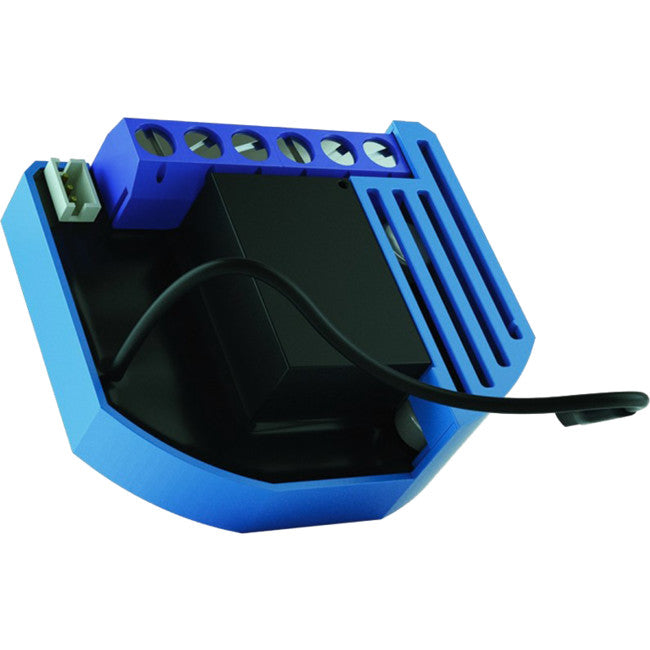

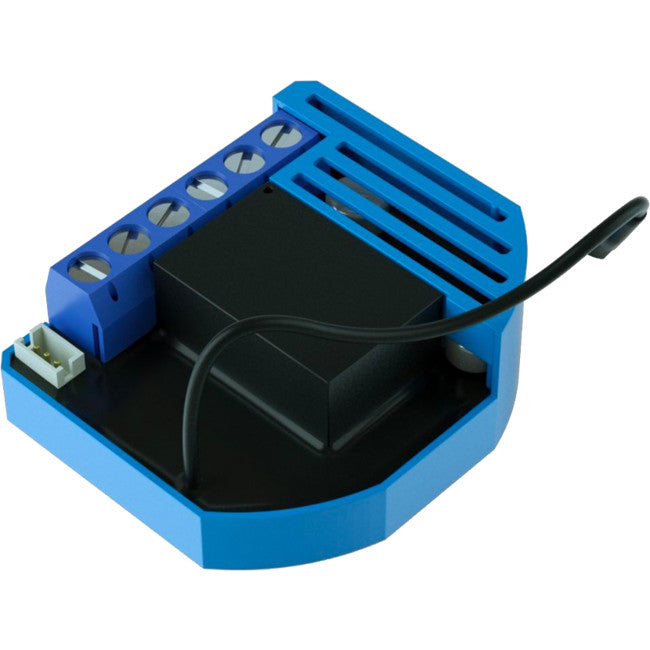

The QUBINO 1D Relay Plus (by GOAP) is a single channel wireless Z-Wave relay with voltage-free (dry) contacts capable of controlling electrical devices such as lights, fans, ovens, washing machines, irons, power sockets, garage doors, electric radiators, water heaters and similar. up to 10A. It connects wirelessly with your Z-Wave controller and fits easily into an existing light switch, enabling you to wirelessly control appliances. The smart switching module also works as a repeater to improve range and stability of your Z-wave network. The module can be controlled either through Z-wave network or through the wall switch manually.
This module is designed to be mounted behind a traditional wall switch.Module measures power consumption of load and supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-Wave network.

Supported switches

Module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Product Details

  • Compatible with any Z-Wave Controller.

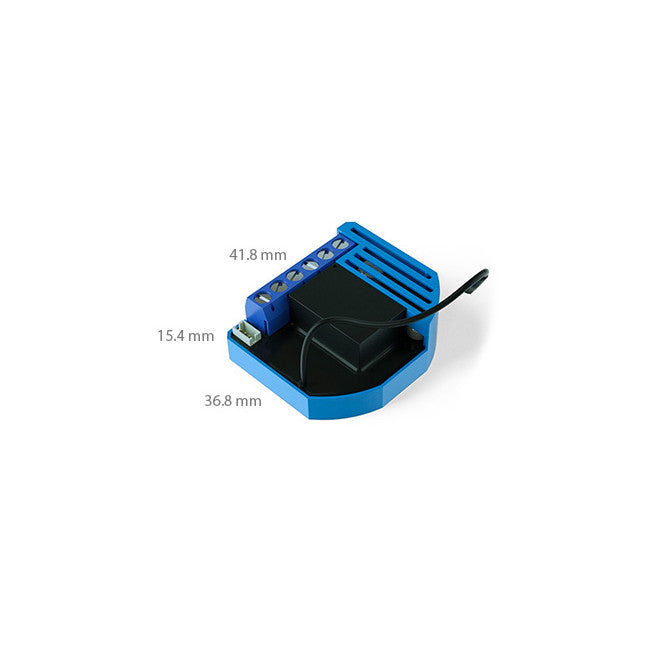

  • Dimensions (W x H x D) 41,8 x 36,8 x 15,4mm
  • Power monitoring accuracy P=5-50W, +/-3W; P?50W, +/-3%;
  • Digital temperature sensor range (sensor must be ordered separately) -50 ~ 125°C
  • Support for the connection of digital temperature sensor (optional part)
  • 2 binary inputs offer the option to connect additionaldevices such as sensors, switches/push buttons, etc, ?
  • On/Off Flush Relay Switch with dry contactscapable of operating a load of up to 10A.
  • Dry (Voltage-free) Contacts

    Requires 3-wire (including neutral) installation - further information is in our 2-wire/3-wire guide

    Works with AC or DC power supply (110-230V AC or 24-30V DC). Extra switch inputs for controlling additional associated devices or 2-way installations (see note)

    Extra Features

    The GOAP Flush 1D Relay includes extra features to make it even more useful in your home automation system.

    Temperature Sensor

    Using an optional temperature sensor, the GOAP Relay can report the temperature to your system - you can use this to control heating, blinds and ventilation systems.

    Binary Switch and Sensor Input

    The Relay can be used with up to three external switches enabling it to control other Z-Wave devices by Association or Trigger Scenes in the main controller.

    Strengthens Z-Wave Connectivity

    The smart relay module has been designed to work as a Z-Wave repeater, thereby providing you the flexibility to extend the range of your Z-Wave network.

    The GOAP Flush 1D Relay Plus isZ-Wave Plus Certified. Z-Wave Plus (5th Generation Z-Wave) offers a lot of new features including increased range, extended battery life and Over The Air upgrading (OTA). Takea look at our "What is Z-Wave Plus" guide for moreinformation.

    Configuring Z-Wave Devices:

    Z-Wave devices often have several configurable parameterswhich you can change using your Vera’s user interface.These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manualswitch connected to a Z-Wave light controller.

    Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in theManualssection.

    Note!

    Do not connect the module to loads exceeding recommended values. Connect the module only in accordance to the manual and diagrams below. Use only qualified electrician!

    Technical Specifications

    Product Name
    Flush 1 relay
    Powered by
    24V DC or 240V AC
    Operation Range
    30m
    Max Load
    2300W (230VAC)
    Radio frequency
    921.42 MHz (AU/NZ Z-Wave)
    Power Consumption
    0,4W
    Operation temperature
    -10 -+40 C*
    Measured temperature range 0,50 C (within 0oC - 40oCrange) (optional sensor)
    Temperature measuring accuracy
    0,5 C
    Housing
    ABS
    Dimensions (W x H x D)
    41,8 x 36,8 x 15,4mm
