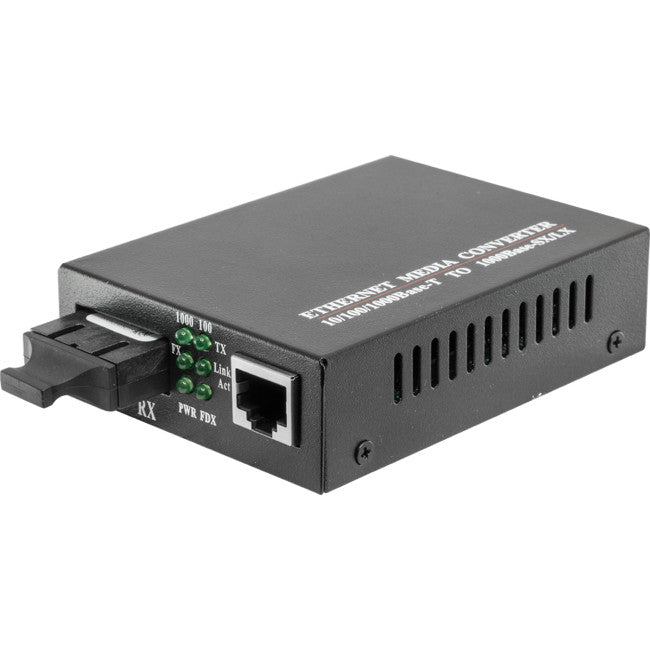

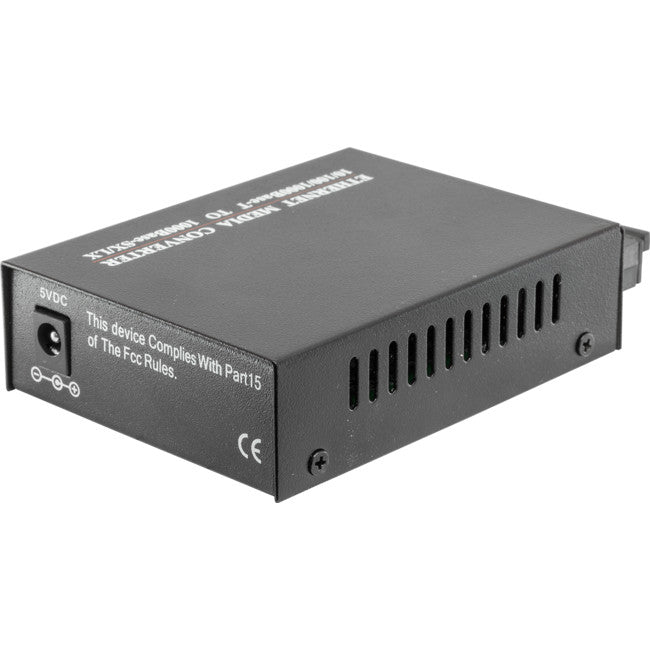

FMC1GBSM20KSC GIGABIT FIBRE MEDIA CONVERTER SM DUAL FIBRE SC 20KM AOM-3100-S20EA

FMC1GBSM20KSC GIGABIT FIBRE MEDIA CONVERTER SM DUAL FIBRE SC 20KM AOM-3100-S20EA

$59.00

Features

Overview

FMC1GBSM20KSC 10/ 100/ 1000M Fibre Media Converter transmits the signal from a twist-pair 10/ 100/ 1000Base-TX cable to 1000 Base-FX fibre optic cable, extends data transmission distance from 100m via copper cables to 20km by fiber optic cable.

Features

10 /100/ 1000Mbps auto-sensed, easily upgrade
Full-duplex and half-duplex auto-sensed
MDI/ MDI-X Auto Negotiation
10/ 100/ 1000Mbps store-and-forward
1000Mbps cut-through transmission
Packet size up to 1518bytes
Support 9K Jumbo Frame
Supporting VLAN/ VoIP/ QoS packets
Support flow control and reduce broadcast packets
Supporting STP to form a redundant network
Extremely low power consumption, low heat, stable performance
Providing Desktop, Wall-mounted, Chassis, DIN-rail installation

Application

Network Communication
FTTH/ FTTB/ FTTx
ISP Backhaul Networking

Available Fibre Media Converters

Code	Model	Ports	Speed	Mode	Dual Fibre	Connector	Distance
09051505	FMC100SM20KSC	1	100MB	SM	Y	SC	20KM
09051507	FMC1GBSM20KSC	1	1GB	SM	Y	SC	20KM

09051512	FMC1GBMM550MSC2	1	1GB	MM	Y	SC	550M

09051550	4P100SM20KSC	4	100MB	SM	Y	SC	20KM
09051552	4P1GBSM20KSC	4	1GB	SM	Y	SC	20KM

09051522	FMC1GBSFP	1	1GB	Requires SFP Module, can be SM/MM and LC/SC etc.

Specifications

Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Data Rate	Copper: 10/ 100/ 1000M; Fibre: 1.25G
Flow control	Full duplex: flow control; Half duplex: back pressure
Copper Port	Numbers of Copper Port: 1 Connector: RJ45 Connector Distance:100m
Fibre Port	Numbers of Fibre port: 1 Connector: SC Wavelength:SMF: 1310nm Distance: SMF 20Km
LED indicators	PWR (power supply) FL/A (optical link/action) FDX (FX full duplex) TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs) 1000 (100M transmission rate of twisted pairs)
Power Supply	Working power: DC5V 1A ( SUPPLY INCLUDED )
Power consumption	<3W
Environment	Operating temperature: -10-55°C Storage Temperature: -40-85°C Relative Humidity: 5% to 95% non-condensing
Dimensions	External: 94mm x 70mm x 26mm Internal: 140mm x 110mm x 30mm
Gross Weight	External: 0.4 Kg Internal: 0.5 Kg
