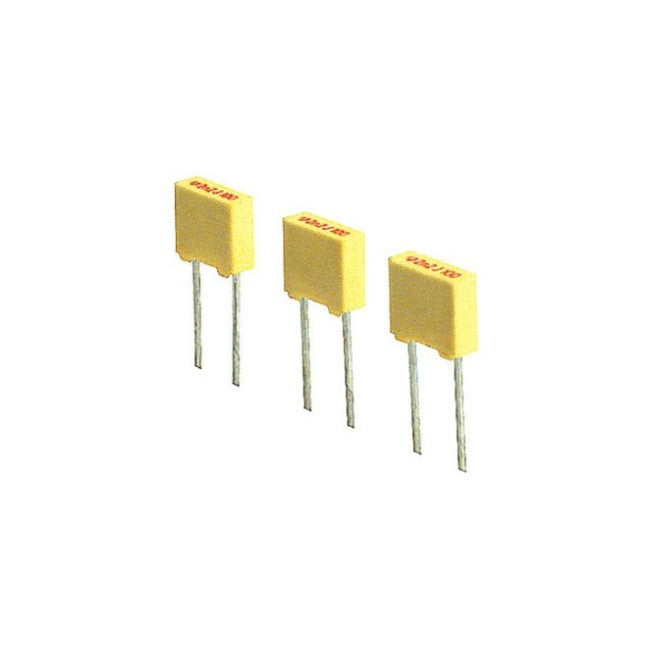

FKS2.0033-100 .0033 100V POLYESTER CAPACITOR FKS2 06600307

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

- Voltage: 100V DC (63V AC).
- Temperature Range: -55°C ~ +100°C
- Capacitance Tolerance: ±20%.
- Insulation Resistance @ +20°C: 3 3 x 104M
- Dielectric: Polyethylene terephthalate film
- Capacitor electrodes: Metal foil
- Encapsulation: Flame-retardent plastic case, UL94 V-O, with epoxy resin seal. Reservoir and decoupling capacitors for high speed digital circuits. Low lnduction and low damping, favorable resonant frequency because of high electrode contact reliability.
- .0033MF 100VDC
- (WHD): 7.2 x 6.5 x 2.5mm
