REASON-X
REASONS TO BE CHEERFUL...1, 2, 3....

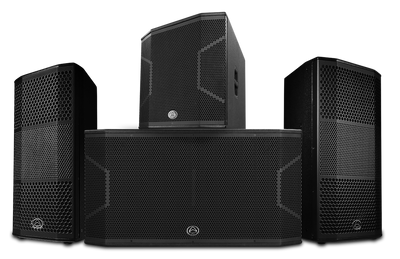

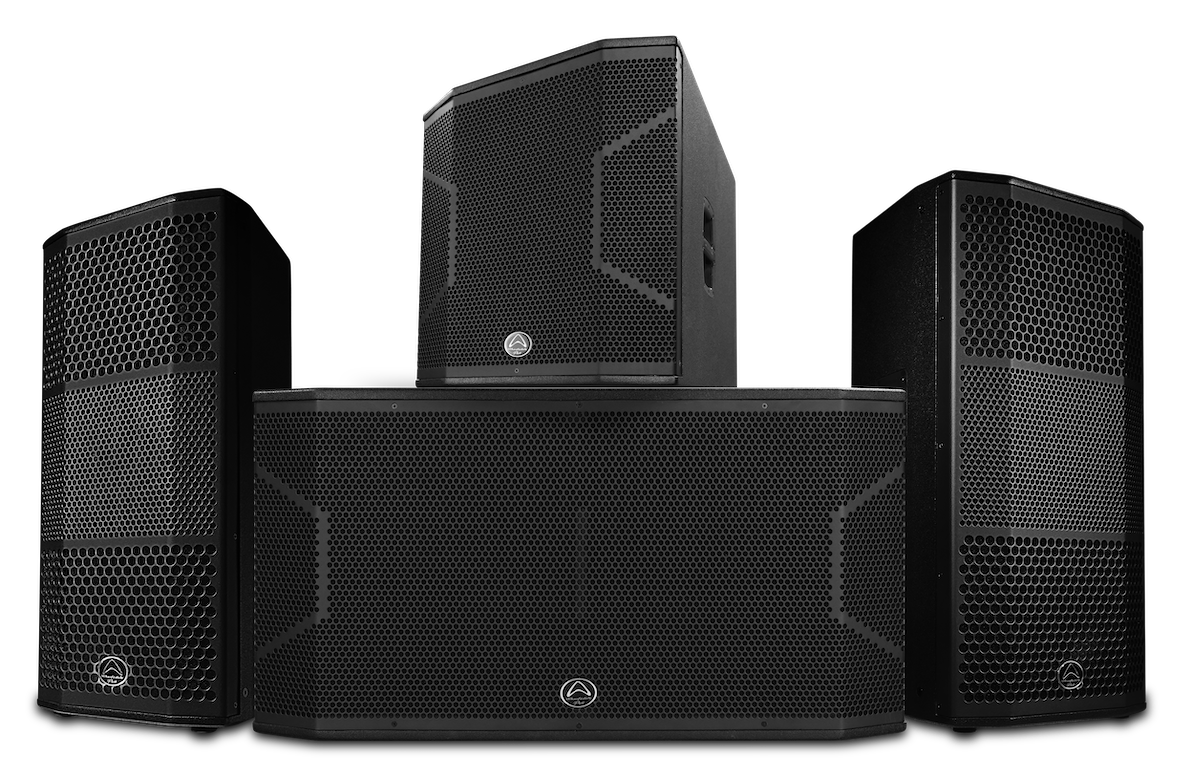

3-way passive PA with huge 18″ subwoofers

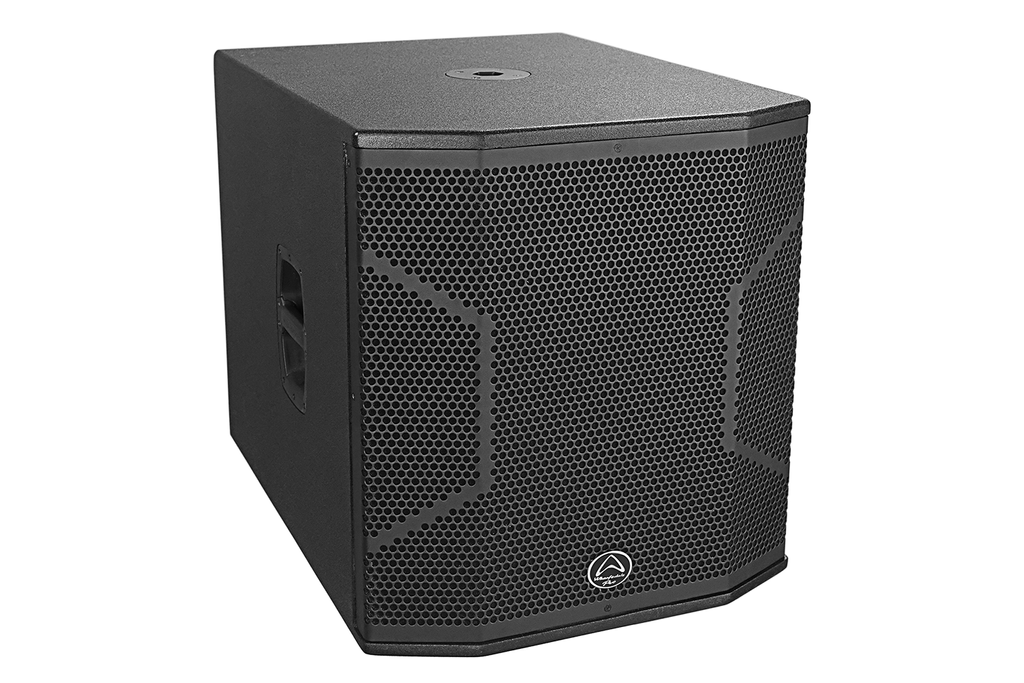

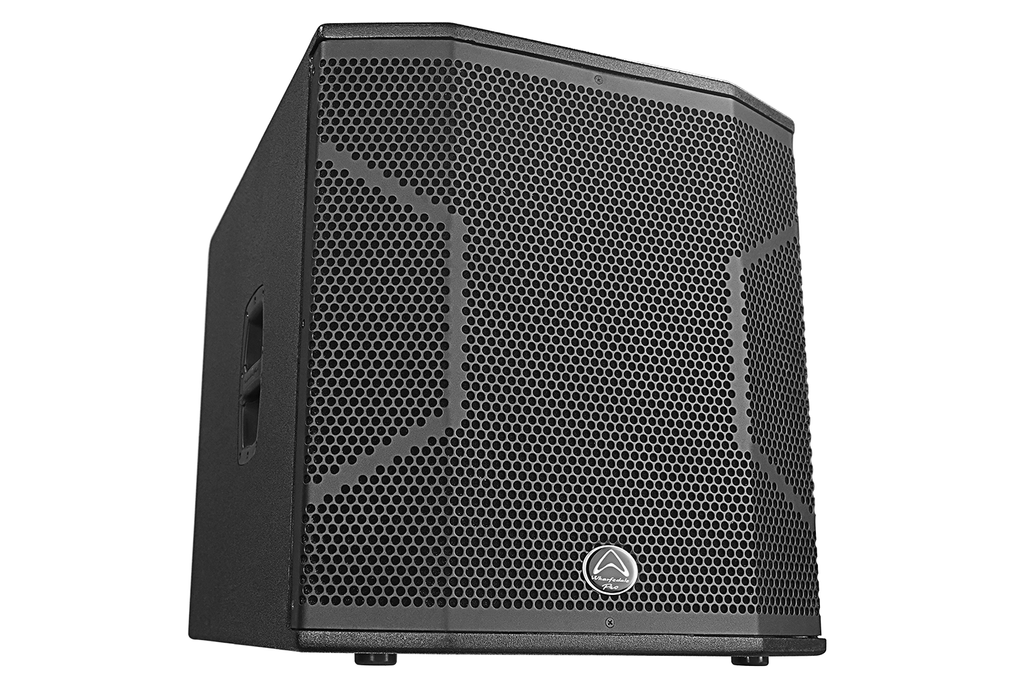

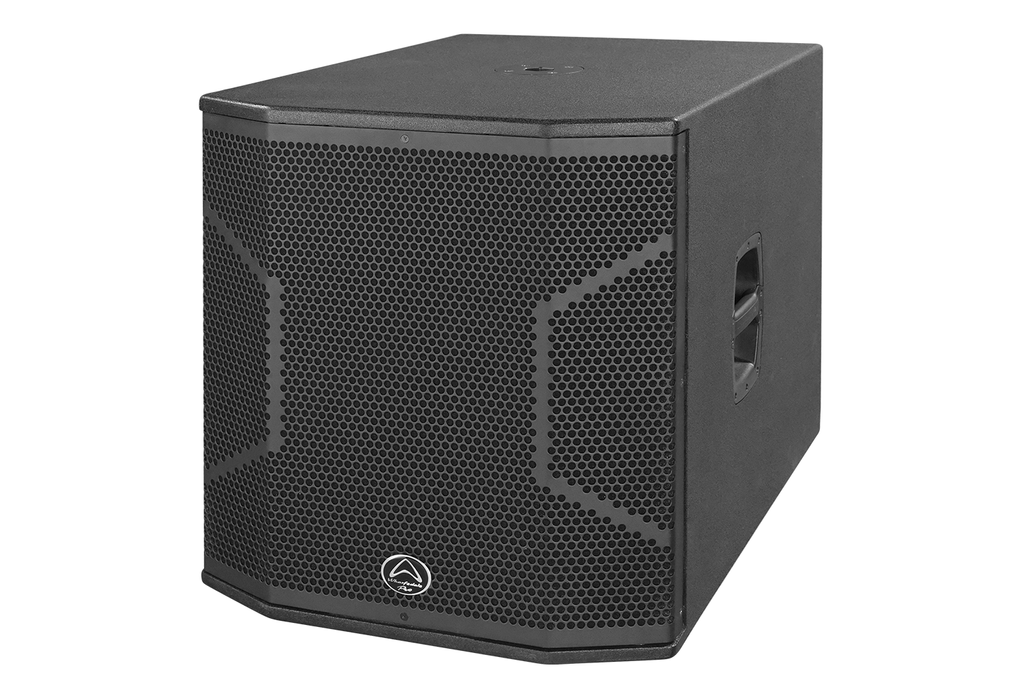

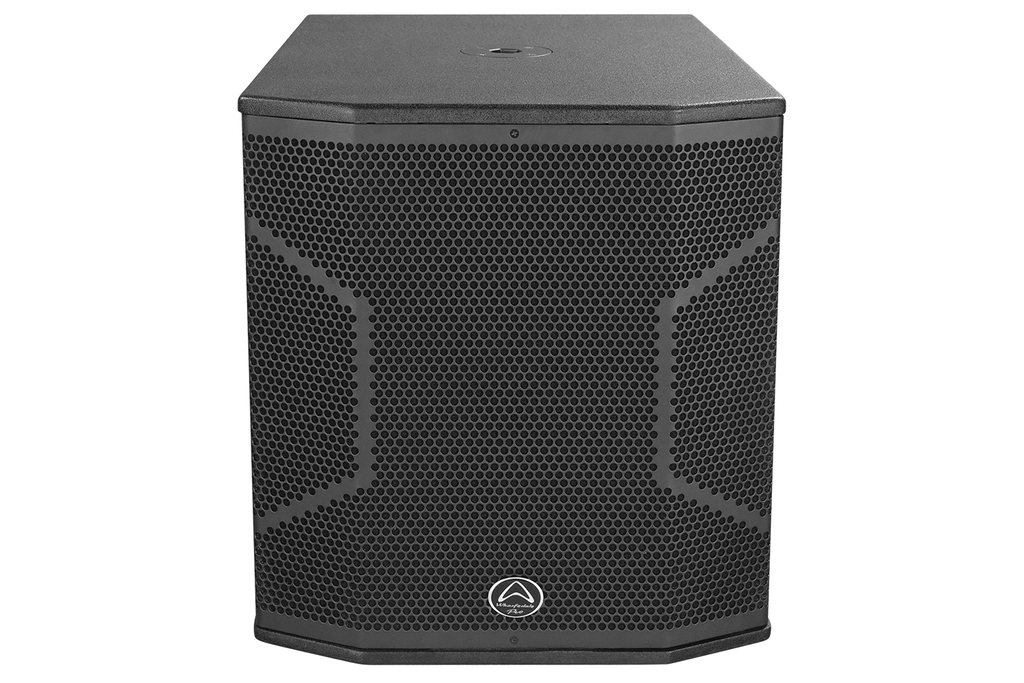

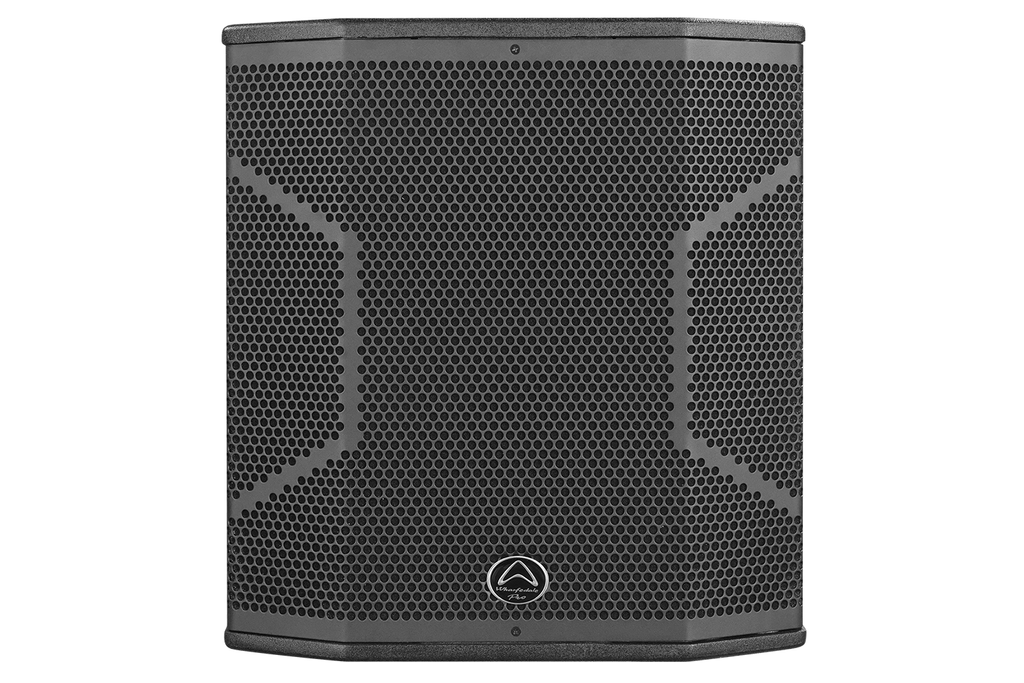

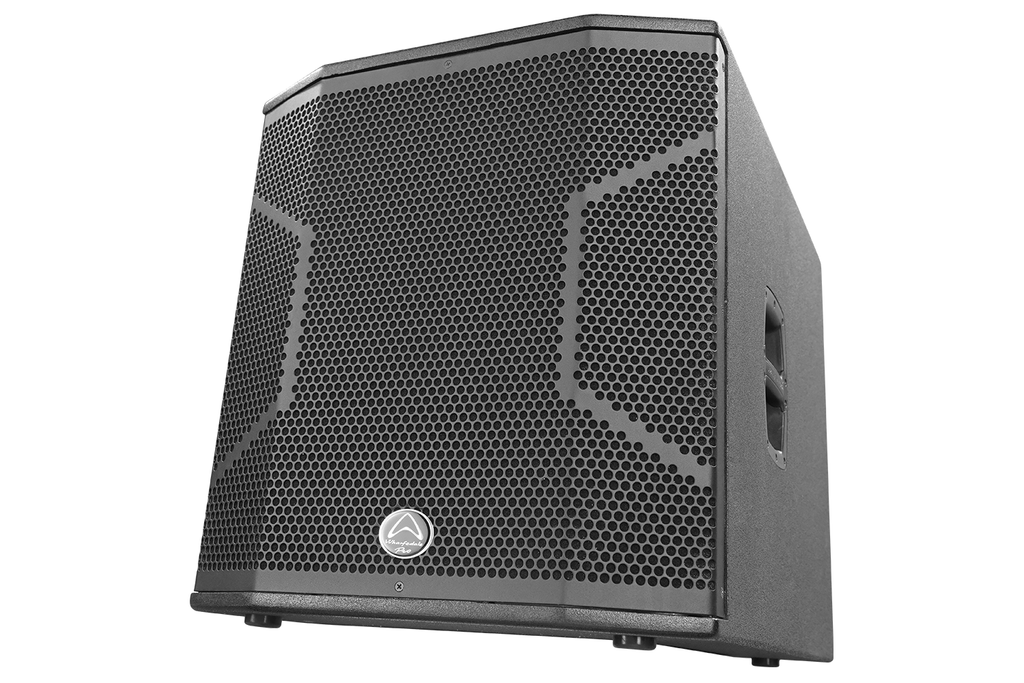

Reason-X18B

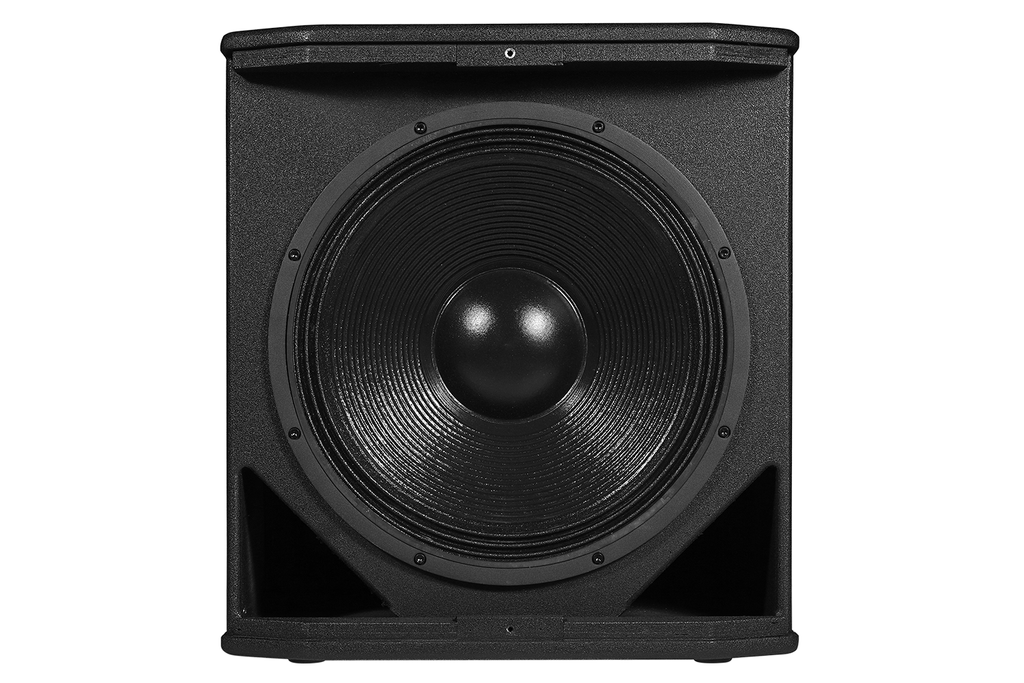

NEW SUBWOOFER DRIVER
The driver inside the Reason-X subwoofer has some very special features.
∮102.6 diameter voice coil.
(Thats OVER 4.0″ but we say 4.0″ because of number rounding)
Double-layer spider bonding.
Updated mute glue is used. This bonding can eliminate brittle cracking and reduces harmonic distortion.
112 g Membrane.
The Reason-X subwoofer driver has a heavier membrane which can withstand more power without breaking.
31 mm voice coil cavity.
A larger internal cavity for the coil windings allows Reason-X to have lower response by 5 Hz.
6.2 ohm impedance.
The impedance peak is higher in the Reason-X driver at 35 Hz. This results in superior low end strength.
Z38
The full range models (X12 and X15) feature an all-new Polyethylene flat diaphragm neodymium HF. This highly engineered Z38 HF compression driver brings extreme HF clarity.
Enormous cooling fins disperse the heat generated and the unique 1.5 inch ring-shaped polyethylene flat diaphragm delivers a precious feeling of space and air to high frequencies.
Advanced HF compression driver technology which deliveries breathtaking results.
ROTATABLE WAVEGUIDE
A handy feature is the rotatable waveguide which allows Reason-X full range models to be used in the vertical or horizontal plane.
100° x 70°
OR
70° x 100° – the Horizontal and Vertical dispersion can easily be changed.
3-WAY DESIGN
With dedicated drivers for each of the main bandwidths, 3-way systems bring enhanced frequency definition to the listening experience.
Each driver focused solely on its optimum frequency range.
A big picture!
Enjoy the 3-way space and definition !
|
Model Name |
Reason-X18B |
|
System Type |
Passive |
|
Configuration |
Single Subwoofer |
|
Frequency Response (+/-3 dB) |
35-1 Khz |
|
Frequency Range (-10 dB) |
30-800 HZ |
|
Sensitivity 2.83 V / 1 Meter |
103 dB |
|
Calculated Maximum SPL @1 Meter |
139 dB |
|
System Rated Impedance |
8 Ω |
|
Low Frequency Transducer |
|
|
Size |
470 mm / 18” |
|
Voice Coil Size |
102 mm / 4” |
|
LF Magnet Material |
ferrite |
|
LF Frame Material |
Aluminium |
|
Rated Impedance |
8 Ω |
|
LF Power re:AES2-2012 |
1000 W |
|
System AES (RMS) Power (W) |
1000 W |
|
System Programme Power (W) |
2000 W |
|
System Peak Power (W) |
4000 W |
|
Crossover Frequency |
|
|

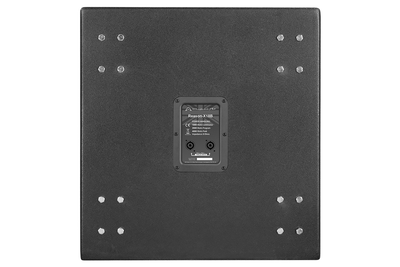

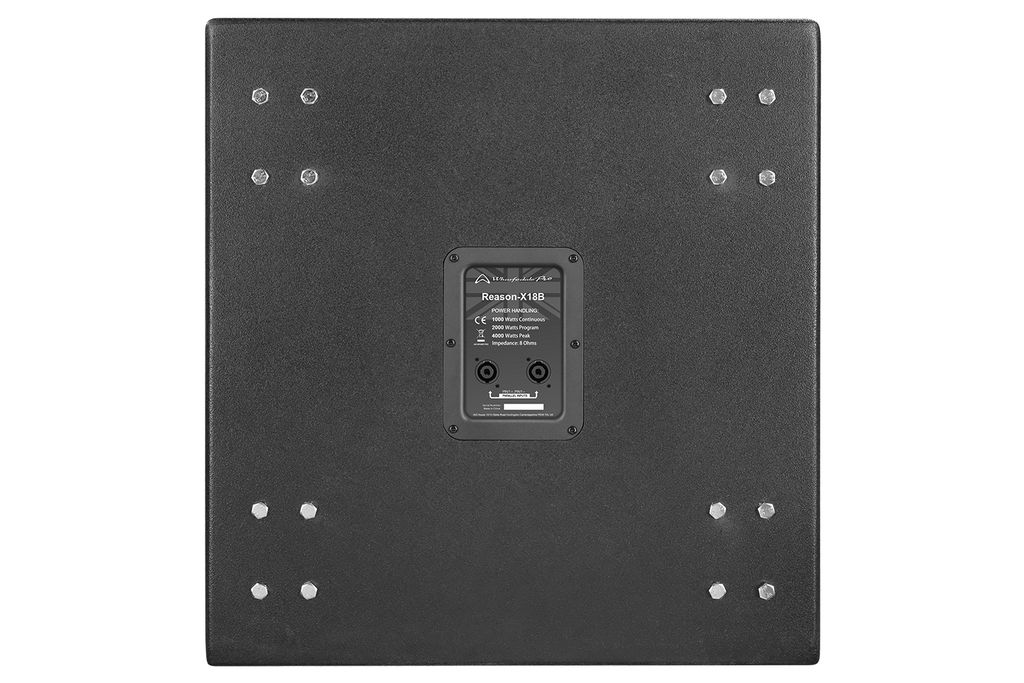

Input Connector |
2 x speakON compatible |
|
Rigging |
No |
|
Handles |
2 on Sides |
|
Enclosure |
35 mm pole socket |
|
Cabinet Type |
square |
|
Enclosure Material and finish |
18 mm plywood |
|
Colour Options |
Black paint |
|
Grille Material & Finish |
Steel |
|
Dimensions – Unpacked (mm / inches): |
|
|
Height |
600 mm / 23.6” |
|
Width Front |
560 mm / 22.0” |
|
Width Rear |
560 mm / 22.0” |
|
Depth |
756 mm / 29.8” |
|
Dimensions – Packed (mm / inches): |
|
|
Height |
670 mm / 26.4” |
|
Width Front |
829 mm / 32.6” |
|
Width Rear |
829 mm / 32.6” |
|
Depth |
633 mm / 24.9” |
|
Weight |
|
|
Net Weight |
45.5 kg / 100.1 lbs |
|
Gross Weight |
55.2 kg / 121.4 lbs |
-
