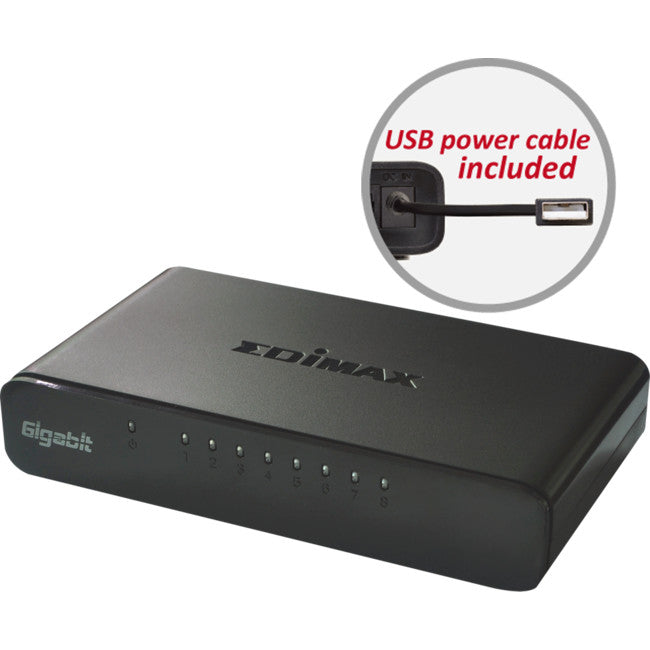

ES5800G 8 PORT GIGA DESKTOP SWITCH OPTIONAL USB POWER EDIMAX ES-5800G V3

8-Port Gigabit Desktop Switch with USB Power

  • Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
  • Supports auto MDI/MDI-X crossover detecting and auto correction
  • Supports full and half duplex for 10/100Mbps, and fullduplex for 1000Mbps
  • Wire-speed packet filtering and forwarding rate
  • Store-and-forward architecture filters fragment & CRC error packets
  • Supports jumbo frames up to 9K bytes
  • Supports IEEE802.3az energy efficient Ethernet function
  • Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)

{tab Details}

The ES-5500G V3 is a 10/100/1000 Mbps Gigabit Desktop unmanaged switch designed to enhance networkperformance in a compact form factor, and with outstanding performance and high efficiency. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivityfor the SOHO environment.

The ES-5500G V3 with plastic housing offers a cost-effective Gigabit Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs. The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved.

IEEE Energy Efficient Ethernet(EEE) Compliance
The Switch ES-5500G V3 offers environmental efficiency with Fast Ethernet speeds critical for next-generation network applications. To comply with the IEEE802.3az standard, the Switch ES-5500G V3 provides power saving functions to reduce energy consumption to help business savecost.

Edimax 5-Port Gigabit Desktop Switch ES-5500G V3_power_saving.png

Inactive Link Detection: When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.

Edimax 5-Port Gigabit Desktop Switch ES-3305P_V2_ES-5500_V3_Power_Saving-inactive_link_detection.png

Cable Length Detection: Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power itconsumes.

Edimax 5-Port Gigabit Desktop Switch ES-3305P_V2_ES-5500_V3_Power_Saving-cable_length_detection.png


Supports High-Speed Networkingand Jumbo Frames
The ES-5500G V3 is an excellent solution to expand your Gigabit network. With Gigabit speed, the ES-5500G V3 gives high flexibility and high bandwidth connectivity to servers,workstations and other attached devices. It enables you to save time when transferring large files. In addition, it also supports Jumbo Frames 9K to improve network utilizationin large files transfer.

Edimax 5-Port Gigabit Desktop Switch ES-5500G V3_non-blocking_full-duplex.png
Edimax 5-Port Gigabit Desktop Switch ES-5500G V3_non-blocking_full-duplex.png


Supports Auto-Negotiation
Every port of the ES-5500G V3 can automatically distinguish the connected network devices are running at 10Mbps, 100Mbps and 1000Mbps for Half/Full-Duplex mode . TheES-5500G V3 can adjust the speed and mode accordingly.

Edimax 5-Port Gigabit Desktop Switch ES-5500G_V3_auto-negotiation.png


Easy to Use
The ES-5500G V3 is plug-and-play and supports all kind of network protocols to make installation and network management easy and fast. LED indicators provide a quick andeasy way to read port and switch information.

Edimax 5-Port Gigabit Desktop Switch ES-5500G V3_Plug&Play.png


Optional Power Supply
The ES-5500G V3 can be powered either through a PC’ s or any other devices’ USB port to eliminate the needfor an additional power outlet, or through the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)

Edimax 5-Port Gigabit Desktop Switch ES-5500G V3_optional_power_supply_by_USB.png


APPLICATION DIAGRAM

  • Connect the ES-5500G V3 to your router or cable/xDSL modem.
  • Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-5500G V3.

Edimax 5-Port Gigabit Desktop Switch ES-5500G V3 application diagram


{tab Specifications}

Standard

Features

Filtering / Forwarding Rates

•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3ab 1000BASE-TX
•IEEE 802.3x Flow Control
•IEEE 802.3az Energy Efficient Ethernet

•RJ-45 Port: 8
•MAC Address: 2K
•Buffer Memory: 128K
•Jumbo Frame: 9K
•Transmission Method: Store and Forward

•1000Mbps Port – 1,488,000pps•100Mbps Port – 148,800pps
•10Mbps Port – 14,880pps

Transmission Media

LED Indicators

Power Requirement

•10BASE-T Cat. 3, 4, 5 UTP/STP
•100BASE-TX Cat. 5 UTP/STP
•1000BASE-T Cat. 5E UTP/STP

•Per Port: Link/Act
•Per Unit: Power

•DC5V 1A

Temperature

Humidity

Power Consumption

•Operating: 0 to 40°C
•Storage: -20 to 70°C

•Operating: 10 to 90% RH (Non-condensing)
•Storage: 5 to 90% RH (Non-condensing)

•2 Watts (Max)

Dimensions

Weight

Certifications

•98× 71 × 25.5 mm (L x W xH)
•112 g

•CE
•FCC Class B

*Maximum performance, actual data rates, and coveragewill vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to changewithout notice.
