DSB38F SUPER BROADBAND AMPLIFIER KINGRAY FOX APP. # F30977 KINGRAY DSB38F

DSB38F SUPER BROADBAND AMPLIFIER KINGRAY FOX APP. # F30977 KINGRAY DSB38F

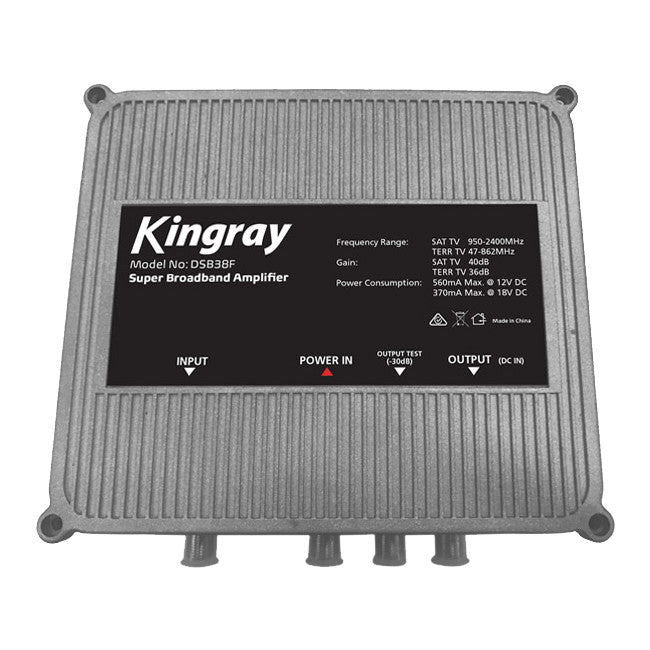

DSB38F SUPER BROADBAND AMPLIFIER - KINGRAY

Optimised for digital TV signal amplification.

The Kingray DSB38F is a high gain Free-to-Air & Satellite distribution amplifier for use in SMATV applications. It features a combined single input & single output connector, with adjustable gain and equalisation controls, as well as input attenuators.

Specifications;

  • Frequency Range Terrestrial FTA 47-862 MHz
  • Frequency Range Terrestrial Satellite 950-2400 MHz
  • Input/Outputs 1 x Input / 1 x Outputs
  • Test Port -30dB
  • Maximum Gain
    • FTA 36dB
    • Satellite 41dB Max.
  • Input 105dB Min. Input 70dB
  • Return Loss >10dB
  • Gain Control 10dB FTA
  • Equalisation 10dB Satellite Equalisation 10dB Satellite Input Attenuator -10dB FTA Input Attenuator -10dB
  • Maximum Output Level
    • FTA - IMB3 = 60dB (DIN450004B) 120dB
    • Satellite - IMB3 = 35dB (EN50083-3) 122dB
  • Supply Voltage 12V or 18V DC
  • Max. Current Consumption 560mA @ 12V DC 370mA @ 18V DC
  • Powering Options
    • Option 1 Locally via a PSK124F or PSK18F
    • Option 2 Remotely via the RF input (800mA max.)
  • Dimensions in mm 183 (L) x 150 (W) x 52 (H)
  • Weight 880g

CAUTION: This amplifier contains devices that are sensitive to Electrostatic Discharge (ESD).
