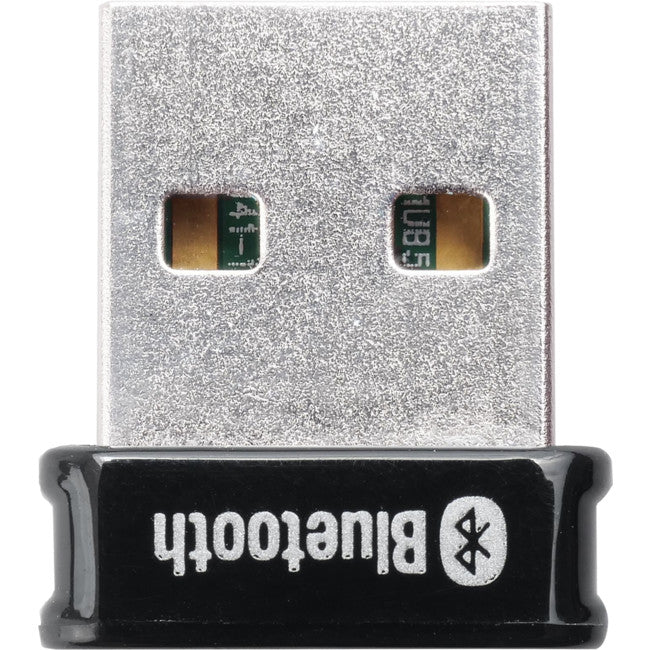

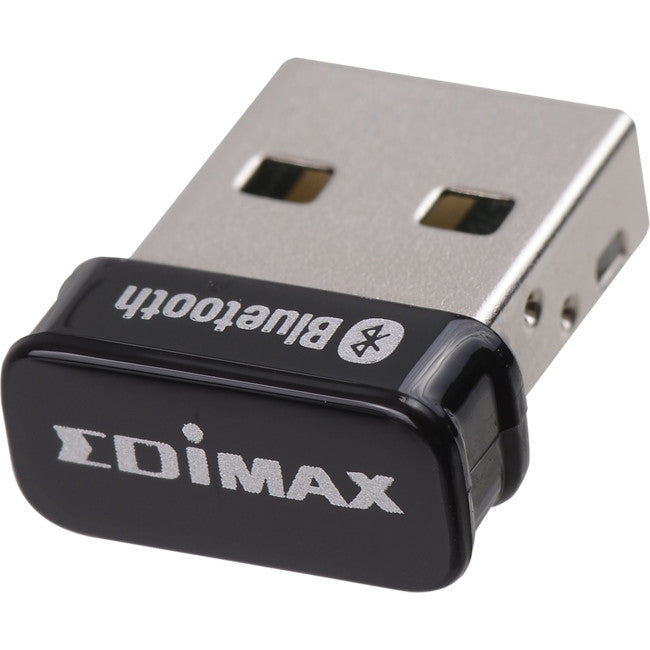

BT8500 NANO BLUETOOTH 5.0 USB ADAPTER EDIMAX NWE-BT-8500

BQB Certified Bluetooth 5.0 Nano USB Adapter

Nano Size World's Smallest No matter if you are adding Bluetooth 5 to your desktop or laptop, you can expect to plug and forget, thanks to its ultra-small nano-sized housing.

Bluetooth 5.0 The Latest Performance StandardSpeed, distance and connectivity set the new Bluetooth 5.0 apart from the older generation. Gain faster transfer speeds of up to 3 times (3Mbps with Enhanced Data Rate) and extended distance of up to 4 times that of Bluetooth 4.0 (40 Meters Indoor).

Make it Wireless | Connect Your Devices There are a lot of products with Bluetooth built-in, yet youcan't fully utilize those products because your machine doesnot have Bluetooth connectivity. You can now connect Bluetooth enabled devices such as controllers, headphones, speakers, keyboards and mouse, printers, smartphones, tablets and more.

Bluetooth BLE | Keeping the Energy Consumption Low Supports Bluetooth Low Energy (BLE), meaning that your devices are connected with optimal energy consumption. Real

Bluetooth 5.0 | BQB CertifiedThe BT-8500 Bluetooth 5.0 Nano USB Adapter is qualified with BQB certification. The Bluetooth logo is onlyavailable for products that passed the Bluetooth qualification process and earned the BQB certification.

  • ?Bluetooth 5.0 BQB Certified+ EDR : Max speed up to 3Mbps
  • Single-chip Bluetooth 5 controller, combines a BT Protocol Stack (LM, LL, L2CAP, GATT, RFCOMM, SPP, and LE), BT Baseband, modem, and BT RF in a single chip
  • Supports dual mode (BR/EDR + LE Controllers), compatible with previous versions, including v2.1 + LE
  • Supports Bluetooth Low Energy (BLE) - multiple Low Energy states
  • Supports Bluetooth classic (BDR/EDR)
  • Supports Windows 8.1/10, Linux: Kernel 2.6.32 - 5.3 orabove (support Fedora & Ubuntu only)



{tab Specifications}

HARDWARE
Interface
•1 x USB 2.0 Type A
Antenna
•Internal PiFa Antennas x 1
Dimensions
•7.1 (H) x 14.9 (W) x 17.4 (D) mm
Weight
•2g
BLUETOOTH
Standards
•Bluetooth 5 specification compliant
Frequency Band
•2402~2480MHz
Maximum Data Speed
•3Mbps (class BT-BR/EDR) : 2Mbps(BLE)
Output Power
•8dB (max.)
Receiver Sensitivity
94dBm (2Mbps EDR)
87dBm (3Mbps EDR)
98dBm (BLE)
06dBm (125K BLE long range)
OTHERS
Certification
•CE, FCC, NCC, BSMI, BQB
Environmental
Condition
•Operating Temperature: 32~104°F (0~40°C)
•Storage Temperature: -4~140°F (-20~60°C)
•Operating Humidity: 10~90% (NonCondensing)
•Storage Humidity: Max. 95% (NonCondensing)
System Requirement
•Windows 8.1/10 32bit/64bit or above
•Linux: Kernel 2.6.32 - 5.3 or above (support Fedora & Ubuntu only)
Installation
•Easy setupwizard with auto run configuration
Package Content
•Bluetooth 5.0 USB Adapter
•Quick Installation Guide
