UCDX15 15 IN 1 TRIPPLE DISPLAY USB-C DOCK MBEAT 09050894

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

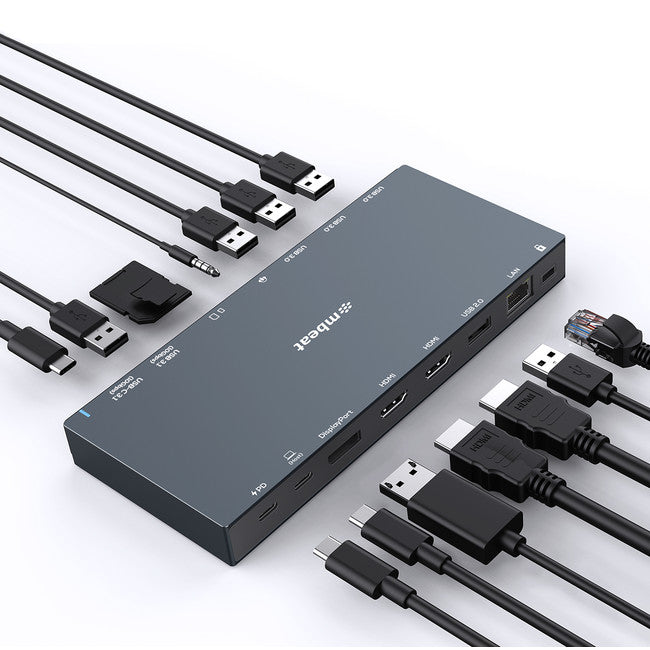

Check out the mbeat 15-in-1 Triple Display USB-C Docking Station – the perfect all-in-one USB-C solution to unleash your laptop’s maximum potential! With blazing fast 10Gbps data transfer, triple HD video out, 100W PD and Gigabit Ethernet, as well as premium features such as 4 more USB ports, SD/MicroSD card reader, anodised aluminium casing and a Kensington lock slot for added security, you won’t want to miss out on this one!

Features

All in One USB-C Solution
15-in-1 USB-C dock with a full array of ports and connections in a sleek and durable anodised aluminium finish, all to unleash your USB-C laptop’s maximum potential.

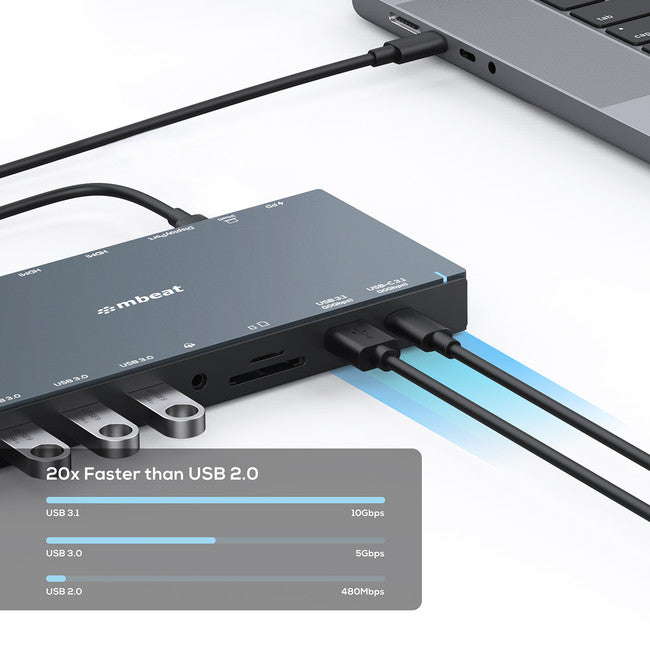

Blazing Fast Data Transfer
Featuring 10Gbps USB 3.1 Gen 2 data ports in both USB-C and A configurations, ideal for high-speed external storage devices such as NVMe SSDs; don’t compromise on transfer speeds with slower hubs.

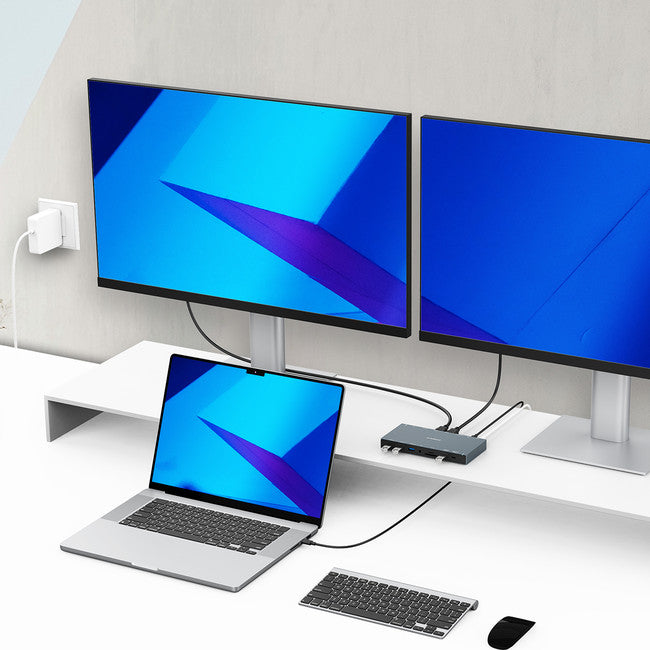

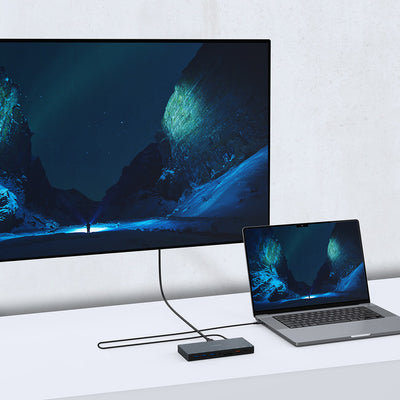

Triple HD Video Out
Featuring HDMI 2.0 (4K@60Hz), HDMI 1.4 (4K@30Hz) and DisplayPort 1.4 (4K@60Hz) for unparalleled video connectivity. Extend/duplicate your laptop display to external HD monitors, ideal for multiple screens or presentations.

100W PD and Gigabit Ethernet
High specifications to drive your productivity with lightning-fast pass-through charging and network transfer speeds.

Additional Premium Features
4 more USB ports (3.0×3, 2.0×1), SD/MicroSD card reader, 100cm long data cable, anodised aluminium casing and a Kensington lock slot for added security

Specifications

• USB-C Host: 1 × USB-C 3.1 Gen 2 full function port

• HDMI (1):1 × HDMI 2.0 port, supports resolution up to4K/60Hz

• HDMI (2):1 × HDMI 1.4 port, supports resolution up to4K/30Hz

• DisplayPort:1 × DP 1.4 port, supports resolution up to4K/60Hz

• USB-C PD:1 × PD 3.0 port, supports Max. 20V/5A,100W Charging

• USB-C 3.1:1 × USB-C 3.1 Gen 2 port, supports 10Gbpsdata transfer, backward compatible with USB-C 3.1 Gen 1 / 3.0 / 2.0

• USB 3.0:3 × USB 3.0 port, supports 5Gbps data,backward compatible with USB 2.0

• USB 3.1:1 × USB 3.1 Gen 2 port, supports 10Gbps datatransfer, backward compatible with USB 3.1 Gen 1 / 3.0 / 2.0

• USB 2.0:1 × USB 2.0 port, supports 480Mbps datatransfer

• SD Card:1 × SD 4.0 slot, supports SDXC, SDHC, SD card

• MicroSD Card:1 × MicroSD 3.0 slot, supportsMicroSDXC, MicroSDHC, MicroSD card

• Networking:1 × RJ45 port, supports Gigabit Ethernetup to 10/100/1000Mbps

• Audio & Mic:1 × 3.5mm Jack, supports audio192KHz/16bit and microphone input

• Device Lock:1 × K-Slot, supports Kensington Lock •Cable Length: 100cm

Compatibility and Limitation:

• Product is compatible with WindowsTM 7, 8, 10, 11 and MacTM OS 10.12+

• WindowsTM OS supports MST, MacTM OS only supports SST in USB-C Display Alt mode, MacBookTM (2020) with M1 CPU currently only supports 1 external monitor display.

• Product does not include USB-C power supply.

Product and Package:

• Product Dimension: 18cm × 7.98cm × 1.9cm

• Product Weight: 0.31kg

• Package Dimension: 23.1cm × 12.5cm × 4.3cm

• Package Weight: 0.5kg

Package Contents:

• USB-C Dock

• 100cm USB-C to USB-C Cable

• Instruction Manual

• Product Registration Card
