ATSP38 38dB GAIN CATV AMPLIFIER 107dB?V OUTPUT FOX APP: F31092 AXING DA/ATSP38

ATSP38 38dB GAIN CATV AMPLIFIER FOXTEL: F31092

Features:

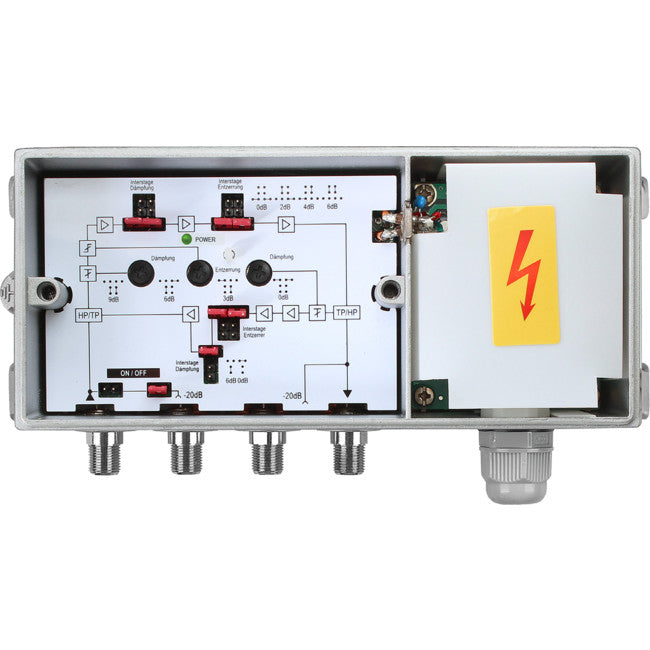

• Attenuation and equalisation adjustable

• Attenuation and equalisation pluggable with jumpers

• Solid all die-cast housing

• Test ports at the input and at the output

Specifications:

Forward Path

• Frequency range 85-1006MHz

• Gain 38dB

• Attenuation adjustable 0-15dB

• Attenuation pluggable with jumpers 0, 2, 4, 6 dB

• Equalisation adjustable 0-15dB

• Equalisation pluggable with jumpers 0, 2, 4, 6 dB

• Return Loss: 18dB

• Noise figure: 5.5dB

• Maximum output level CSO/CTB 107 dB’…V

Return Path

• Frequency range: 5-65MHz

• Gain: 30dB

• Attenuation adjustable: 0-15dB

• Attenuation pluggable with jumpers 0, 6 dB

• Equalisation pluggable with jumpers 0, 3, 6, 9 dB

• Noise figure: 7dB

Test port Input: - 20dB ’€ 2.5dB, Output: - 20dB ’€ 1.0dB
Power supply: 100-240V AC / 50-60Hz
Power consumption: 10W
Power indicator LED
Ambient temperature range: -20°C to +50°C
Earth terminal: Yes
Dimensions: 195x90x55mm
