Event Lighting SPLIT228RDM - 2 Inputs 8 Outputs DMX / RDM Splitter

Event Lighting SPLIT228RDM - 2 Inputs 8 Outputs DMX / RDM Splitter

$787.50

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

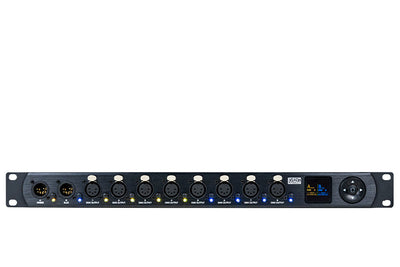

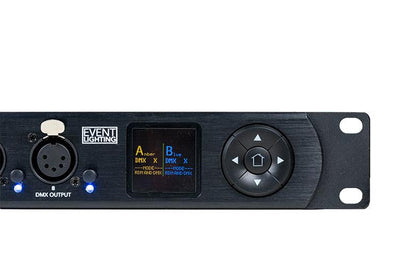

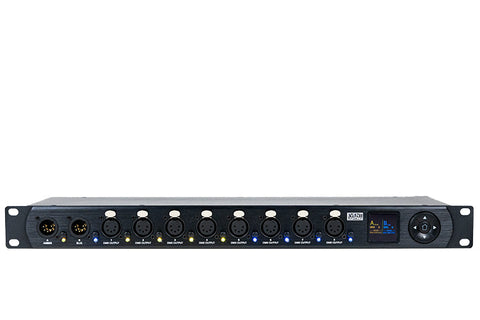

SPLIT228RDM is a rack mountable DMX and RDM splitter designed to optically insulate and distribute 2 DMX inputs into 8 outputs via 5-pin XLR connectors.

Technical Specifications

Protocol: DMX512 and RDM
Input Voltage: 100-240V AC 50/60Hz
Power Consumption: 5W

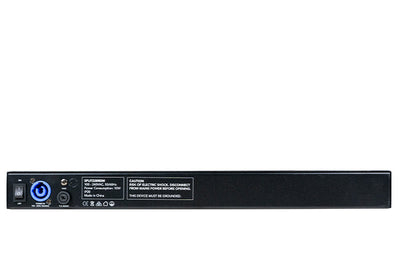

Power Connections: Powercon input

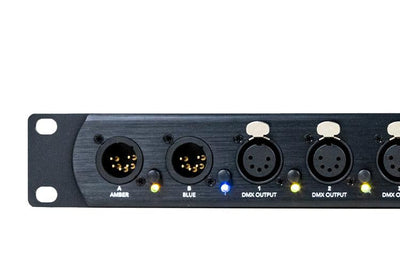

Connections: 2x 5-pin DMX input, 8x 5-pin DMX output
8x Optically Isolated Outputs
Fuse: F1AL/250V
Dimensions: 483x145x46 mm
Weight: 2kg

User Manual Download

Warranty: 3 years
