Support addition, subtraction, multiplication, division, and waveform calculation functions
You can observe the overall situation and details of the waveform
Can measure the phase difference between two signals of the same frequency
The state after AUTO can be set
With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output
With 34 kinds of automatic parameter measurement, 5 groups of customizable parameter display
Grade display can view the worst case of changing waveforms, capture rare and abnormal signals
It can be effectively applied to trigger signals without frequency correlation
Specifications | ||

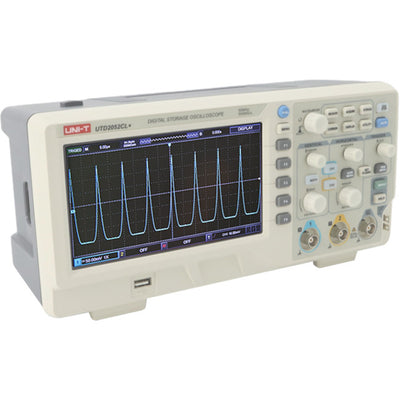

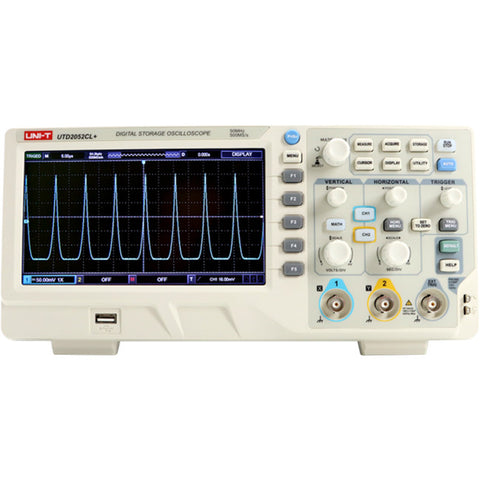

| Model | UTD2052CL+ | |
| Bandwidth | 50MHz | |
| Channels | 2 | |
| Sampling rate | 500MS/s | |
| Rise time (Typical) | <7ns | |
| Memory depth | 64kpts | |
| Waveform capture rate | 5000 wfms/s | |
| Time base scale | 2ns/div-50s/div | |
| Storage methods | Setting, Reference waveform, Data file, Bitmap | |
| Trigger specifications | ||
| Frequency counter | 6 bits | |
| Trigger types | Edge, pulse width, slope, video, alternate | |
| Level range | Internal | ±10div from screen center |
| EXT | ±3V | |
| Holdoff range | 80ns~1.5s | |
| Edge trigger types | Rise, fall, arbitrary edge | |
| Interfaces | Pass/Fail , USB Device, Standard USB Host, EXT Trig | |
| General Characteristics | ||
| Power | 100V-240V 50Hz/60Hz | |
| Display | 7-inch TFT LCD, WVGA (800x480) | |
| Product color | White and grey | |
| Product net weight | 2.5kg, 3kg including package | |
| Product size | 306mm x 138mm x 124mm | |
| Standard accessories | Probe x 2 (1x, 10x switchable), power cord, USB interface cable | |
| Standard individual packing | Carton box | |
| Standard quantity per carton | 2pcs | |
