$406.00
| Specifications | ||

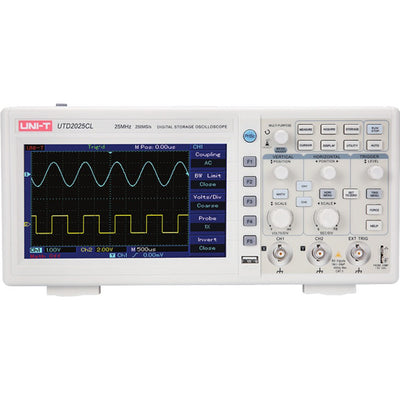

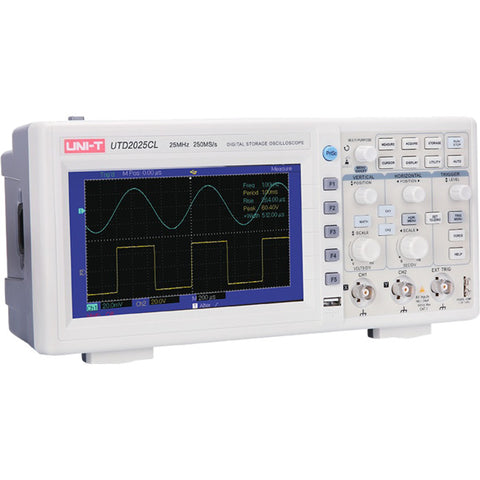

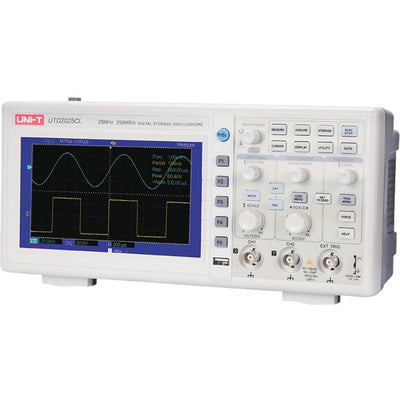

| Model | UTD2025CL | |
| Bandwidth | 25MHz | |
| Channels | 2 | |
| Sampling rate | 250MS/s | |
| Rise time | <14ns | |
| Memory depth | 25kpts | |
| Waveform capture rate | >2, 000wfms/s | |
| Vertical scale (V/div) | 1mV/div?20V/div | |
| Time base scale (s/div) | 10ns/div?50s/div | |
| Storage methods | Setup, waveform, bitmap | |
| Trigger specifications | ||
| Frequency counter | 6 bits | |
| Trigger types | Edge, pulse width, video, alternate | |
| Level range | Internal | ±8div from screen center |
| EXT | ±3V | |
| Holdoff range | 80ns?1.5s | |
| Edge trigger types | Rise, fall, rise & fall | |
| Interfaces | Pass/Fail (UTD2025CL), USB-OTG | |
| General Characteristics | ||
| Power | 100V?240V ACrms, 50Hz/60Hz | |
| Display | 7-inch TFT LCD, WVGA (400x240) | |
| Product color | White and grey | |
| Product net weight | 2.2kg | |
| Product size | 306mm x 147mm x 122mm | |
| Standard accessories | Probe x 2 (1x, 10x switchable), power cord, USB interface cable, PC software CD | |
| Standard individual packing | Carton box | |
| Standard quantity per carton | 2pcs | |
| Standard carton measurement | 450mm x 420mm x 280mm | |
| Standard carton gross weight | 7.1kg | |
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
