$27.55

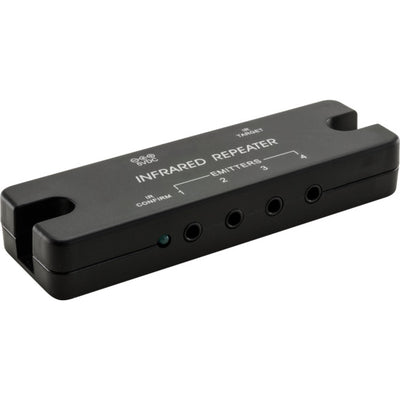

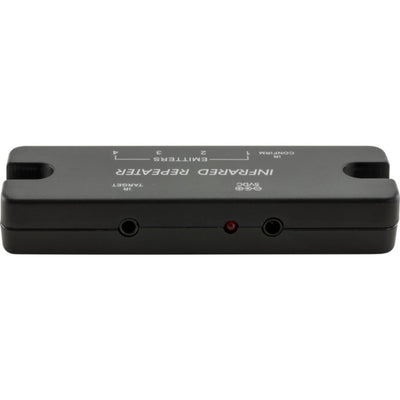

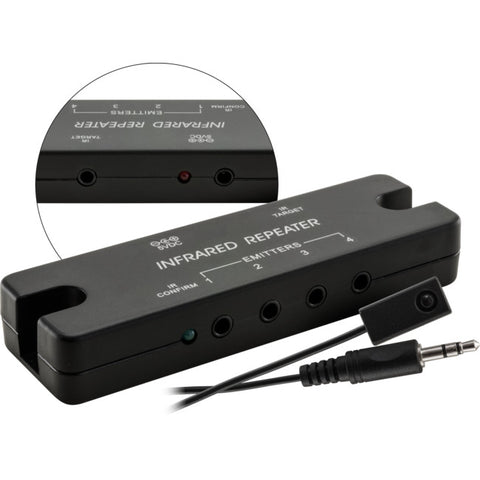

Hide your AV equipment in a cupboard or rack without losing the ability to control them with their Remote Controls. Installing the Compact IR Repeater kit is quick and simple, and expandable offering extra output ports for more emitters/equipment!
| Repeater Box | Receive/Transmit Frequency | 38kHz ~ 56kHz |
|---|---|---|
| Power | 5VDC / 500mA | |
| Dimensions | 104x32x17mm | |
| Weight | 25g | |

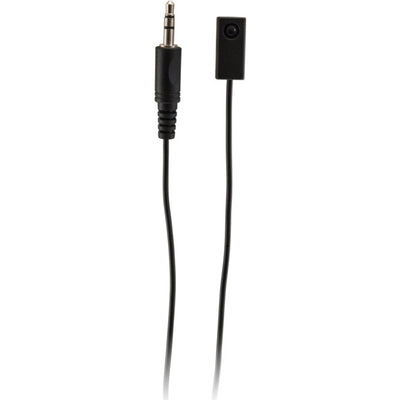

| IR Receiver | Range | 40ft @ 38kHz 25ft @ 56kHz |
| Connector | 3.5mm stereo plug | |
| Tip: Signal Ring: +V Sleeve: Gnd | ||
| Cable Length | 3metres | |
| Dimensions | 20x9.4x7mm (excl cable) | |
| Weight | 21g | |

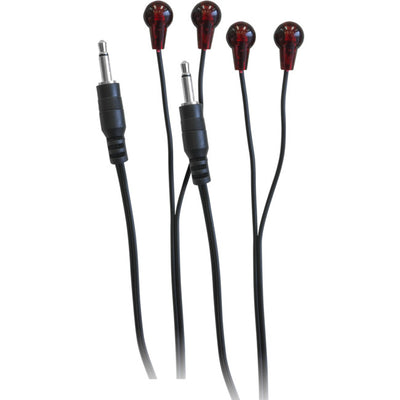

| IR Emitter | Emitters/LEDs | 2x (Dual) |
| IR Wavelength | 940nm | |
| Cable Length | 3metres | |
| Connector | 3.5mm mono plug | |
| Tip: Signal Sleeve: Gnd | ||
Can I use the PRO1326 with other Pro2 accessorieslike IR hubs, IR targets and IR wall plates?
The accessories are designed to be compatible with the PRO1187 IR block but not the PRO1326. Since the Vcc output voltage from IR Receiver socket (on thePRO1326) is 5 volts (not 12 volts like the PRO1183) so you can?t connect the output of the PRO1326 to many of the otherPro2 IR accessories.
Why the IR confirmation blue LED stays on?
Please make sure IR target has been plugged in. Once plugged in, the IR confirmatino light will be off and only blinks when it receives IR signal.
