ZWGDBLSW GOAP Z-WAVE DOUBLE SWITCH QUBINO DHS-LIT-SWW-QUB-02

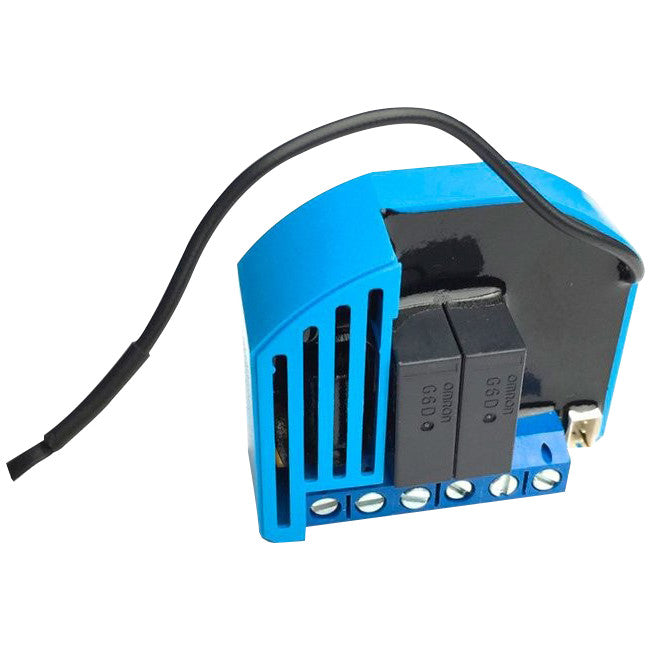

GOAP Z-Wave Double Switch

Quick Overview

The GOAP Double Switch is Z-Wave module for switching on or off the electrical device (e.g. light, fan, etc ...). Themodule can be controlled either through Z-wave network or through the wall switch manually.

This module is designed to be mounted behind a traditional wall switch.Module measures power consumption ofload and supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-Wave network.

Supported switches

Module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Product Details

  • Compatible with any Z-Wave Controller.
  • Dimensions (W x H x D) 41,8 x 36,8 x 15,4mm
  • Power monitoring accuracy P=5-50W, +/-3W; P?50W, +/-3%;
  • Digital temperature sensor range (sensor must be ordered separately) -50 ~ 125° •Support for the connection of digital temperature sensor (optional part)
  • 2 binary inputs offer the option to connect additional devices such as sensors, switches/push buttons, etc,

Technical Specification

Product Name
Flush 2 relay
Powered by
24V DC or 240V AC
Operation Range
30m
Max Load
2300W (230VAC)
Radio frequency
921.42 MHz (AU/NZ Z-Wave)
Power Consumption
0,4W
Operation temperature
-10 -+40 C*
Measured temperature range 0,5oC (within 0oC - 40oC range) (optional sensor)
Temperature measuring accuracy
0,5 C
Housing
ABS
Dimensions (W x H x D)
41.8 x 36.8 x 15.4 mm
