XG884 X-GLASS CELLULAR MULTIBAND 824-960 / 1710-2170 MHZ  RFI RFI XG884

XG884 X-GLASS CELLULAR MULTIBAND 824-960 / 1710-2170 MHZ RFI RFI XG884

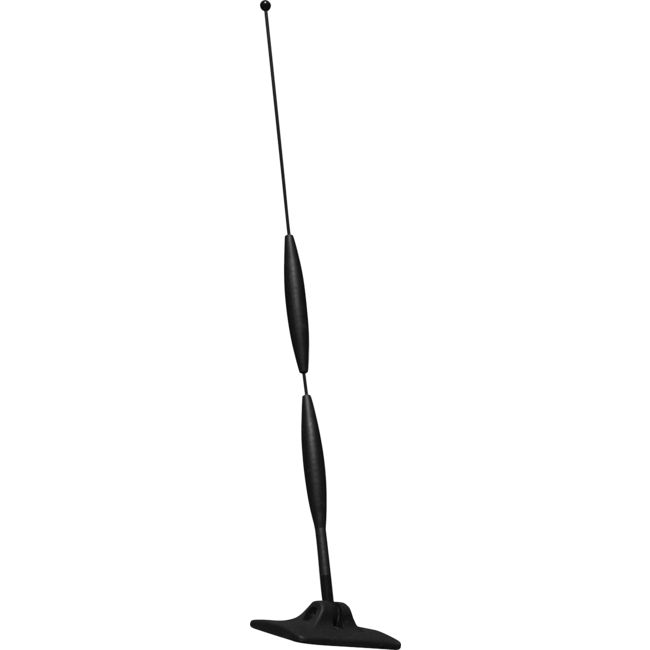

X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz

The X-glass™ antenna, XG884, is a genuine multi band antenna designed specifically for 3G850, GSM900/1800 and 3G2100 applications.

This antenna offers superb, true multi band performance

The XG884 utilises a slot radiator in the coupling box, with a patch element housed in the mounting foot.

The patch element is x-shaped to allow the coupling of multiple bands very effectively.

The whip element is fully moulded with dual phasing coils, the result being an antenna that provides abundant gain in all bands.

Featuring a new-look mounting foot and coupling box, XG884is supplied complete with a pre-terminated lead of low loss, fully shielded coaxial cable.

  • True multi band performance at 3G850, GSM900/1800 and 3G2100
  • Fully shielded low loss FME pre-terminated cable withA-87 (FME-MPL) adaptor supplied
  • Available with additional adaptors on request
  • XG884 supplied with 0dB and 3dB gain whips

Specifications:

Band 824-960MHz / 1710-2170MHz
Tunable Bandwidth Entire specified band <2.5:1MHz
Nominal Gain dBi 0 or 3 depending on whip used
Tuning Supplied pre-tuned
Power W 50
Cable and Connector Pre-terminated lead with 5m flexible foam dielectriclow loss fully shielded cable pre-terminated with FME nipple connector for transceiver connector and SMA male tosuit coupling box. A-87 FME-MPL adaptor supplied.
Whip Material One piece black chrome plated stainless steel with plastic over moulding
Whip Length mm 155 (0dB) / 352 (3dB)
VSWR <2.5:1



X-glass™ Cellular Multi Band - XG884
