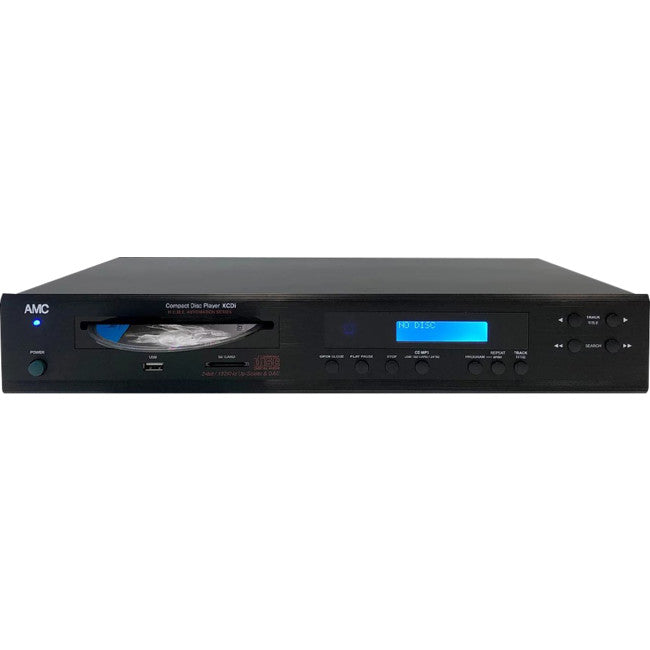

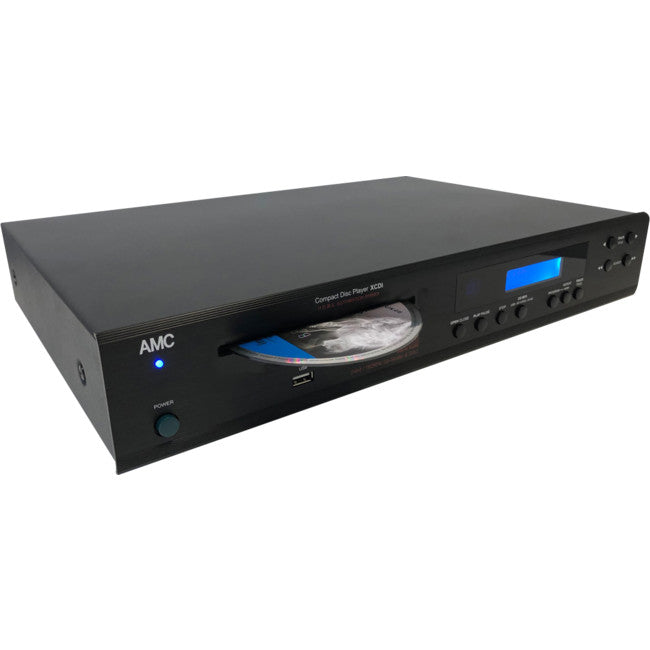

XCDIE AMC BLACK SINGLE CD PLAYER -V2 PANASONIC MECH- PCM1798 DAC AMC XCDI NEW SERIES

AMC XCDIE Series 2 CD player

The AMC XCDie CD player uses a Burr Brown TI PCM1798, 24-Bit / 192 kHz Sampling Advanced Segment D/A Converter architecture to achieve excellent dynamic performance (123dBtypically) and improved tolerance to Clock Jitter.

This DAC offers excellent SNR up to 123 dB typical, excellent THD+N down to 0.0005% typical and with excellent 8x Over-sampling Digital Filter giving Pass-Band Ripple downto +/- 0.002dB.

The DAC can handle sampling frequency of 10kHz to 200kHz and accepts 16, 20 and 24 Bit Audio Data and it installed with Digital De-Emphasis.

So, utilizing the optional modules, the DAC can be hookedto digital outputs of AV Receivers, DVDAudio/ Video, SACD, HDTV, Computer, Game Consoles (through SPDIF or USB interface if you will use AMC MD5501 or MD5502 module) and we can up-sampling the signals to 24bit/192kHz and pass through the acclaimed DAC in order to get best possible sound out from each system

KEY FEATURES:

• BURBROWN DACS ONBOARD
• FAST LOADING CD PLAYBACK
• HIGH QUALITY SOUND OUTPUT
• JAPANESE MADE LASER MECHANISM
• 2 YEAR WARRANTY

Supports standard non-compressed PCM, compressed MP3, andcompressed WMA Compact Discs

Option of installing 24 bit / 196 kHz up-sampler to give extra superb sound quality

Front Panel Ports: USB for Flash Drive and SD Card Socket

Rear Panel Ports: Optical and Coaxial inputs, USB for connecting to computer

If you will like to enjoy high quality sound from your DVD, Computer or Game Console, you can purchase AMC MD5501 or MD5502 module

Premium transport and servo drive system assures constantdata retrieval and unsurpassed tracking performance

Unique 5-pole linear active LPF (Low Pass Filter) prevents interference from ultrasonic noise commonly found in other CD playback systems

Advanced switching mode power supply design incorporates separate windings for the digital, analog and servo circuitsto prevent interference and preserve sonic performance

EIA calibrated audio outputs ensure proper match with pre-amplifiers and receivers

Up to 20 tracks may be programmed to playback in desire order

Full-function infrared (IR) remote control with direct track access

With AMC proprietary designed switching mode power supplyto cover 100 ~240VAC for using the unit in all countries in the wold and give superb sound quality by high regulated power system designs

SPECIFICATIONS:

• Disc capacity Single disc, 120 or 80mm

• DAC Digital to analogue conversion Burr-Brown Advancedsegment DAC architecture

• Digital filter 8X over-sampling at up to 24-Bit/192KHzsampling rate

  • (Stop band attenuation:-98dB, pass-band ripple: +/-0.002dB)

• Analogue filter 5-Pole active

• Frequency response 5Hz-20KHz <+/-0.2 dB

• Linearity +/-0.5 dB; 0 to -100 dB

• Channel separation (20Hz to 20KHz) >100 dB

• Channel imbalance <+/-0.1 dB

• S/N ratio (A-weighted, measured with all zeros test disc) 115 dB

• Dynamic range 102 dB

• THD (at 0dB, 1KHz, A-weighted) 0.0011%

• Inter-modulation distortion (19 & 20 KHz) <-110dB

• Output impedance 120 ohm

• Output level at 0dB 2.2 Vrms

• Wow and flutter Immeasurable (Quartz crystal accuracy)

• S/PDIF DIGITAL OUTPUT

• Digital output level 0.5 Vpp

• Load impedance 75 ohm

• Peak emission wave length 660 nm

• Dimensions (W x H x D) 430x82x300 mm

• Net weight 4.0 Kgs

• Power consumption 30 W

• Power 240 Volt

• Warranty 2 Years
