Sold Out

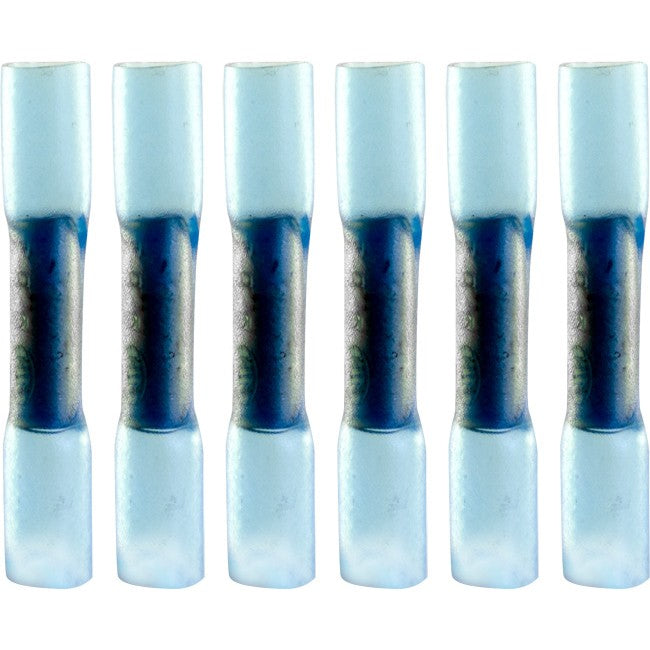

Kit packs are useful to a smaller user, who only wants afew terminals to complete a job.Supplied in handy merchandiser zip lock bags,they can be re-sealed.
Note: All terminals should be crimped onto the conductorwith a quality crimper that is designed to crimp the specific terminal type.
| Conductive Material (Quick Connect Range) Brass 30% Zinc, 70% Copper Tensile Strength 580 MPa Ductile Rating 6% min Final Metal State Annealed | Working Temperature Pre-Insulated -40°C to +105°C Brass 145°C Tin plated 160°C |
| Conductive Material (Except Quick Connect Range) Copper 99.9% Pure Tensile Strength 200 MPa Ductile Rating 35% min Final Metal State Fully Annealed Oxygen Content 50ppm max | General Electrical Properties Total Conductivity 99.5% IACS Total Resistivity 1.738 micro-ohm cm |
| Electroplating Material Tin Tin Content 99.9% Other Metals Lead + Antimony Plating Thickness 2.5 microns Insulation Material PVC for all except nylon 6 or nylon 66 for FIQC Breakdown Voltage 1.5kV (min) Insulation Resistance Above 100 meg ohms Working Voltage Up to 300V AC/DC | Conformant Standards AS4437, AS3169 Australia CSA Canada IEC Europe UL Nema USA Demko Denmark DIN VDE Germany Kema Holland JIS Japan; Nemko Norway ASE Switzerland BS United Kingdom |
For hardware being metric 8.8 tensile grade.
| Thread Dia. (mm) | Torque (Nm) |
| 3 | 2 |
| 4 | 3 |
| 5 | 5 |
| 6 | 9 |
| 8 | 22 |
| 10 | 44 |
| 12 | 77 |
Pull out should be checked for each tool/terminal combination.
| Wire Size (mm’) | Pull Out Force kg (N) |
| 0.25 | 4.6 (45) |
| 0.50 | 6.0 (59) |
| 0.75 | 8.6 (84) |
| 1.00 | 10.1 (100) |
| 1.50 | 13.2 (130) |
| 2.50 | 19.6 (192) |
| 4.00 | 26.5 (260) |
| 6.00 | 35.2 (345) |
