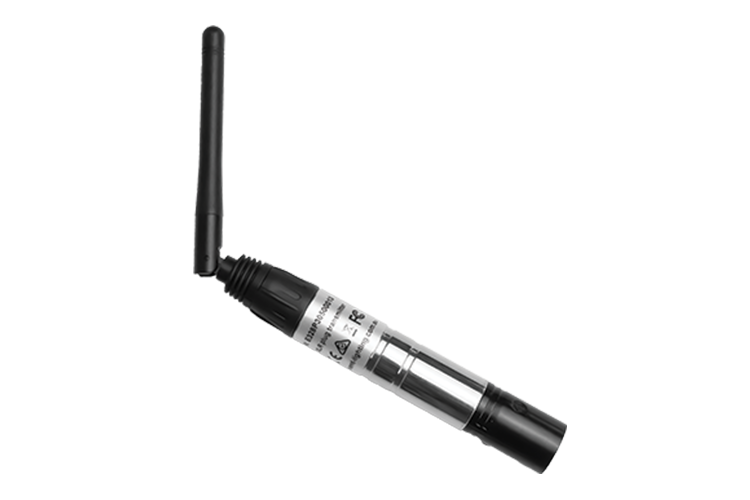

WDMX5XLRTX- Wireless DMX 5-pin XLR plug transmitter 2.4Ghz W DMX protocol

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. WDMXXLRTX operates as a transmitter to communicate WDMX signals.

Specifications：

• Maximum Transmission power: 22dBm


• Receiver Sensitivity: -110dBm




• Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels


• Spread Spectrum: FHSS, 1100 hops/s


• Modulation GFSK


• ARM processor: 32-bit



• 5-pin Male XLR


• Channel Groups: 6 in ELDMX mode


• Protocols: ELDMX, WDMX, GZ


• Automatic Reboot Trigger: Built-in WDT (watchdog timer)


Dimensions

• Size:85x18x18mm


• Weight: 110 g

Environmental Limits

• Operating Temperature: -40 ~ 85 °C


• Storage Temperature: -65 ~ 150 °C


• Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

• Power supply: 5VDC

Coverage Area

Transmitter	Receiver	Line of site MAX*	Through a single brick wall*
WDMXBASETRX	WDMXBASETRX	300m	50m
WDMXBASETRX	WDMX5XLRRX	200m	30m
WDMX5XLRTX	WDMXBASETRX	300m	50m
WDMX5XLRTX	WDMX5XLRRX	200m	30m



*Distance is given as measured in ideal RF conditions. Actual distance will vary depending on your environment

User Manual Download

Tap to unmute

How to Pair Event Lighting Wireless Transmitter and Receiver - TutorialEvent Lighting

Event Lighting960 subscribers

Watch on

Warranty: 3 years

Please Note: Shipping quoted is an estimate only. We will contact you with a quote for actual shipping charges to your location if necessary.
