$14.50

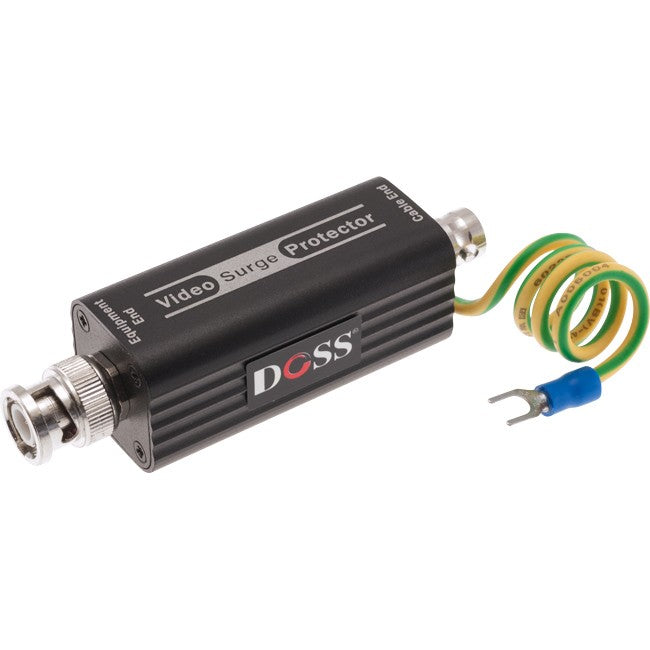

The VSP01 is a signal channel coaxial video surge protector designed according to IEC and GB standards. It adopts BNC connectors, features quicker response time, lowerresidual voltage output and lower insertion loss with internationally recognised branded semiconductor components to protect devices from lightning strikes or damage by overvoltage, overcurrent or surge voltage. It is widely usedin cable CCTV transmission, and the protection of electronicmonitoring systems such DVRs, LETs and cameras etc
| Application | CCTV transmission, Electronic monitoring devices such as DVR, LET and cameras etc.. | |
| Video | Connector | BNC connector |
| Normal Operating Voltage) | 6V | |
| Max Continuous Operating Voltage) | 8V | |
| Nominal Discharge Current (8/20us) | 5KA | |
| Nominal Ddischarge Current (8/20us) | 10KA | |
| Rated Load Current (IL) | 500MA | |
| Limited Voltage | <15V | |
| Response Time | <1NS | |
| Max Transmission Rate | 10Mbps | |
| Insertion Loss | <0.2dB | |
| Impedance | 75Ω | |
| Protection Circuit | Unshielded Twisted Pair (UTP) | |
| Failure LED Indication | To the ground short circuit or open | |
| Mechanical | Dimensions (L*W*H) | 60*25*25mm |
| Housing | Aluminum alloy | |
| Body Color | Black | |
| Net Weight | 60g | |
| Environmental | Operating Temperature | -20°C ~ 55°C |
| Relative Humidity | 0~95% (non-condensing) | |
| Storage Temperature | -40°C ~ 70°C | |
