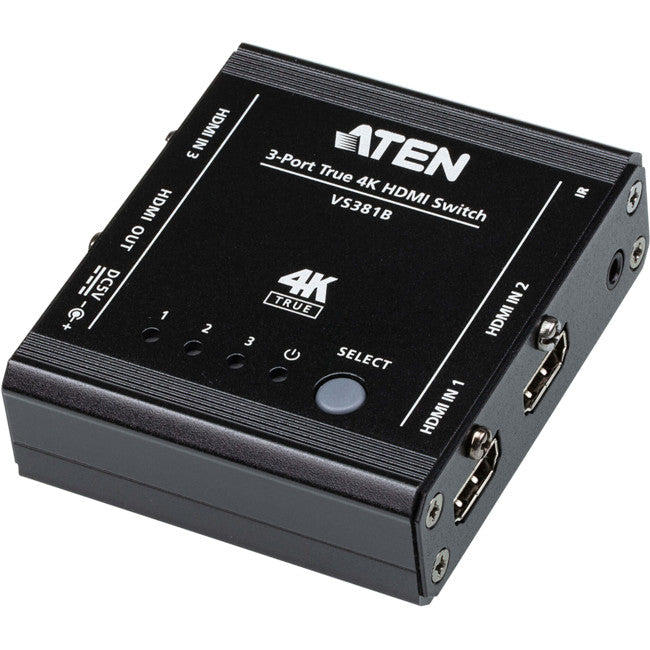

VS381B 3-WAY HDMI SWITCHER 4K ATEN ATEN VS381B

The VS381B 3-PortTrue 4KHDMI Switch with Auto Switching provides users to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up toTrue 4K(4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps,HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.

VS381B is a practical solution for auditorium,home theater,meeting rooms, trade shows, shopping centers, and more.

Features

  • Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
  • Superior video quality –True 4Kresolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m;HDRsupported< /li>
  • HDMI (3D, Deep Color, 4K,HDR10+, Dolby Vision, HLG)
  • HDCP 2.2 compliant
  • Auto switching mode for auto port selection
  • Switching between HDMI input sources via front panel pushbuttons and IR remote control
  • Supports IR extension
  • Supports 7.1 channel audio output
  • Clear LED indication of device status
  • Plug-and-play – no software installation required

Specifications

Note USB to DC cable as the main power source;
In some circumstances power from HDMI maybe sufficient for the device; however, the power source from USB via USB to DC cable is recommended for device operation
LEDs
Input 3 x HDMI-In (Green)
Power 1 x Power LED (Green)
Pushbuttons
Select 1 x push button (input selection)
Audio
Input 3 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Video Input
Interfaces 3 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)
HDCP 2.2
Max. Resolution 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
IR 1 x Mini Stereo Jack Female (Black) / Max distance@ 5m
Connectors
Power 1 x DC Jack
Power Consumption DC5V:1.46W:6BTU
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.15 kg ( 0.33 lb )
Dimensions (L x W x H) 7.16 x 7.90 x 2.55 cm
(2.82 x 3.11 x 1 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
