VPB45PCDHD/FS-HD4301VPC

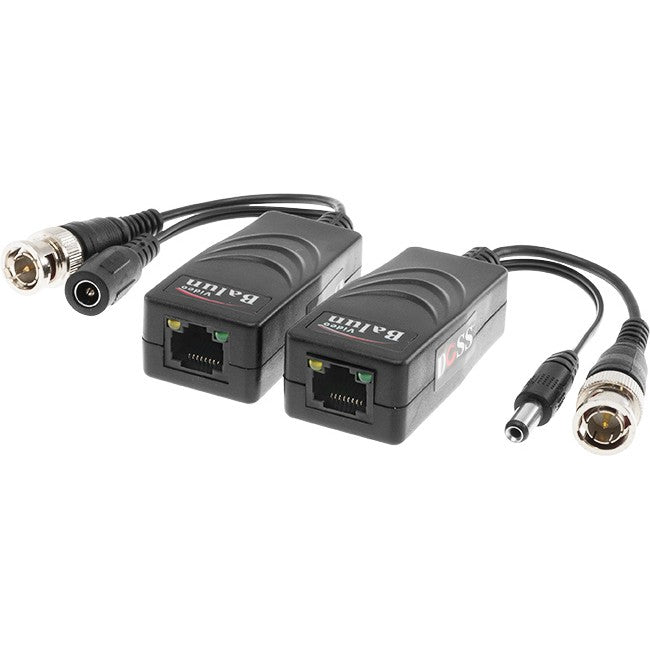

The Doss VPB45PCDHD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable.
The Doss VPB45PCDHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.
The superior interference rejection and low emissions of thebalun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits. Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals.
| Product Name | Single Channel Passive Video and Power Converter | |||
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | |||
| Video | Video Format | PAL, NTSC, SECAM | ||
| Operating Frequency | DC to 42MHz | |||
| Max Distance | HD-TVI 720p:190m | HD-CVI 720P:440m | AHD 720P:300m | |
| HD-TVI 1080P:190m | HD-CVI 1080P:220m | AHD 960P:240m | ||
| AHD 1080P:220m | ||||
| Common-mode/Differential-mode rejection | 15 KHz to 42MHz60 dB typ | |||
| Impedance | Coax, Male BNC75Ω unbalanced | |||
| UTP,RJ45100Ω balanced | ||||
| Attenuation | 1.5 dB typ Max | |||
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal)24-16 AWG (0.5-1.31mm) | ||
| Category Type | 2 or better | |||
| Impedance | 100± 20 ohms | |||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | |||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | |||
| Power | Power Input | No external power required | ||
| Power transmission | 12VDC /24VAC via UTP cat5e/6 refer to power distance chart above | |||
| Connector | Video input/output | BNC connector | ||
| Videoinput/output | RJ45 Jack | |||
| Protection | Surge Protection | renewable solid state surge protection | ||
| Antistatic | YES | |||
| Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | |||
| Video Output | 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | |||
| Mechanical | Dimensions(L*W*H) | 60.4*29*20.4mm (BNC connector & cable excluded) | ||
| Housing | ABS engineering plastic | |||
| Body Color | Black | |||
| Net Weight | 60g | |||
| Environmental | Operating Temperature | -20°~70°C | ||
| Relative Humidity | 0~95% (non-condensing) | |||
| Storage Temperature | -40°~150°C | |||
