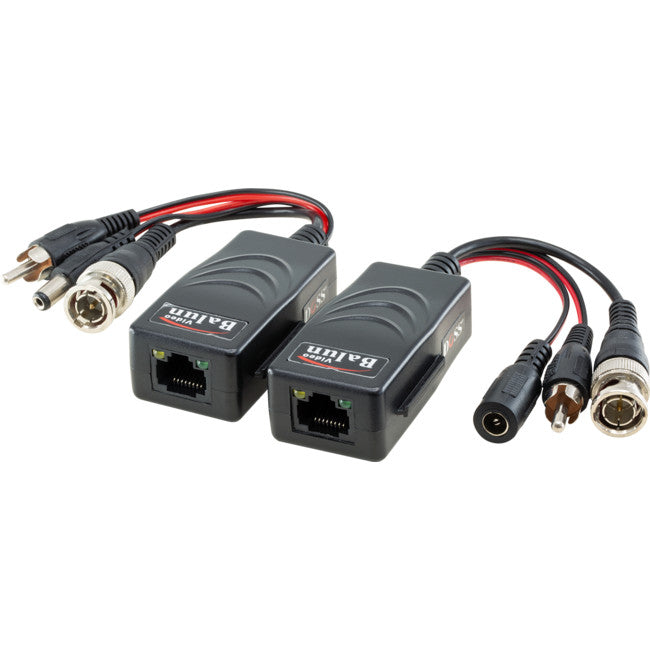

The VPAB45HD is a passive (non-amplified) device that allowsthe transmission of real-time CCTV HD video, power and audiosignal via one cost-effective Unshielded Twisted Paired (UTP) cable. Based band (composite) signals of any type are supported. Used in pairs, VPAB45HD eliminates costly and bulky coaxial cable, allowing live CCTV colour HD video, power and audio signal up to 200m. The superior interference rejection and low emissions of theVPAB45HD allow HD video signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. This allows the use of a shared or existing cable plant. It has built in surge suppressor to protect video equipment against damaging voltage spike. Its crosstalk and noise immunity ensure quality video signals.
It is compatible with allHD-TVI, HD-CVI and AHD analog cameras.
Model | VPAB45HD | |
Product Name | Single Channel Passive HD Video, Audio and Power Transceiver | |
AppliedDevices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | |
Video | Video Format | PAL, NTSC, SECAM |
Operating Frequency | DC to 6 MHz | |
Max Distance | UTP Category 5e (24AWG)Color: 400mB&W: 600m | |
Common-mode/Differential-mode rejection | 15 KHz to 5 MHz60 dB typ | |
Impedance | Coax, BNC Plug75Ω unbalancedUTP, RJ45100Ω balanced | |
Attenuation | 1.5 dB typ Max | |
WireType | Network Wiring | One Unshielded Twisted Pair (for each video signal)24-16 AWG (0.5-1.31mm) |
Category Type | 2or better | |
Impedance | 100 ± 20 ohms | |
DC Loop Resistance | 18 ohms per 100m | |
Differential Capacitance | 62 pF/m max | |
Power | Power Input | No external power required |
Power transmission | 12V/24V, DC/AC, up to 200m via UTP cat5e/6 | |
Audio signal | Transmission distance | Up to600m |
Connector | Video input/output | BNC plug connector |
Videoinput/output | RJ45 Jack | |
Protection | Surge Protection | renewable solid state surge protection |
Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | |
Video Output | 2KV(different mode), 10/700us IEC6100-4-5/1955 (GB/T 1726, 5-1999) | |
|
Mechanical
| Housing | ABS engineering plastic |
Body Color | Black | |
Dimensions (L*W*H) | 60.4*29*20.4mm(BNC connector & cable excluded) | |
Net Weight | 65g | |
|
Environmental
| Operating Temperature | -20°~ |
Relative Humidity | 0~95% (non-condensing) | |
Storage Temperature | -40°~ | |
