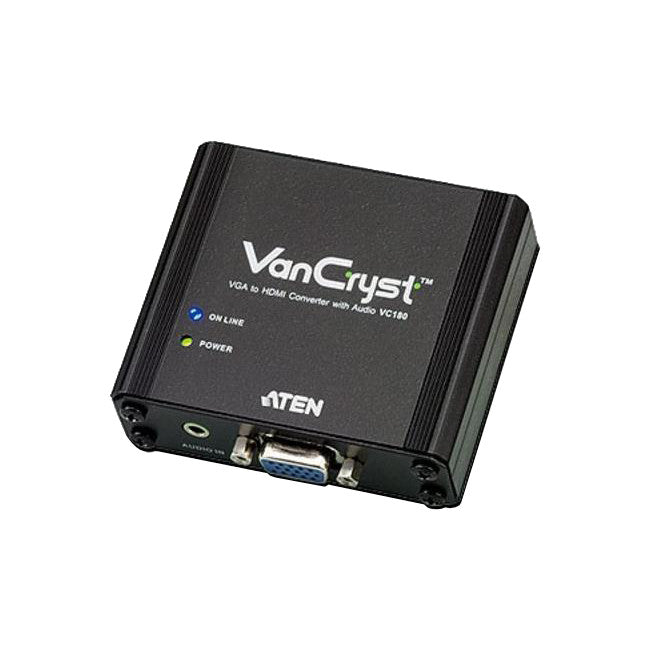

VC180 VGA TO HDMI CONVERTER ATEN ATEN

VGA/Audio to HDMI Converter

The VC180 is a VGA-to-HDMI Converter with Audio that letsyou view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 iscompact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.

  • Converts VGA signals to HDMI output
  • Supportsanalogstereo audio input
  • Superior video quality – up to 1080p, WUXGA
  • Screen Position Button – screen position settings can be stored for each output resolution
  • Multiplatform support – Windows and Mac
  • Supports dual power sources: VGA port or power adapter(in case the VGA port cannot provide sufficient power)
  • Automatically detects video input signals
  • LED indicator
  • HDMI compatible
  • Compact and lightweight
  • No software required – eliminates incompatibility and installation issues

[tab Specifications}

Video Input
Interfaces 1 x HDB-15 Female (Blue)
Impedance 75 ?
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 ?
Video
Max. Pixel Clock 165 MHz
Max. Resolution Up to 1080p
Audio
Input 1 x Mini Stereo Jack Female (Green)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:2.62W:12BTU
Environmental
Operating Temperature 0 - 50 ’ŠC
Storage Temperature -20 - 60 ’ŠC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) 7.90 x 7.81 x 2.44 cm
(3.11 x 3.07 x 0.96 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
