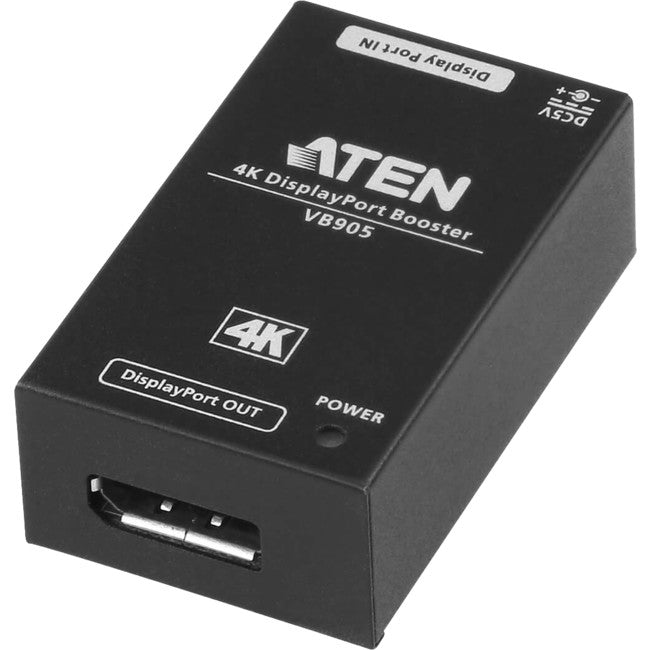

VB905 ATEN 4K DISPLAYPORT BOOSTER UPTO 5M ATEN VB905-AT-U

VB905 ATEN 4K DISPLAYPORT BOOSTER UPTO 5M ATEN VB905-AT-U

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

4K DisplayPort Booster (True 4K@10m) VE905

ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.

The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellentfl exibilityfor managing both work and home settings.

  • Extends True 4K signal transmission up to 5 m
  • Compliant with DisplayPort 1.2a and HDCP 2.2
  • Superior video quality – up to True 4K resolutions of 4096 x 2160 @ 60 Hz (4:4:4)
  • Supports HDR
  • Cascade 3 levels to extend True 4K signal up to 20 m
  • A single unit can be powered from the source device
  • Plug-and-play
  • Rack mountable

    Note: Longer transmission distance is possible with lower data rates. If you want to remainhigh qualitytransmission, please use higher quality cable.

{tab Specifications}
Video Input
Interfaces 1 x DisplayPort Female (20-pin)
Max. Distance Up to 4Kx2K@60Hz (4:4:4) / 5m
1080p@60Hz / 5m
Video Output
Interfaces 1 x DisplayPort Female (20-pin)
Max. Distance Up to 4Kx2K@60Hz (4:4:4) / 5m
1080p@60Hz / 5m
Video
Max. Data Rate 21.6 Gpbs (5.4 Gbps Per Lane)
Compliance DP1.2a
HDCP 2.2
Max. Resolution 4096 x 2160@60Hz (4:4:4)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:0.937W:4BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.05 kg ( 0.11 lb )
Dimensions (L x W x H) 5.84 x 3.53 x 2.06 cm
(2.3 x 1.39 x 0.81 in.)
Carton Lot 10 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
{/tabs}
