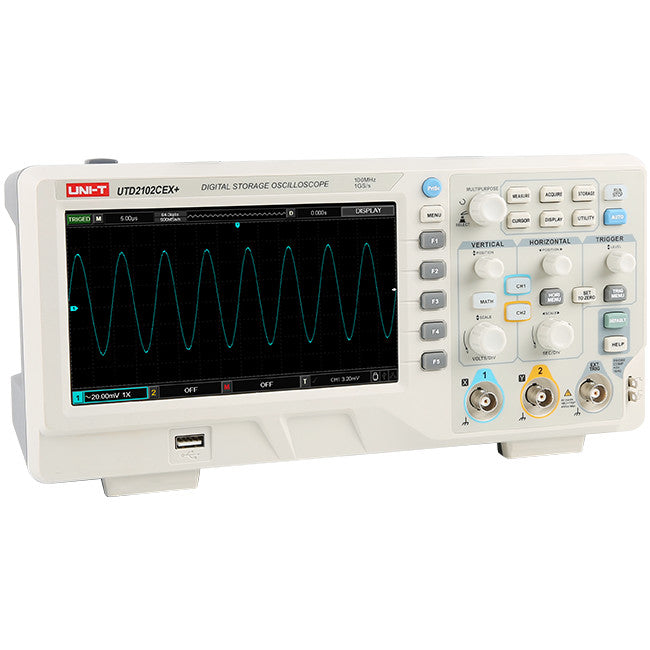

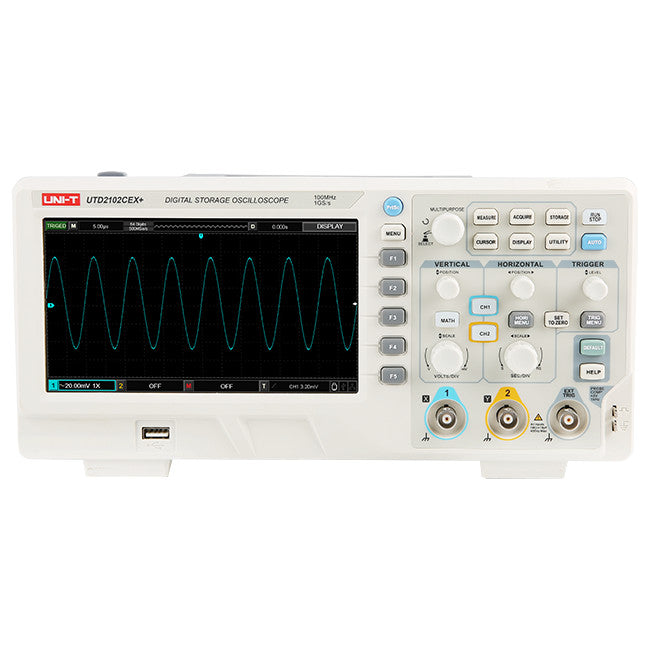

The UTD2000CEX+ series display range is 8divX16div,and has a new AUTOSET strategy, which can easily copewith complex test scenarios.
The UTD2000CEX+ series supports 34 kinds of automatic measurement functions and waveform recording functions.which can record up to 1000 frames, and canachieve better waveform analysis effects through playback and storage functions.
Specifications | |
| Model | UTD2102CEX+ |
| Bandwidth | 100MHz |
| Channels | 2 |
| Sampling rate | 1GS/s |
| Rise time | 3.5ns |
| Memory depth | 64kpts |
| Waveform capture rate | ≥5000 wfms/s |
| Time base scale | 2ns/div-50s/div |
| Storage methods | Setup, Waveform, Bitmap |
| Trigger specifications | |
| Frequency counter | 6 bits |
| Trigger types | Edge, pulse width, slope, video, alternate |
| Interfaces | Pass/Fail , USB Device, Standard USB Host, |
| General Characteristics | |
| Power | 100V-240V 45-440Hz |
| Display | 7-inch TFT LCD, WVGA (800x480) |
| Product color | White and grey |
| Product net weight | 3.5kg |
| Product size | 336mm x 164mm x 108mm |
| Standard accessories | Probe x 2 (1x, 10x switchable), power cord, USB interface cable |
| Standard individual packing | Carton box |
| Standard quantity per carton | 2pcs |
