$75.40
Key Features

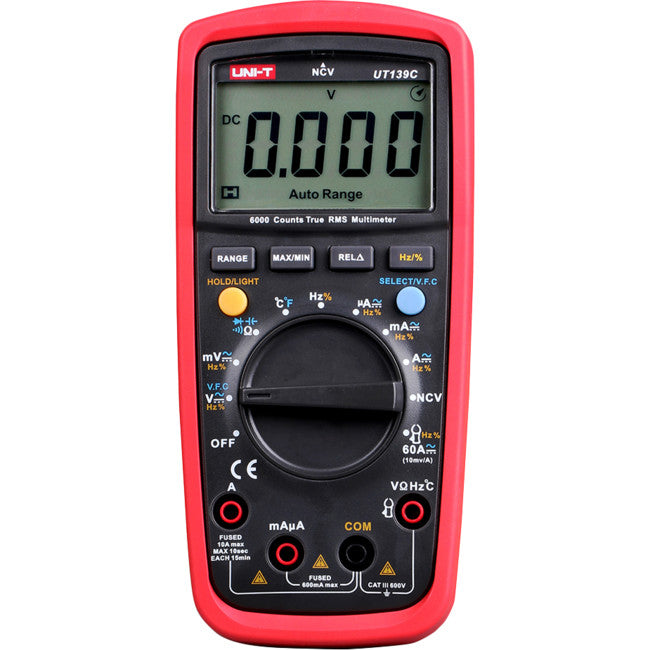

UT139 Series digital multimeters are newly designed to offer users better performance and higher safety rating. Totally over-load protection and unique structural design make it new type of multimeter with high performance/ price ratio and a best choice for electricians used in electrical maintenance and repairing.
1.True RMS for the whole series;
2.Measure signals with varied frequency (VFC);
3.Measure large capacitance up to 100mF;
4.Optional AC/DC 60A current clamps in different models tomeasure current up to 60A(1mv=1A);
5.NCV designed for the whole series, a necessity for electricians;
6.AA1.5V*2(5#) battery, easy for users to purchase and replace;

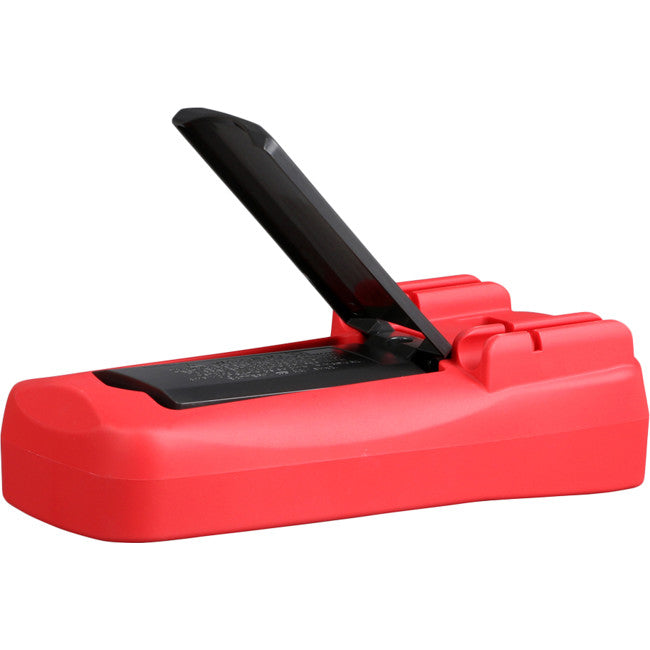

7.Soft rubber holster is easy to stand 2m drop;
8.Optional magnetic hanging strap offered to facilitate tests in special location;
9.Fast to replace fuse, just by opening battery cover;
10.Reliable with use of internal 2PCS fuses with high-breaking capacity;
11.Protection against 600V input/1 minute from misconnection;
12.Safety Rating: CAT III 600V.
Applications
An ideal tool for equipment testing, maintenance and repair widely needed in electronics, electric power, schools, metallurgy, communications, manufacturing, petroleum, national defense, chemical industry, etc.
| Specifications | Range | Best Accuracy |
| Model | UT139C | |
| DC Voltage (V) | 60mV/600mV/6V/60V/600V | ±(0.5%+2) |
| AC Voltage (V) | 60mV/600mV/6V/60V/600V | ±(0.8%+3) |
| DC Current (A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(0.7%+2) |
| AC Current (A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(1%+3) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+2) |
| Capacitance (F) | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/ 999.9μF/9.999mF/99.99mF | ±(4.0%+5) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+4) |
| Temperature (°C) | -40°C~1000°C | ±(1.0%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
| Features | ||
| Display Count | 6000 | |
| Auto Range | YES | |
| Manual Range | YES | |
| True RMS | YES | |
| Bandwidth(Hz) | 45Hz-1kHz | |
| V.F.C | YES | |
| Duty Cycle | 0.1%-99.9% | YES |
| Diode | Around 3V | |
| NCV | YES | |
| Auto Power Off | Around 15 Minutes | YES |
| Continuity Buzzer | YES | |
| Low Battery Indication | ≤2.5V | YES |
| Data Hold | YES | |
| Relative Mode | YES | |
| MAX/MIN | YES | |
| LCD Backlight | YES | |
| Input Protection | 600Vrms | YES |
| Input Impedance for DCV | 1GΩ Max | YES |
| General Characteristics | ||
| Power | AA1.5*2 | |
| LCD Size | 58mm × 36 mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 370g | |
| Product Size | 175mm x 81mm x 48.5 mm | |
| Standard Accessories | Battery, Test Leads, Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 645mm×450mm×340mm (0.098CBM Per Standar Carton) | |
| Standard Carton Cross Weight | 25.5 Kg | |
| Optional Accessories* | ||
| Current Sensor AC/DC40A | ||
