UAP-NANOHD COMPACT UNIFI AC ACCESS POINT 4X4 MU-MIMO POE INCLUDED UBIQUITI UAP-NANOHD

UAP-NANOHD COMPACT UNIFI AC ACCESS POINT 4X4 MU-MIMO POE INCLUDED UBIQUITI UAP-NANOHD

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

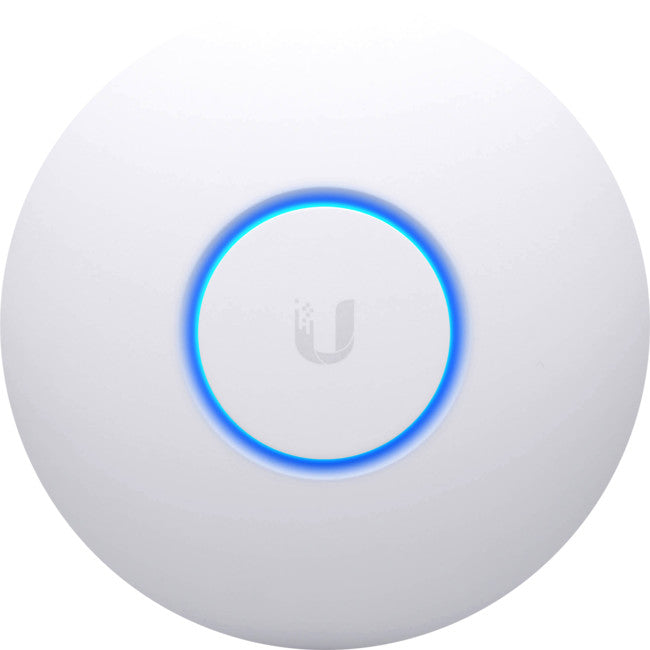

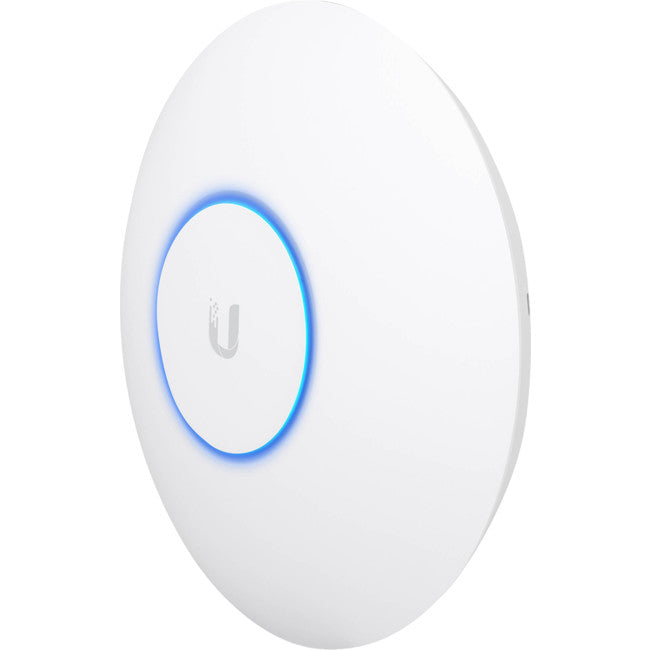

Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point - UniFi nanoHD

  • Four-Stream 802.11ac Wave 2 Technology 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
  • 802.3af PoE Compatibility
  • Power over Ethernet POE adapters included
  • Same mount as UAP-AC-Lite.

Specifications

Dimensions 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29")
Weight
With Mounting Kits
300 g (10.6 oz)
315 g (11.1 oz)

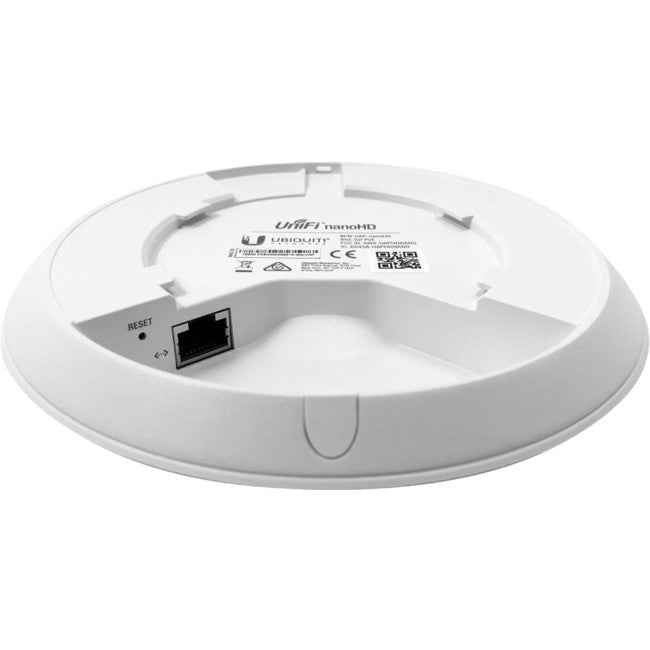

Networking Interface (1) RJ45 GbE
Buttons (1) Reset to Defaults
Power Method 802.3af
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Operating Frequency 2.4 GHz
5 GHz
Max. TX Power
2.4 GHz
5 GHz

23 dBm
26 dBm
Antenna Gain
2.4 GHz
5 GHz

2.8 dBi
3 dBi
MIMO
2.4 GHz
5 GHz

2x2
4x4
Throughput
2.4GHz
5GHz

300 Mbps
1733 Mbps
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio

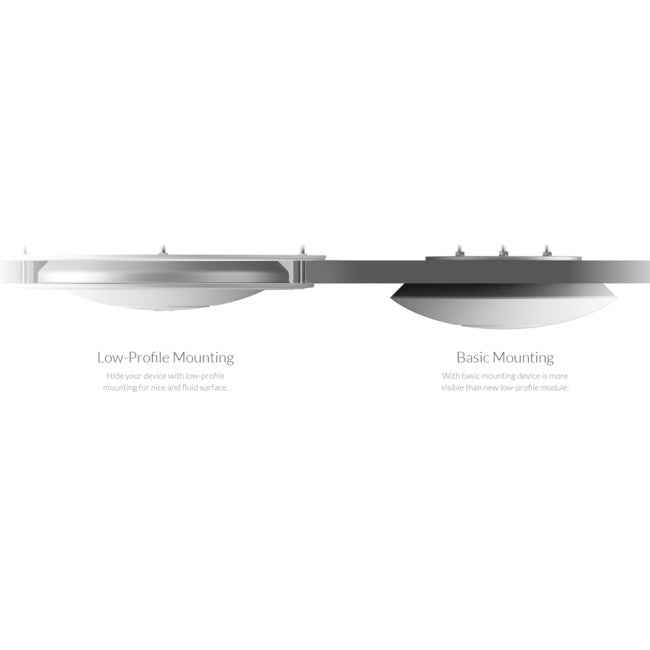

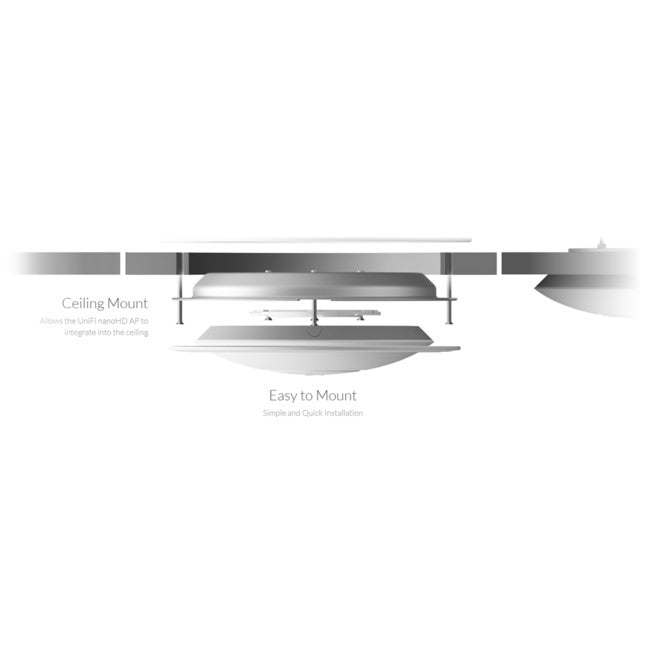

Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70°C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
