UAP-IW-HD UNIFI IN WALL ACCESS POINT HD WAVE2 AC HI DENSITY UBIQUITI UAP-IW-HD

Features

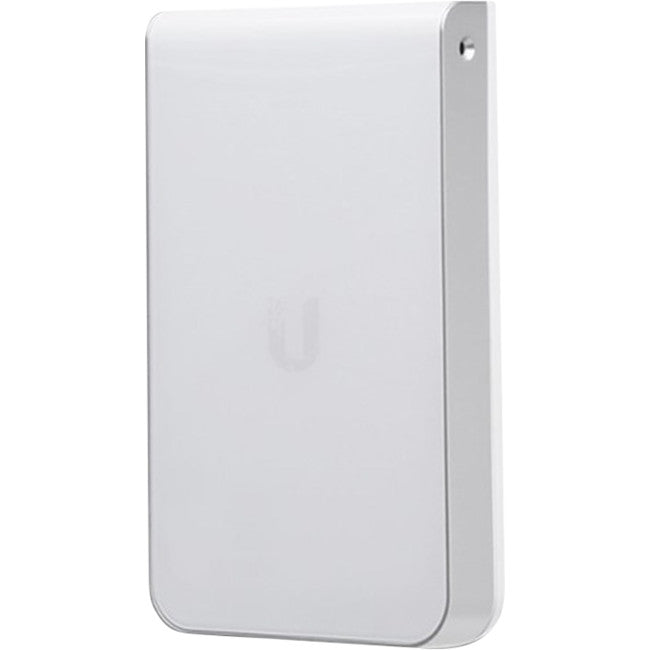

Ubiquiti UniFi 802.11AC In-Wall Wave 2 WiFi Access Point

The sleek and elegantUniFi®In-Wall HD Ideal for new and retrofit installations. Convert an Ethernet wall jack into asimultaneous, dual-band 802.11ac Wi-Fi Access Point with 4x4MIMO technology and it also includes one in and four out Gigabit Ethernet ports.

• Scalable Enterprise Wi-Fi ManagementUniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi app (iOS or Android™), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network –no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
• Save Money and Save TimeUniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
• Powerful HardwareThe UniFi IW HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
• Intuitive UniFi Controller SoftwareConfigure and manage your APs with the easy-to-learn user interface.
• ExpandableUnlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a multi-pack) and expand to thousands while maintaining a single unified management system.
• Extend Your CoverageWith the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Below are some deployment examples.
• For high-density environments, such as hotel suites and meeting rooms where there are numerous clients in a relatively small space, we recommend the UniFi IW HD AP. Both Wave 1 and Wave 2 APs offer 28 independent (non-overlapping) channels: three for the 2.4 GHz band and twenty-five for the 5 GHz band, including DFS channels. When you use the 2.4 GHz band in a high-density location, you encounter self-interference and channel saturation. When you use the 5 GHz band, you can deploy smaller cells (coverage areas), so you can support more clients in any cell that deploys more than one AP. With the advantages of MU-MIMO technology and 4x4 spatial streams, the UniFi IW HD AP can support more than triple the number of users2 than a typical Wave 1 AP.

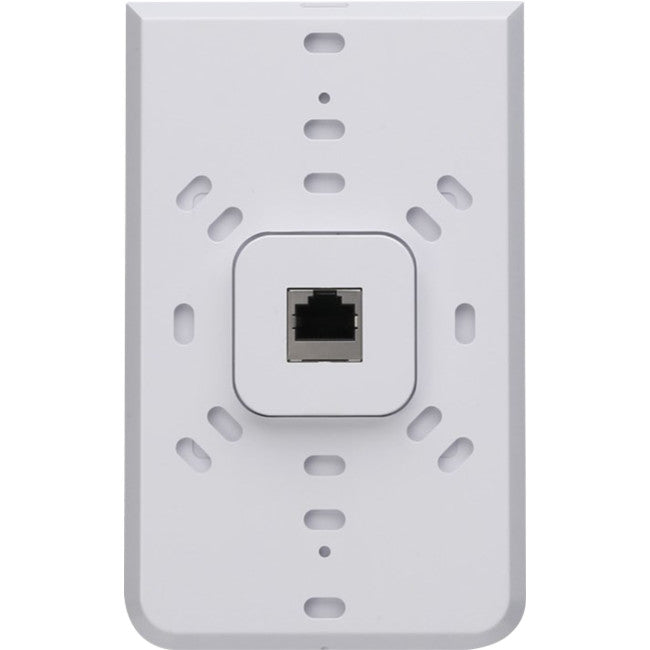

• Easy MountingThe backplate offersmultiple mounting holes for use with a variety of 1-gang electrical wall boxes.
• LEDThe unique provisioning LED provides administrator location tracking and alerts for eachdevice.

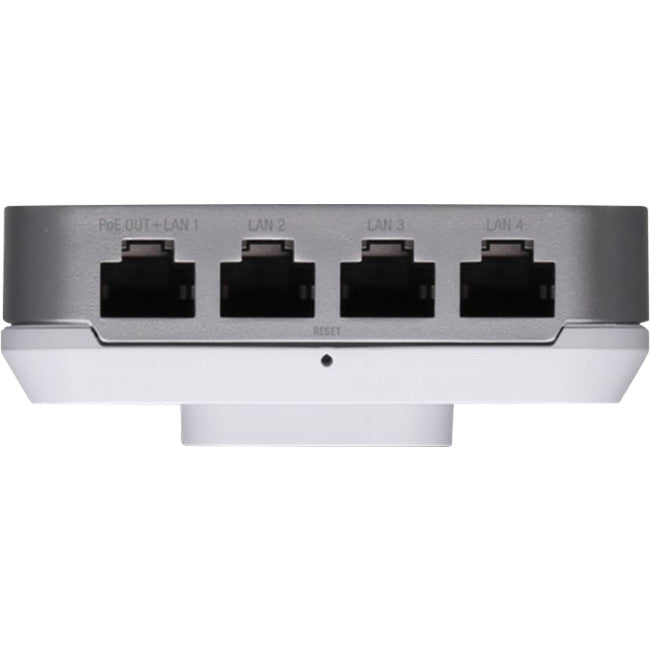

• Secondary Gigabit EthernetFour ports are available for bridging – one of which offersPoE passthrough when the AP is powered by an 802.3at PoE+ switch
• Superior Processing PowerThe UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) thatmay slow down a lesser-equipped AP
• Power over Ethernet (PoE) StandardThe UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately).
• UniFi PoE SwitchAvailable in 8*, 16, 24, and 48-port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto-sensing IEEE 802.3af PoE/802.3at PoE+.

Specifications

Dimensions	139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight	210 g (7.41 oz)
Networking Interface	(5) 10/100/1000 Ethernet Ports
Buttons	Reset
Power Method	802.3af PoE 802.3at PoE+
Supported Voltage Range	44 to 57VDC
Power Supply	UniFi Switch (PoE)
PoE Out	48V Passthrough (Pins +1, 2; -3, 6)
Power Save	Supported
Beamforming	Supported
Maximum Power Consumption with PoE Passthrough	11W 23W (Requires 802.3at PoE+ switch.)
TX Power 2.4 GHz 5 GHz	23 dBm 26 dBm
Antennas Dual-Band Single-Band	(2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each
Wi-Fi Standards	802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
BSSID	Up to 8 per Radio
Mounting	1-Gang Electrical Wall Box (Not Included)
Operating Temperature	-10 to 60°C (14 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Advanced Traffic Management
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	200+
Supported Data Rates (Mbps)
Standard	Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
