TTP111HDPK VIDEO POWER CAT5 TRANSCEIVER TVI AHD CVI CVBS BALUN LONG TTP111HDPK

TTP111HDPK VIDEO POWER CAT5 TRANSCEIVER TVI AHD CVI CVBS BALUN LONG TTP111HDPK

$24.95

Features

Transmit HD-TVI/AHD/HDCVI/CVBS video and power(3 pairs)over one CAT5ecable.

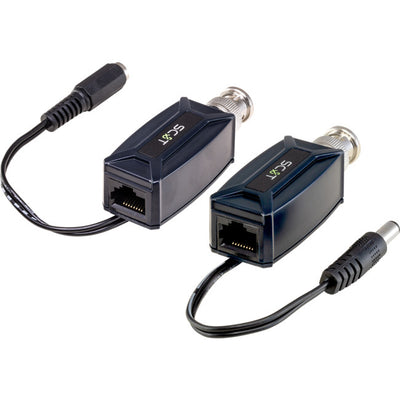

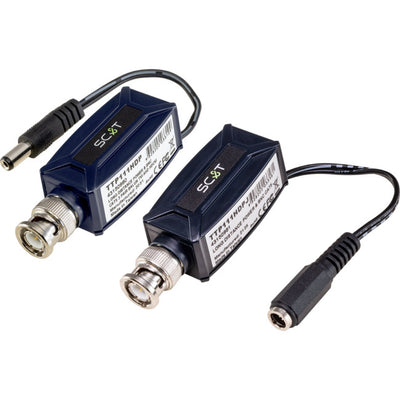

Include 2 units: 1 x RJ45 to BNC with DC power plug, 1 x RJ45 to BNC with DC power jack.
Eliminate coaxial & power cable.
Fast, easy installation, saving time and money.
Substantial saving on the cost of the cable itself.
Built-in ESD, EFT(impulse noise), and transient protection
Transmission distance: 1080P: HD-TVI 250M, AHD 250M, HDCVI300M
4M/5MP/4K: HD-TVI200M, AHD 200M, HDCVI200M CVBS: 400M

Specifications

ITEMNO.		TTP111HDP	TTP111HDPJ
Video Input / Output Terminals	BNC x 1 (1 Vp-p,75 Ohm)
Video Onput / Iutput Terminals	RJ45 x 1 ( 100 Ohm )
Power		DC-PLUG	DC-JACK
Bandwidth	50Hz ~ 60MHz ( -3dB )
Transmission Distance	1080P: HD-TVI 250M, AHD 250M, HDCVI300M 4M/5MP/4K: HD-TVI200M, AHD 200M, HDCVI200M CVBS: 400M
ESD protection	30 KV(Air),15 KV (Contact) ; IEC 61000-4-2 compliant
EFT protection	40A(5/50ns) ; IEC 61000-4-4 compliant
Lightning protection	2A (8/20µs) ; IEC 61000-4-5 compliant
Surge Protection Attack Time	< 1 nS
Environmental Specifications	Operation: 0 to 55°C, Storage: -20 to 85°C, Humidity: up to 95%
Dimension mm	69 x 25 x 20.7 + 140mm power cord
Weight g	37 g

Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.

Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
