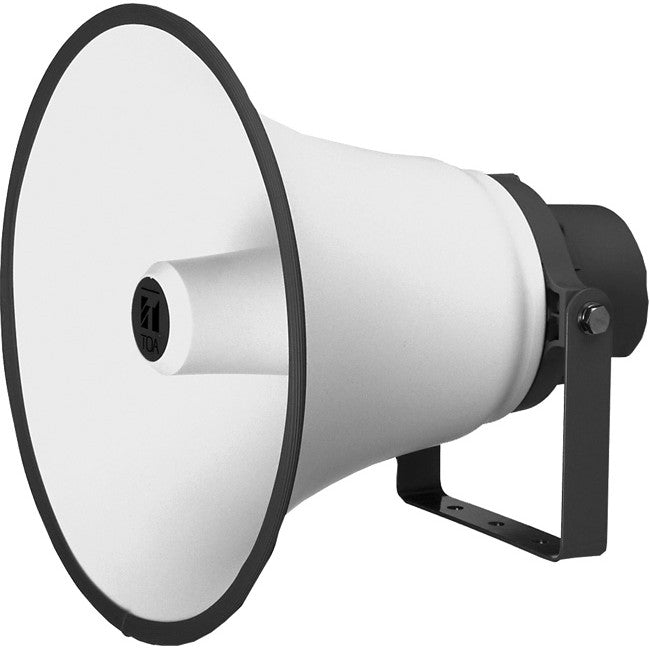

TOA's TC Series reflex horn speakers are designed for both indoor andoutdoor paging applications as well as for background music reproduction.
The TC series is available in 15W and 30W models with high or low impedance connections.
TC-615 | TC-615M | |
Rated Input | 15 W | 15 W |
Line Voltage | N/A | 100 V line or 70 V line |
Rated Impedance | 8 Ω | 100V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W) |
Sound Pressure Level | 108 dB (1 W, 1m) | |
Frequency Response | 250 – 7,000 Hz | |
IP Code | IP 65 | |
Polarity | Hot: Black, Com: White | |
Operating Temperature | -20°C to +55°C (must be free from dew condensation) | |
Finish | Horn flare: Aluminum, off-white, powder coating | |
Reflector horn and rear cover: ABS resin, off-white | ||
Bracket holder: Aluminum, gray, powder coating | ||
Bracket: Steel, gray, powder coating | ||
Rear cover: ABS resin, gray | ||
Screws and bolts: Stainless steel | ||
Speaker cable: Polyvinyl chloride insulated cabtyre cable | ||
(6 mm in diameter, 600 mm inlength) | ||
Dimensions | ø400 (W) x 376 (D) mm | |
Weight | 3 kg | 3.2 kg |
TC-630 | TC-630M | |
Rated Input | 30 W | 30 W |
Line Voltage | N/A | 100 V line or 70 V line |
Rated Impedance | 8 Ω | 100V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W) |
Sound Pressure Level | 110 dB (1 W, 1m) | |
Frequency Response | 200 – 6,000 Hz | |
IP Code | IP 65 | |
Polarity | Hot: Black, Com: White | |
Operating Temperature | -20°C to +55°C (must be free from dew condensation) | |
Finish | Horn flare: Aluminum, off-white, powder coating | |
Reflector horn and rear cover: ABS resin, off-white | ||
Bracket holder: Aluminum, gray, powder coating | ||
Bracket: Steel, gray, powder coating | ||
Rear cover: ABS resin, gray | ||
Screws and bolts: Stainless steel | ||
Speaker cable: Polyvinyl chloride insulated cabtyre cable | ||
(6 mm in diameter, 600 mm inlength) | ||
Dimensions | ø500 (W) x 463 (D) mm | |
Weight | 4.1 kg | 4.5 kg |
