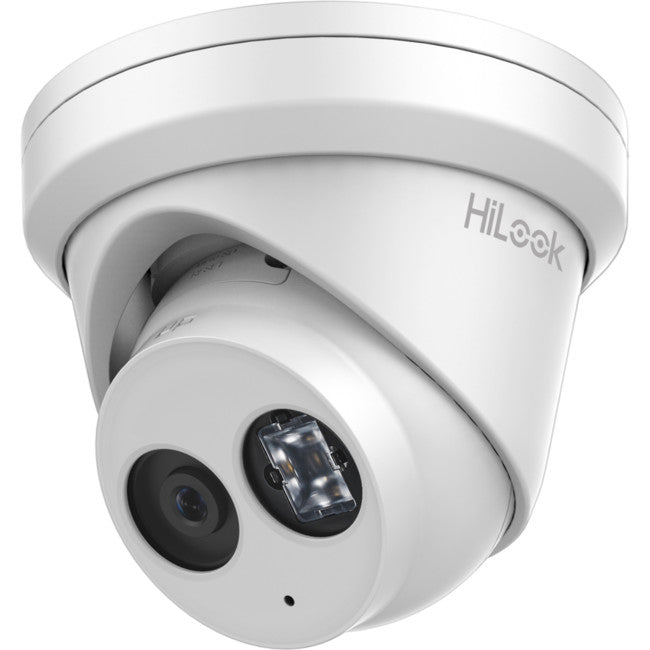

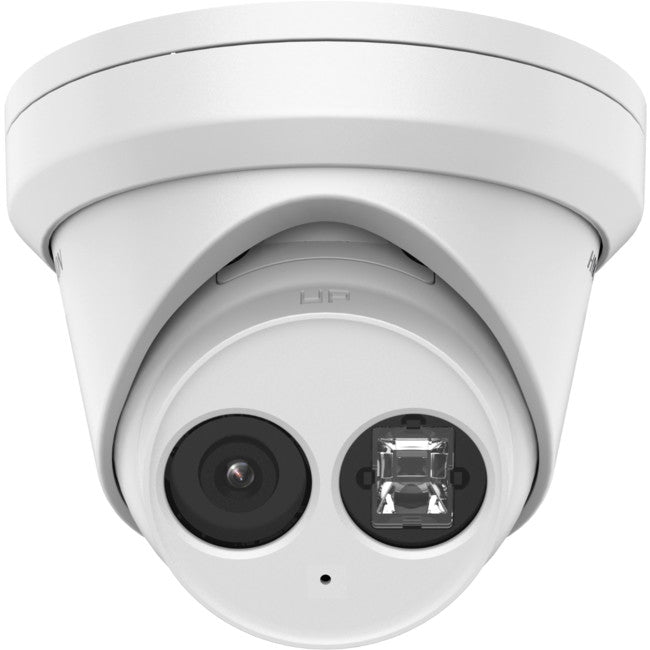

T261H 2.8MM 6MP TURRET CAMERA HILOOK HILOOK 43161703

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

6 MP AI Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Camera

• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Max. Resolution3200 × 1800

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
  • 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
  • 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Iris TypeFixed
• ApertureF1.6
• Lens MountM12

DORI

• DORI
  • 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
  • 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

Illuminator

• Supplement Light TypeIR
• Smart Supplement LightYes
• IR Wavelength850 nm
• IR RangeUp to 30 m
• Supplement Light RangeUp to 30 m

Video

• Max. Resolution3200 × 1800
• Main Stream
  • 50 Hz: 20 fps (3200 × 1800)
  • 25 fps (2688 × 1520, 1920 × 1080, 1280× 720)
• Sub Stream50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360)
• Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640× 480, 640 × 360)

*Third stream is supported under certain settings.

• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264

*Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main streamand sub-stream

Audio

• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48kHz
• Environment Noise Filtering-U: Yes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator,operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2,WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)120 dB

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In Microphone-U: yes
• Hardware ResetYes

Event

• Basic EventMotion detection (human and vehicle targetsclassification), video tampering alarm, exception
• Face DetectionYes
• Smart Event
  • Line crossing detection, intrusion detection
  • Supports human and vehicle targets classification
  • Face detection
• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function

• Perimeter Protection
  • Line crossing detection, intrusion detection
  • Supports human and vehicle targets classification

General

• Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Camera MaterialAluminum alloy body
• Camera DimensionØ127.3 mm × 95.9 mm (Ø5.0" × 3.8")
• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Camera WeightApprox. 600 g (1.3 lb.)
• With Package WeightApprox. 909 g (2.0 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Web Client Language

  33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
• Firmware VersionV5.5.113
• Software ResetYes
• Power Consumption And Current
  • 12 VDC, 0.5 A, max. 6 W
  • PoE (802.3af, 36 V to 57 V), 0.20 A to 0.13 A, max. 7.5 W
• Power Supply
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3af, Class 3
• Power InterfaceØ5.5 mm coaxial power plug
• Power
  • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
• Language

  33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
