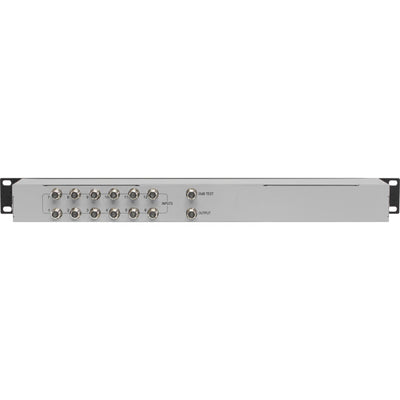

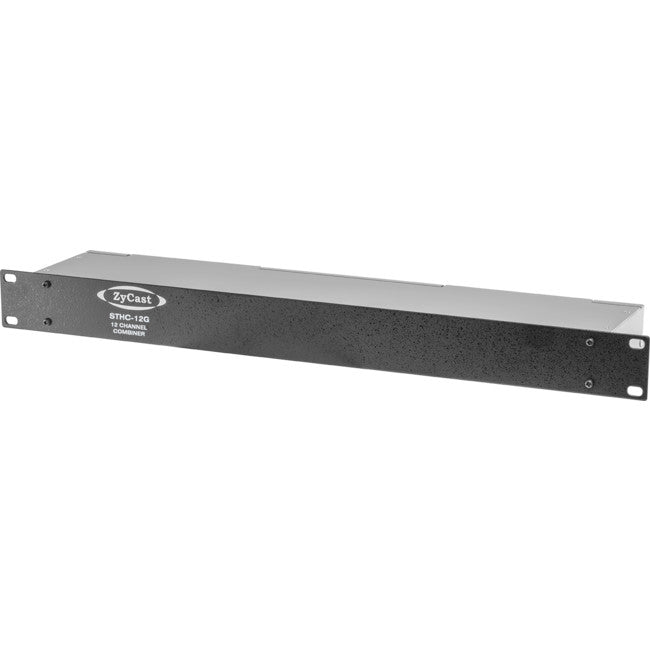

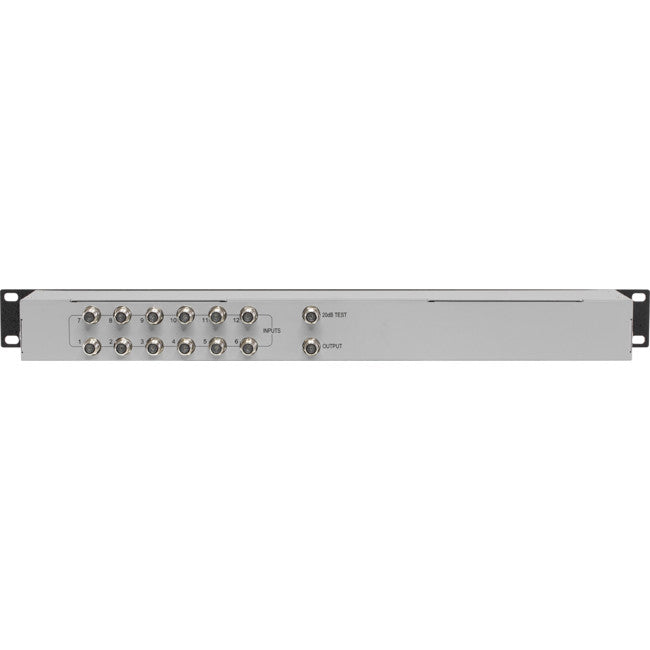

STHC12G 12 PORT PASSIVE COMBINER COMBINES 12 INPUTS TO 1 OUTPUT RESI-LINX STHC-12G

Features

12 channel combiner takes 12 RF inputs and combines them into 1 output.

Features one 20dB test port.

Specifications

Bandwidth 40-1000MHz
Input Number 12 ports
Impedance 75 Ohms
Insertion Loss

19 dB typical @40-450 MHz

21dB typical @450-1000MHz

Input Return Loss

16 dB typical @40-450 MHz

16 dB typical @450-1000MHz

Output Return Loss

16 dB typical @40-450 MHz

16 dB typical @450-1000 MHz

Port-to-pot Isolation Adjacent Ports 30 dB typical
Port-to-port Isolation Opposing Ports 40 dB typical
Test Port -20 dB
Connectors F type
