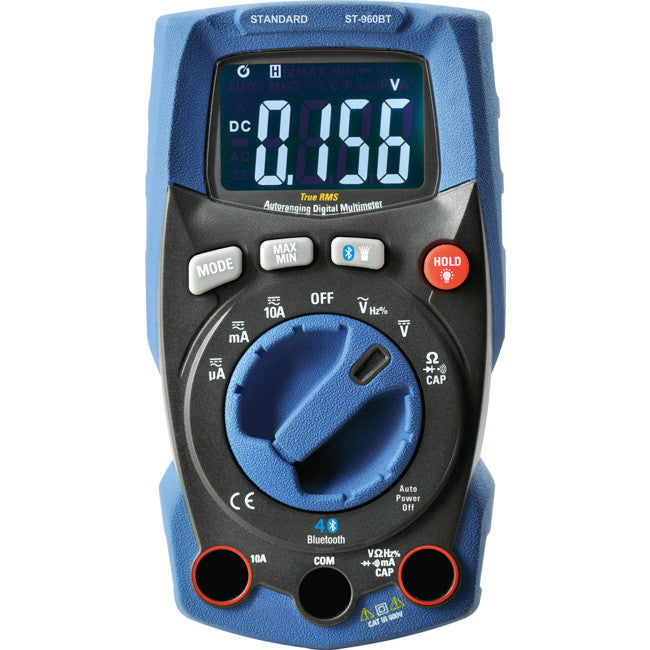

This Autoranging True RMS Multimeter with Flashlight andBluetooth function. Bluetooth connectivity provides a host of advanced monitoring and data logging functionality without fuss. The ST960BT will also interface with your smart phone over the Bluetooth App, "Meterbox Pro", which can be downloaded from the App Store and Google Play.
Features:
- Bluetooth V4 Connectivity
- IP65 Waterproof & 2m drop-proof
- Heavy duty & compact size
- Built-in flashlight & stand
- Supplied with test leads & 2x AAA batteries
Specifications:
Product Dimensions
| Height | 121mm |
| Width | 67mm |
| Depth | 35mm |
Digital Multi-Meter
| Count / Maximum Reading | 4000 count |
| True RMS | |
| Autorange | |
| Measures duty cycle | |
Meter Safety Rating
| Safety Rating Cat | Cat III |
| Safety Rating Max Volt | 600V |
Meter Data Control
Meter PC Interface
Measures Voltage DC
| DC Volts Measurement Range | 400V |
| DC Voltage Ranges | 400mV,4V,40V,400V,600V |
| DC Voltage Accuracy | 1.5% |
Measures Current DC
| DC Current Ranges | 400µA,4000µA,40mA,400mA,10A |
| DC Current Accuracy | 1.5% |
Measures Voltage AC
| AC Voltage Ranges | 4V,40V,400V,600V |
| AC Voltage Accuracy | 1.5% |
Measures Current AC
| AC Current Ranges | 400A,4000µA,40A,400mA,10A |
| AC Current Accuracy | 2.0% |
Measures Continuity
Measures Resistance
| Resistance Accuracy | 1.5% |
| Resistance Ranges | 400O,4kO,40kO,400kO,4MO,40MO |
Measures Capacitance
| Capacitance Ranges | 40µF,400nF,4µF,40µF,400µF,4000µF |
| Capacitance Accuracy | 5.0% |
Measures Temperature
| Measures in Celcius | |
| Operating temperature | 5-40°C |
| Storage temperature | -20-60°C |
| Measures in Fahrenheit | |
Sensor Temperature Probe
| Sensor Type | K-Type Thermocouple (not included) |
| Connection to Meter | Mini-Marlin Plug with Banana Plug Adaptor (not included) |
Measures Frequency
| Frequency Ranges | 9.999Hz,99.99Hz,999.9Hz, 9.999kHz, 99.99kHz, 500.00kHz |
| Frequency Accuracy | 1.0% |
Meter
| Input Protection Fuse | 10A |
| Meter Input Impedence | 10MO |
| Weight | 140G |
| Casing | Rubber |
| Special Features | LED Torch |
Please note you need to pair the multimeter from the APP, not from the Bluetooth setup in the smartphone.
Instructions to pair the multimeter with the smartphone:
- Download the APP
- Switch on your Bluetooth, but do not pair with the meter
- Launch the MeterboxPro APP
- Choose connect device box
- Find the ST960 meter in the list
- Pair the multimeterwith the smartphone
