Features

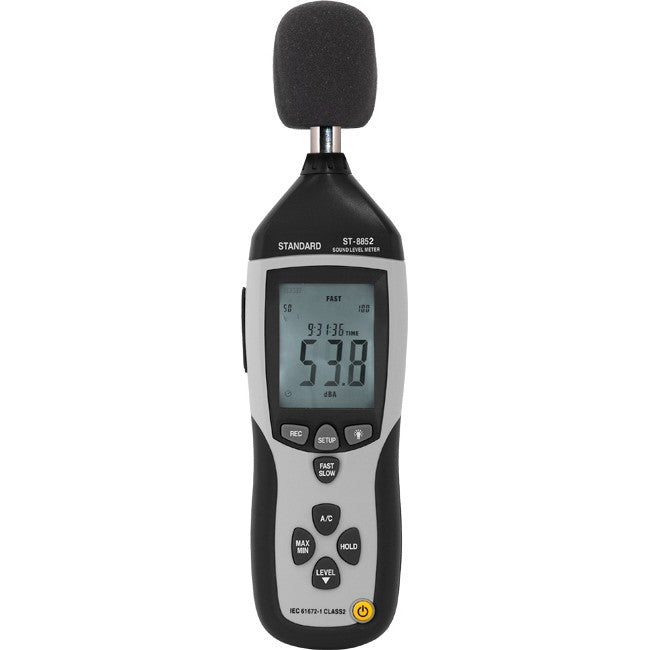

ST8852 is similar model as ST8851, but with Datalogger function.
ST8852 is similar model as ST8851, but with Datalogger function built-in. ST8852 is designed for noise project; quality control; illness prevention and cure and all kinds of environmental sounds measurement. It is applied to the sounds measurementat factory; school; office; traffic access and household, etc.
Features
- Conforms to the IEC61672-1 CLASS2 for Sound Level Meters
- MAX & MIN measurements
- Over range display
- Under range display
- A & C Weighting
- FAST & SLOW response
- Analog AC/DC outputs for connection to frequency analyzer or X-Y shaft recorder
Specifications
-
Standard applied:IEC61672 -1 CLASS2
-
Accuracy:1.4dB
-
Frequency range:31.5HZ ~ 8KHZ
-
Dynamic range: 50dB
- Memory: 32700 readings
-
Level ranges:Lo: 30dB ~ 80dB
-
Med: 50dB~100dB
-
Hi: 80dB ~ 130dB
-
Auto: 30dB ~ 130dB
-
Frequency weighting: A/C
-
Time weighting:FAST (125ms), SLOW (1s)
-
Microphone: 1/2 inch electret condenser microphone
-
Display: 4 digits LCD display with a resolution of 0.1dB
-
Display Update:2 times/sec.
-
MAX hold: Hold the Maximum reading
-
MIN hold: Hold the Minimum reading
-
HOLD:Hold the readings
-
Alarm function: "OVER" is when input is more than upper limit of range. "UNDER" is when input is less than lower limit of range.
-
Analog output: AC/DC outputs from earphone outlet AC=1Vrms ,DC=10mV/dB
-
Data output:USB data traffic
-
Auto power off:Meter automaticallyshuts down after approx. 15 minutes of inactivity.
-
Power supply: One 9V battery included, SM905 with PW8025 1.7mm DC tip. (optional)
-
Power life: About 30 hours
-
Operation temperature and humidity:0°C ~ 40°C, 10% RH ~ 90% RH
-
Storage temperature and temperature:? -10°C ~ +60°C, 10% RH ~ 75% RH
-
Dimension: 278 (L) x 76 (W) x 50 (H) mm
-
Weight: 350g
-
Accessories: Instruction manual, battery, screwdriver, 3.5mm earphone plug, windscreen, software( WIN 95,98,ME,NT,2000,VISTA ), USB cable.
Download
Download the ST8852 manual(
PDF file 500kB)
