SRT5437 HD DIGITAL SET TOP BOX REC - PLAY VIA USB STRONG SRT5437

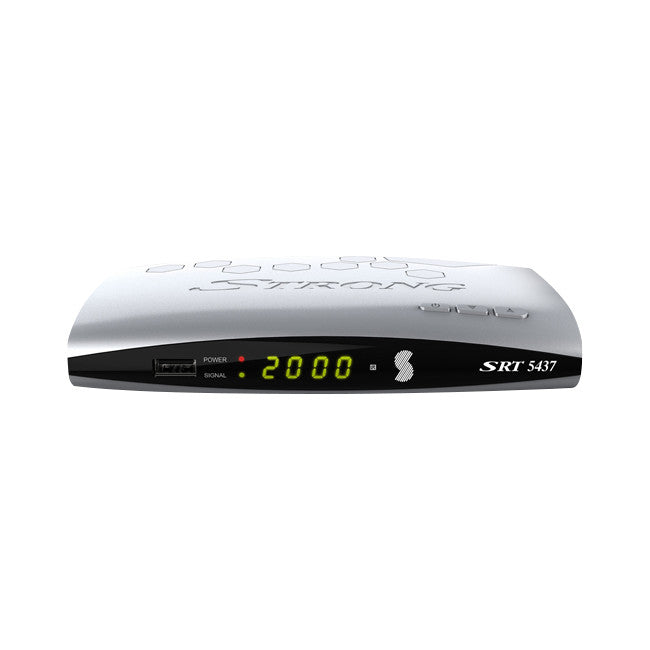

Strong - SRT5437 HD digital set top box with record function & multimedia playback via USB

High Definition Digital Set Top Box, with Digital Video Recorder ability - Record up to 500 hours of live TV. STRONG's High Definition Digital Set Top Box with Record function (SRT 5437) gives any TV, even older analog TV access to Digital TV. Get access to all the latest Digital channels, with this easy to install Box. You can record directly to a USB Hard Drive and never miss your favorite show again.

Did you know that you can use this unit for Multimedia playback? Using the USB located on the front of the unit you can watch movies, photos and listen to music. Turn your TV into a Media Centre.

Features:

  • High Definition, MPEG4 DVBT-2, access all available Digital TV Channels
  • Record to USB - up to 500 hours of recording on 1TB (Hard drive not supplied)
  • Play HD Movies, music and photos on your HD TV; via USB
  • Record one program while watching another from the same network ie; Record ABC1 and watch ABC24.
  • Pause & Rewind Live TV
  • Access the latest Digital Channels
  • Electronic Program Guide - EPG

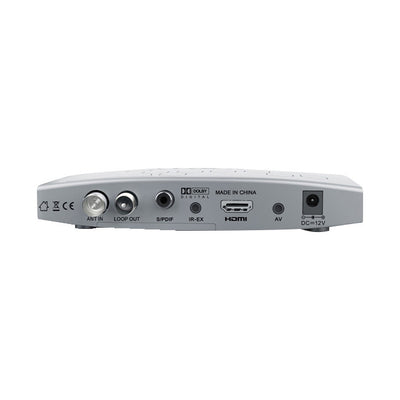

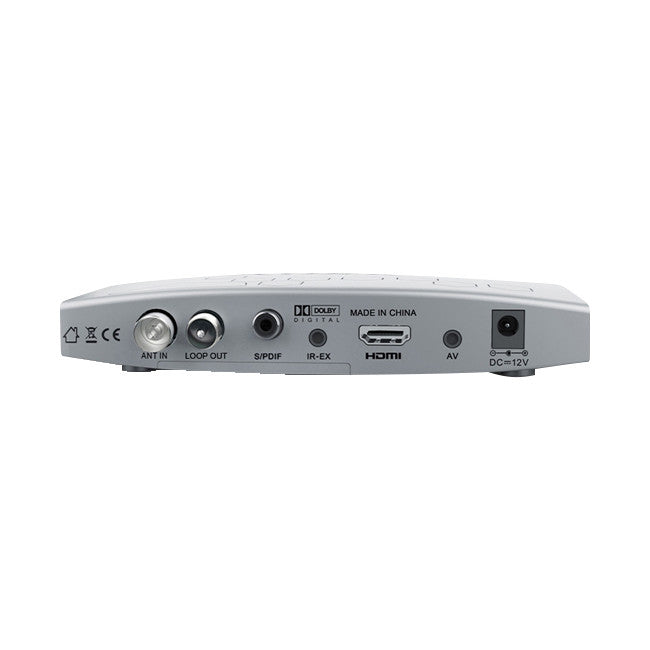

  • Multiple Outputs; HDMI & Composite
  • Comes with a learning Remote, allowing you to control your TV and set top box with one handy, easy-to-use remote
  • 1 x USB port for recording, Software updates and Multimediaplayback
  • Auto & Manual Channel Search
  • Favorite Channel List
  • MEPS Compliant and Parental Lock

To access your own Media files, simply plug in your External USB Hard Drive (up to 1TB not supplied), to the USBport on your SRT5437. Files can be accessed via the USB button on the remote. There is also handy Rewind, Fast Forward, Play, Pause andStop buttons as well.

To record your favorite TV Shows, set your recording up via the EPG or Manual Timer. To Playback recorded programs simple access via the USB button on remote.

Audio/Video IN/OUTPUT
Audio Coaxial digital audio output/ SPDIF
Audio L/R RCA/Cinch, Volume and Mute control/

USB USB 2.0 Host (USB Port x 1 Front Panel), A-type
Video RCA/Cinch, Video Outputs (CVBS) @576I OR480I
  HDMI 1.3(High Definition Multimedia Interface)SUPPORT HDCP
Data Port
USB USB 2.0 Host (USB Port x 1 Front Panel), A-type
General Data
Dimensions W150 x D90 x H30mm (D110mm with connections)
Weight 0.3Kgs (30grams)
Hard Disk - Not Supplied
Hard Disk - Not Supplied Not supplied, Will support 1 TB External USB Hard Disk Drive: NTFS or Fat32 File system
MPEG Transport Stream & AVDecoding
Aspect Ratio 4:3, 16:9
Audio Decoding MPEG-2 Layer I & II (Music Cam), MPEG4 AAC andMPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up tp 640K bits/s, LPCM up to 48KHz, MP3
Audio Mode Stereo/Joint Stereo/Mono
Profile Level MPEG-1/2 MP@ML, H.264 DivX & MPEG4
Sampling Rate 32KHz, 44.1KHz & 48KHz
Video Formats JPEG, BMP, PNG, AVI, MKV, MP4, OGG, TS
Video Resolution 576i, 576p, 480i, 480p, 720p60, 1080i, 1080p
MPEG TS A/V Decoder
Transport Stream MPEG-2 ISO/IEC 13818-1
Video RCA/Cinch, Video Outputs (CVBS) @576I OR 480I, HDMI 1.3(High Definition Multimedia Interface)SUPPORT HDCP
Power Supply
Input voltage AC100~240V (Detachable)
Output voltage DC12V
Power Consumption Standby <1W, on mode Max 6W (without DVR)
Tuner
Carrier Mode 1k,2k,4k,8k,16k,32k mode
Code Rate 1/2,3/5,2/3,3/4,4/5,5/6
Frequency Range 177.5-226.5MHz (VHF) BW=7Mhz | 474-8585MHz (UHF) BW =8Mhz
Guard Interval Modes 1/4,1/8,1/16,1/32,1/128
IF Bandwidth 7 MHz
Input Impedance 75 ohm

  • 1 x SRT 5437Digital Set Top Box
  • 1 x User Manual
  • 1 x Remote Control & Batteries
  • 1 x Power cable |
  • 1 x 1.2m HDMI cable (for optimal picture quality HDMIcable is recommended)
