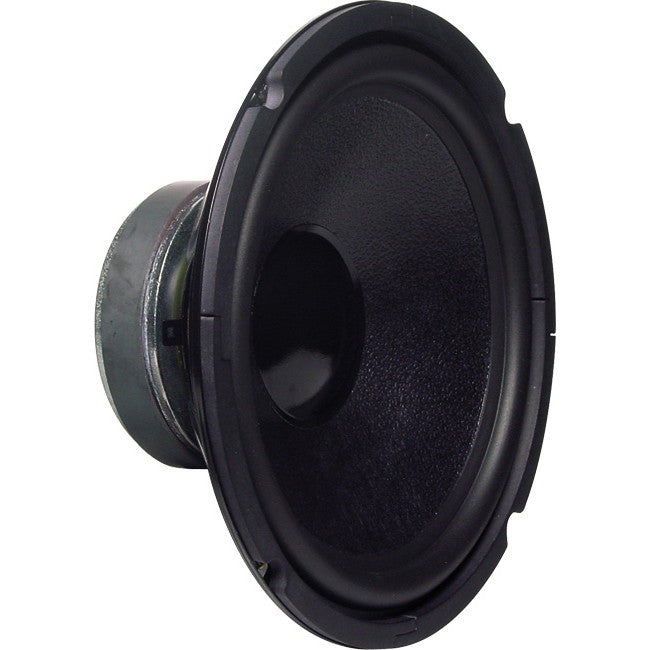

Speaker Pecc Woofer 10"
- This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).
- All voice coils are wound on aluminium formers, and magnet pole pieces are vented for heat dissipation. Bump back plates are employed to prevent voice coil over-excursion.
- These drivers are suited to bass oriented enclosures, such as home theatre or car audio subwoofer enclosures.
Specifications
- Rated Input Power: 80W RMS
- Max Input Power: 140W
- Impedance (300Hz): 8Ω
- Frequency Resp: 28Hz-2kHz
- Resonant Frequency: 28Hz
- Sensitivity 1W @ 1m: 93dB
- Voice Coil Diameter: 35.5mm
- QMS: 2.83
- QES: 0.27
- QTS: 0.25
- VAS: 135L
- Nett Weight: 2.4kg
- Magnet Weight: 848g
- Cutout Diameter: 233mm
- Mounting Depth: 122mm
- Suggested Vented Enclosure (Tuned to 30Hz) Volume: 40LPort: 70mmØ x 100mmL
- Suggested Sealed Enclosure Volume: 30L
