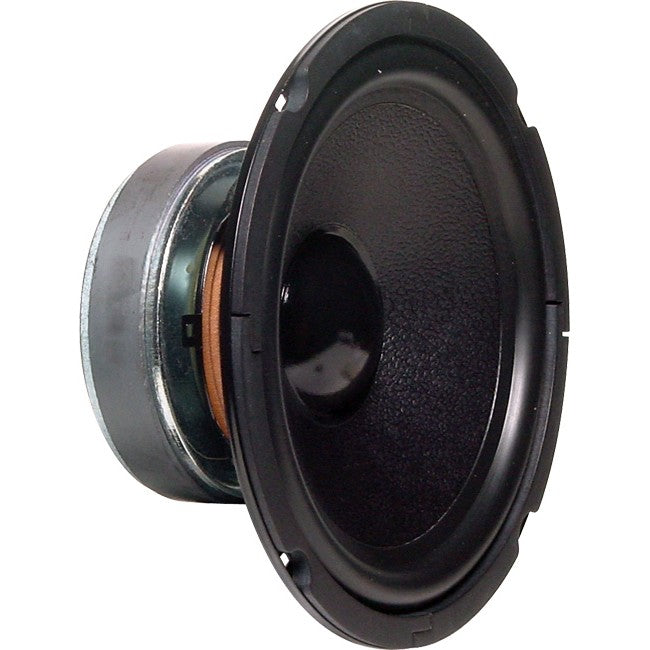

100W 8" Woofer PECC Speaker
- This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).
- All voice coils are wound on aluminium formers, and magnet pole pieces are vented for heat dissipation.
- Bump back plates are employed to prevent voice coil over-excursion.
- These drivers are suited to bass oriented enclosures, such as home theatre or car audio subwoofer enclosures.
Specifications:
- Rated Input Power: 60W RMS
- Max Input Power: 100W
- Impedance (300Hz): 8Ω
- Frequency Resp: 35Hz-6kHz
- Resonant Frequency: 35Hz
- Sensitivity 1W @ 1m: 91dB
- Voice Coil Diameter: 35mm
- QMS: 2.87
- QES: 0.28
- QTS: 0.25
- VAS: 48L
- Nett Weight: 2.22kg
- Magnet Weight: 848g
- Overall Diameter: 205mm
- Cutout Diameter: 183mm
- Mounting Depth: 85mm
- Suggested Vented Enclosure (Tuned to 30Hz) Volume: 25LPort: 50mmØ x 179mmL
- Suggested Sealed Enclosure Volume: 25L
