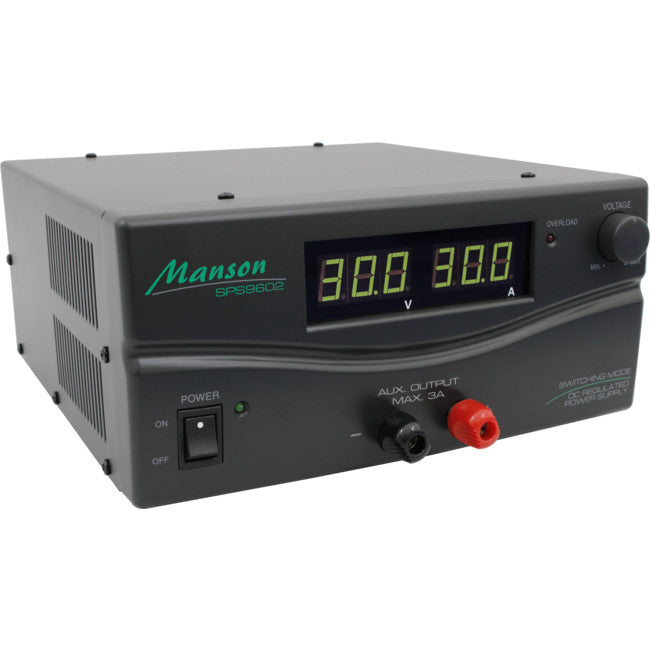

SPS9602G 1-30V 30A DC POWER SUPPLY SWITCHMODE BENCH TOP DARK GREY MANSON SPS9602

This high current switching mode DC regulated output power supply is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.

The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply.

The output voltage level and ON-OFF can be externally controlled via the remote terminal.

It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.

SPS-9602 has a small footprint for its 900W continuous maximum power.

It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.

Features:

  • Total max. continuous output current 30A

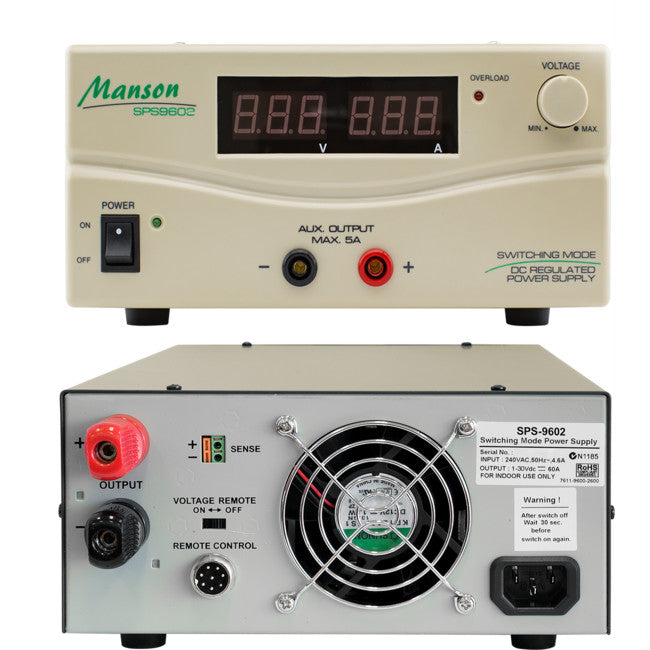

  • Main Output/Remote Sensing/ Remote Control/ terminalsat the back
  • Front terminals  3A limiting.
  • ( Precise Load Point Voltage )
  • Remote Sensing for remote point of regulation.
  • Remote control terminals for output voltage adjustment and*on/off"
  • 29HR Count Down Timer (Optional) for Output ON/OFF
  • Floating Ground Design
  • Overload / Over-temperature / Short Circuit Protections
  • Constant Current mode with LED indicator prevents overloading
  • Variable speed thermally controlled fan
  • High RFI stability
  • Active power factor correction ( P.E >0.97 )

Specifications:

  • Variable Output Voltage: 1- 30Vdc
  • Total Rated Output Current (Main Output + Front Output):  30A
  • Rated Output Current (Main Output):  30A
  • Rated Output Current (Front Output):  3A
  • Load Regulation (Main Output): 0.1%+5mV
  • Line Regulation (Main Output): 0.05% +3mV
  • Ripple & Noise (Peak-Peak): 50mVp-p
  • Input Voltage: 230Vac , 50Hz-
  • Efficiency: >85%
  • Meter Type: LED Meter
  • Voltmeter Range: 3 digit display
  • Ammeter Range: 3 digit display
  • Meter's Accuracy: ±I% +1 count
  • Protection Devices: Overload (Constant Current Limiting), Over Temperature, Short Circuit,
    OVP protections
  • Cooling System: Variable speed thermally controlled fan
  • Special Feature: Remote sensing, Remote output voltage control and *on/off*
  • Approvals CE EMC : EN 55022 , LVD : EN 60950
  • Dimensions (W:x H xD): 220 x 110" 360 mm (8.7" 4.3" 14 in.)
  • Weight: 5.8kgs ( 12.81bs )
  • Remarks: Power factor correction >0.95 at optimal load
