SPS9600G 60AMP 1-15V DC POWER SUPPLY BENCH TOP DARK GREY MANSON SPS9600 DARK GREY

This high current switching mode DC regulated dual outputpower supply is designed with a high efficient active power factor corrector. The constant current limiting protection allows the outpu current to remain stable but theoutput voltage decreases to a level that permits safe operatio of the power supply.

The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level can be externally controlled via the remote terminal. It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.
The SPS-9600 has a small footprint for its 900W continuous maximum power and is suitable for a wide range ofapplications such as street blaster super high power car audios demonstration console, radio equipment and etc.

  • Total max. continuous output current 60A (SPS-9600)

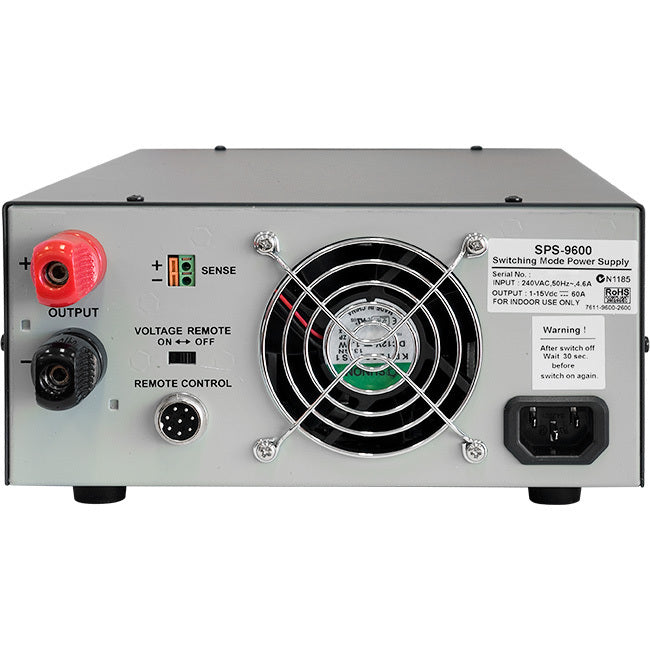

  • Main Output /Remote Sensing/ Remote Control/ terminals at the back
  • Front terminals 5A limiting
  • Adjustable output voltages 1 to 15V DC
  • Remote Sensing for remote point of regulation
  • Remote control terminals for output voltage
  • Light weight and small size
  • Overload / Over-temperature /Short Circuit Protections
  • Constant Current mode with LED indicator prevents overloading
  • Variable speed thermally controlled fan
  • High RFI stability
  • Power factor correction >0.97
{tab Specifications}
  • Variable Output Voltage: 1 - 15V DC
  • Total Rated Output Current (Main Output + Front Output): 60A
  • Rated Output Current (Main Output): 60A
  • Rated Output Current (Front Output): 5A
  • Load Regulation (Main Output): 0.1% +5mV
  • Line Regulation (Main Output): 0.05% +3mV
  • Ripple & Noise (Peak-Peak): 40mV p-p
  • Input voltage: 230V AC
  • Efficiency: > 85%
  • Meter type: LED Meter
  • Volt meter range: 3 digit display
  • Amp meter range: 3 digit display
  • Meter accuracy: ±1% +1 count
  • Protection devices: Overload ( Constant current limiting ), Short circuit, Over temperature, OVP
  • Cooling system: Variable speed thermally control fan
  • Special feature: Remote sensing , Remote control
  • Approvals: CE - EMC:EN55022 , CE - LVD:EN60950
  • Dimensions: 220mm(W) x 110mm(H) x 360mm(D)
  • Weight: 5.8 Kgs
  • Power factor correction >0.97 at optimal load
