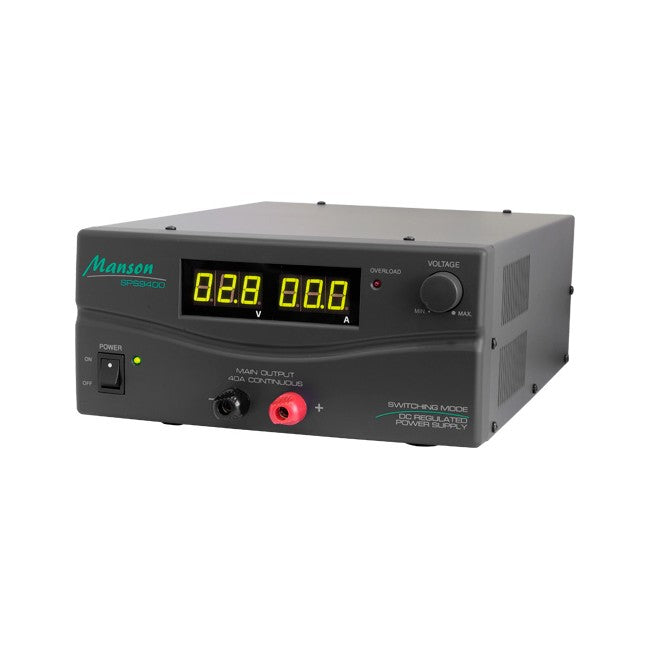

This series of HIGH POWER SWITCHING MODE DC REGULATED POWER SUPPLIES provides high current 40 Amps output in a lightweight and compact size case. They are suitable for a wide range of uses, such as radio equipment, and are ideal for high power car stereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, over temperature, and over voltage protection are standard.
| Variable Output Voltage | 3V to 15V DC |
| Fixed Output Voltage Mode | 13.8V DC |
| Rated Output Current | 40A |
| Ripple and Noise (P-P) | 50mV |
| Load Regulation | 200mV |
| Line Regulation | 50mV |
| Input Voltage | 230V AC / 50Hz |
| Efficiency | >78% |
| Meter Type | LED Meter |
| V meter Range | 3 digit display |
| A meter Range | 3 digit display |
| Meter Accuracy | 1% + 2 Digits |
| Protection Devices | Overload, Short Circuit, Over Temperature, OVP |
| Cooling System | Variable Speed Thermally Control Fan |
| Approvals | CE EN61558, EN60950, EN55022, EN55011 |
| Dimensions (W×H×D) | 220mm × 110mm × 300mm |
| Weight | 3.5kg |
| Remarks | Power factor correction >0.95 at optimal load |
