Overview

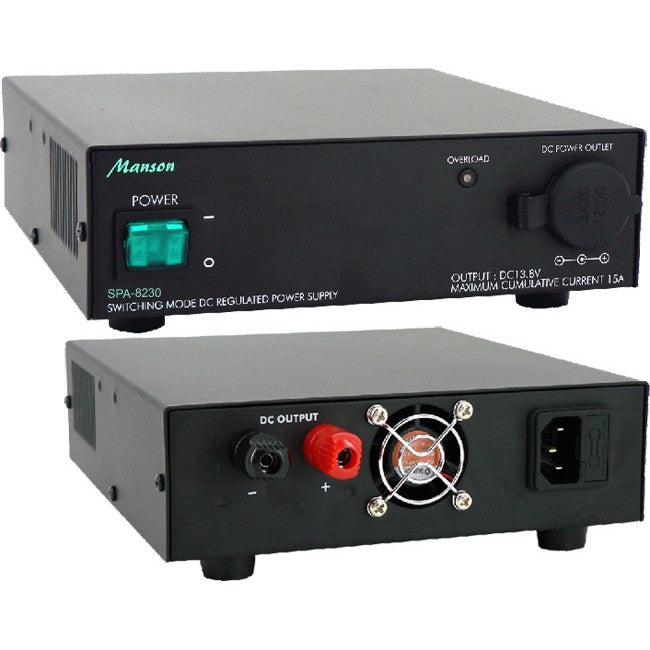

23A CONT 25A MAX 13.8V POWER SUPPLY
BENCH TOP – DARK GREY
- This series of convection cooled switching mode power supply is designed for radio equipment.
- It is exceptionally immune to Radio Frequency Interference at close range.
- Heat is dissipated from the heat sink and the aluminum base for efficient natural cooling.
- It has the small footprint of popular radio transceivers, and the low profile casing make it fall in place with a host of equipment in a tight spot.
- The constant current protection, over temperature protection with constant current and output Over Voltage Protection (OVP) ensure better reliability and safer protection to both the power supply and its connected load.
- One main DC output at rear and a front mounted cigarsocket provide convenient DC connectivity.
- It has excellent line and load regulation, low ripple and noise, optimal efficiency of 80% and a power factor of 0.7
Features:
- High RFI immunity
- Fan cool
- Binding pole and cigar socket DC output
- Over Load, Short Circuit, Over Temperature protections by constant current circuitry
- Output Over Voltage Protection
- Power Factor Control
- User adjustable fine tune setting 13.3V to 14.5V (SPA-8230) & 26.6V to 29V (SPA-8232)
Specifications
Specifications:
| Output Voltage | Fixed 13.8V DC ±0.5V |
| Output Current (Main Output Posts) | 23A Cont., 25A Max. (1 min. 50% duty cycle) |
| Output Current (Main output posts + Cigar Socket) | 23A Cont., 25A Max. (1 min. 50% duty cycle) |
| Ripple & Noise | ≤50mV p-p, 5mV RMS |
| Load Regulation | ≤100mV (0 - 100% Load) |
| Line Regulation | ≤50mV (±10% Variation) |
| Input Voltage | 230V AC, 50Hz- |
| Indicators | Red Color Overload LED Indicator |
| Cooling System | Fan Cool |
| Operating Temperature | 0°C to 40°C |
| Protections | - Over Load
- Over Temperature
- Short Circuit protections by Constant Current Circuitry
- Output Over Voltage Protection
|
| Approvals | - CE EMC: EN 55022
- LVD: EN 60950
|
| Dimensions (W×H×D) | 181mm × 63mm × 190mm (7.2″ × 2.5″ × 7.5″) |
| Weight | Approx. 1.55kgs (3.4lbs) |
