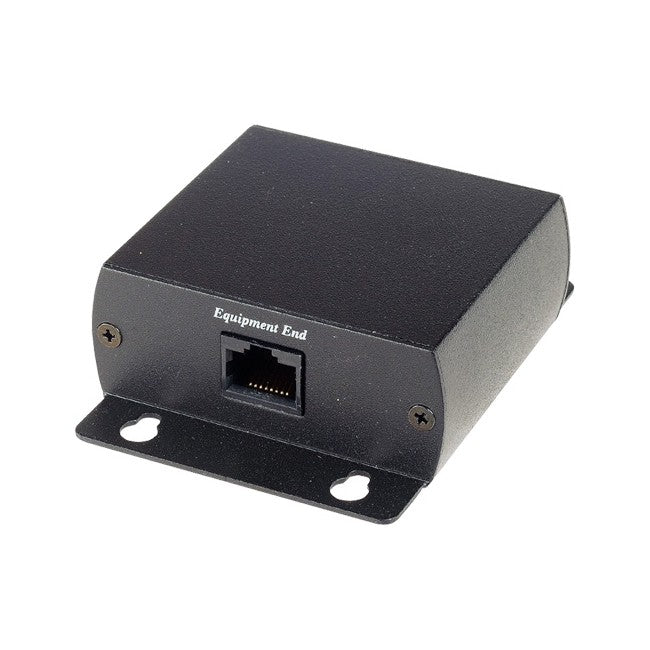

SP006 NETWORK SURGE PROTECTOR

SP006 NETWORK SURGE PROTECTOR

SP006 SURGE PROTECTOR

Specifications:

  • RJ45 Jack to RJ45 Jack, Hi Frequency for both CCTV and CATV use
    • Four Pairs protection
  • Surge Protection Attack Time: 1 ns
    • Maximum Surge Current:4 KV
    • Surge Life:300 surges of 100Amps
  • Normal Resistance Across Coax: 10,000 M£[
    • Surge ResistanceApprox: 0£[
  • BAND PASS: 0~1 GHZ
  • Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps
    • Insertion Loss:Less than 0.2 dB
    • Return Loss (75 ohms):16dB
  • Return Loss (75 ohms): 16dB
    • Dimension: 87 x 67 x 27 mm
    • WEIGHT: 134g

Features:

  • Performs a different function than grounding requirements.
  • Protects equipment from high voltage surges from nearby lightning strikes.
  • Two stage protection: under 1ns-90V, over 10ns-12V.
  • Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR...etc.
  • Protects UTP Twisted Pair transmission products.

Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.

Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
