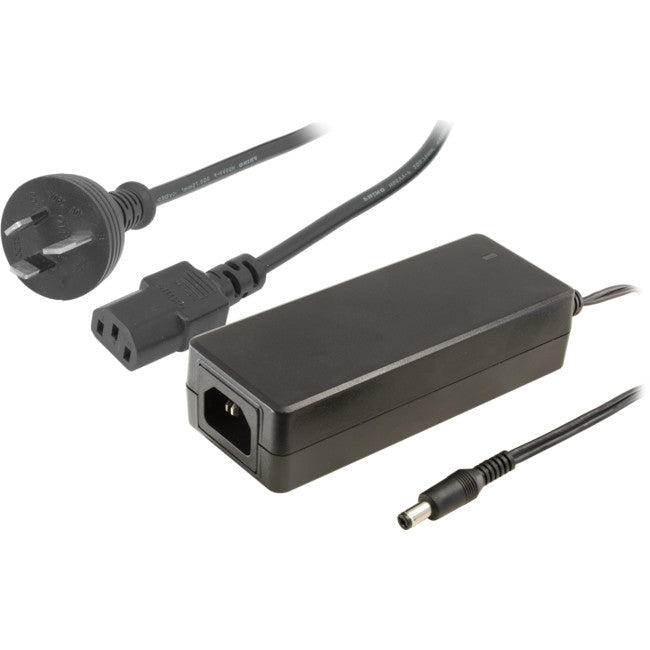

SM2030 20V DC 3A POWER SUPPLY SWITCHMODE 2.1MM FIXED DOSS

SM2030 20V DC 3A POWER SUPPLY SWITCHMODE 2.1MM FIXED DOSS

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Features:

  • Output Voltage: 20V
  • Output Current: 3A
  • Total output power: 60 Watts
  • 2.1mm DC Plug
  • 1.8m K9 IEC lead included
  • Fully Australian Approved
  • Short circuit protection: A short circuit placed on DC output cause no damage or auto-recovery to the power supply.
  • Over Volatage protection: When overvoltage occurs on DC output cause no damage or auto-recovery to the power supply

Rating Label

Specifications

    Input
  • Input voltage rating: 100-240V AC
  • Input voltage range: 90-264V AC
  • Input frequency rating: 60/50 Hz
  • Input frequency range: 63/47 Hz
  • AC input current: 1.8 A Max. @100V AC
  • AC input power saving: 0.3W Max.@230V AC at no load
  • Inrush Current:60 A Max .@100VAC (Cold start)
  • 90 A Max .@230VAC (Cold start)
  • Leakage current: 0.25mA Max
  • Operating temerature: 0°C-40°C
  • Storage temperature: -25°C - 85°C
  • Operating humidity" 8% to 90%
  • Storage humidity: 5% to 95%
  • Weight 277.8g

  • Output
  • Output voltage: 20V
  • Max. load current: 3A
  • Min. load current: 0A
  • Output noload voltage: 20V ± 5%
  • Output full load voltage: 20V ± 5%
  • Output ripple & noise: 300mV max
