SK2500C TERRESTRIAL TV SIGNAL METER SATKING SATKING 9616

SK2500C TERRESTRIAL TV SIGNAL METER SATKING SATKING 9616

Overview

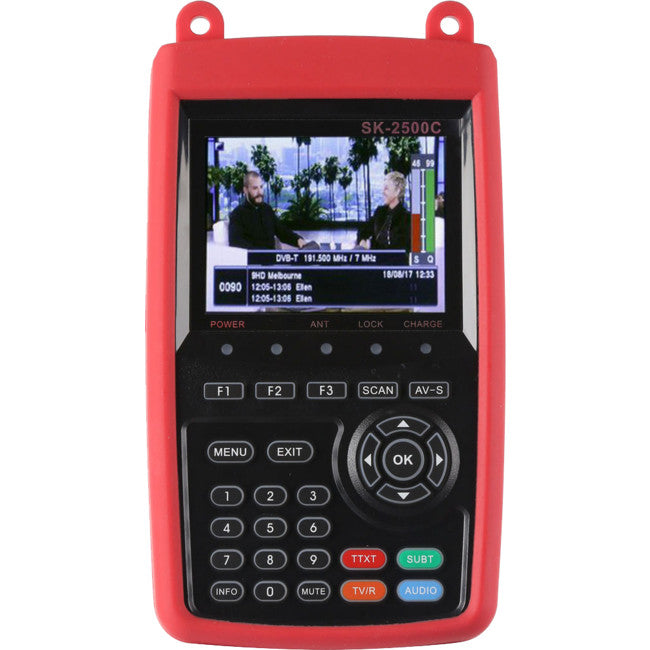

SK2500C TERRESTRIAL TV SIGNAL METER

The SatKing SK-2500 is high definition terrestrial TV meter specially designed for TV installer andelectricians. Being MPEG 4 the unit can display a live HD TVchannels.

The unit is easy to use and had all the important measurements built in like BER / MER.

3000mAH Lithium Ion battery insures you can do plenty ofjobs without re-charging.

With this meter you can actually view Digital TV channels.

It can also be used for alignment of CCTV camera's via the av input.

HDMI output for testing cable runs to your TV.

Features

  • Digital HD MPEG4 Tuner
  • High Quality 3.5? LCDColour Screen
  • MER, C/N & BER Display
  • Spectrum Analyser
  • LED Light
  • HDMI Input & Output
  • USB for Media & Software
  • Watch Live HD Digital Picture & Sound
  • AV In/Out With 12V Power For Security Camera Alignment
  • All Australian Frequencies Pre-Loaded

Specifications

DVB-T Tuner

  • Freq Range: 177.500~816.500MHz
  • DVB-T/T2 Compliant
  • Signal Level: -20~ ?70dbm
  • Antenna Connection: F-Type
  • DVB-C: Yes
  • Antenna Power: Yes (12v,18v, 24v)

Audio

  • Compression: MPEG I & II MPEG4 HE-AAC
  • Mode: Stereo, Joint Stereo, Mono
  • Standard: ISO/IEC 13818-3
  • Sampling Freq: 32, 44.1, 48KHz


Video

  • Video Decoding: MPEG 2/MPEG 4
  • TV System: PAL
  • Resolution: 576i, 576p, 720p, 1080i, 1080p
  • Aspect Ratio: 16:9, 4:3
  • Demodulation: QPSK, 16QAM, 64QAM
  • Guard Interval: 1/4, 1/8, 1/16, 1/32

Power

  • 3000mAh Lithium Ion Battery

In the Box

  • 1x Case
  • 1x 240v/12V Power Pack
  • 1x 12v Cable
  • 1x AV Cable
  • 1x Strap
  • 1x Battery 3000MAh
