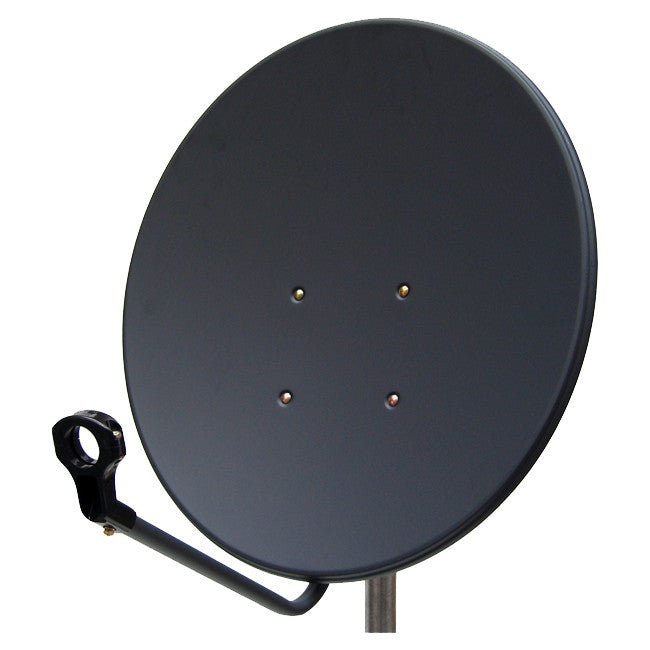

SATELLITE DISH 65 CM OFFSET FIXED
Foxtel Approval F30659
Best suited for commercial installations. The polyester-based powder coating is designed for exterior environments, salt spray, light, colour retention, and is also weather-resistant.
| Specifications | SDJ6502 | |
| Reflector | Type | Offset |
| Offset Angle | 24.62° | |
| Aperture(Diameter) | Horizontal Axis: 65 cm | Vertical Axis: 72.62 cm | |
| Efficiency | 77 % Min | |
| Ku-Band Gain @ 12.50 GHz | 37.44 dBi | |
| F/D Ratio | 2.6 | |
| Focus Length | 392 mm | |
| Material | Galvanised Steel | |
| Finish | Polyester Powder Coating | |
| Colour | Dark Grey | |

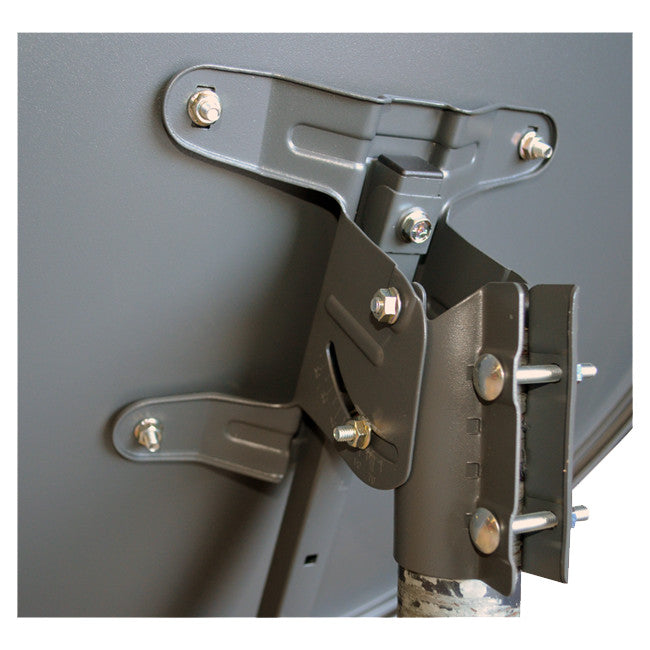

| Mounting | MountingType | Pole, Wall & Ground Mount |
| Adjustment Type | AZ/EL | |
| Material | Galvanised Steel | |
| Finish | Polyester Powder Coating | |
| Colour | Dark Grey | |
| Elevation | 12 ° … 70 ° | |
| Azimuth | 0° … 360 ° | |
| Pole Diameter | 41.5 mm … 46 mm | |
| Environment | Ambient Temperature | -40 °C … + 60 °C |
| RelativeHumidity | 1… 100 % |
