$149.00

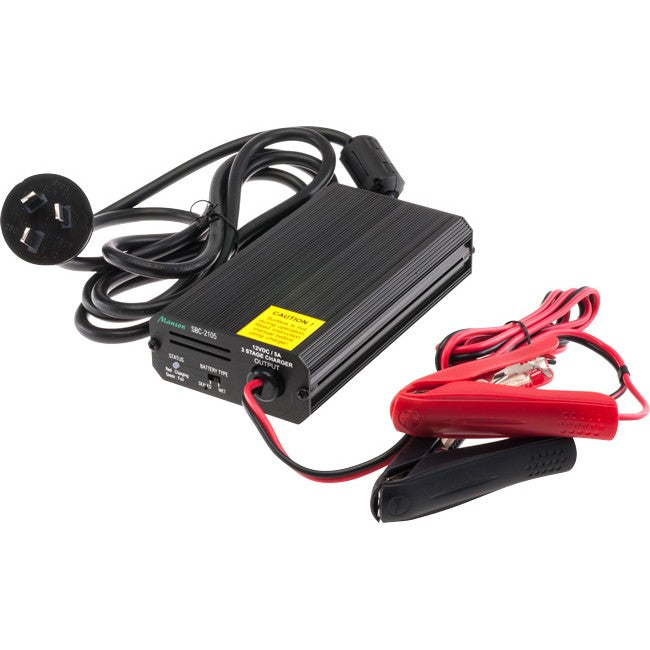

This compact, robust and light weight battery charger gives a complete and fast charge to sealed and wet type of lead acid battery.
In the Bulk Charge Stage, it charges the battery at a constant maximum current until the battery voltage increases to a slightly higher level and switches to the Absorption Mode at which the battery is then kept at this voltage while the charging current decreases to a low value.
When the battery is fully charged, the charger is then switched to the Floated Charge voltage where it can be maintained indefinitely. At the Float Charge Mode, the charger will make up for the loss of self discharge of the battery.
This charger has two selections to cover a wide range of sealed (VRLA) and the wet type of lead acid battery. In addition to the standard short circuit, over load, over temperature protections, it has electronic reversed polarity protection, output over voltage protection, and battery low voltage protection to prevent damage to the charger and the battery.
| AC Input Voltage 180-260V, 50Hz~ | Yes | |
|---|---|---|
| AC Input Current at full load at 230VAC | 0.8A | |
| Output (Charge) Voltage Selections (2 Battery Type) | Sealed Battery - Absorption (13.8V to 14.1V); Float (13.2V to 13.5V) | Yes |
| Wet Battery - Absorption (14.1V to 14.4V); Float (13.4V to 13.7V) | Yes | |
| Maximum Output Charging Current (Continuous) | 5A | |
| Line Regulation (180V to 260V) for Charging Current | 0.6% | |
| Ripple and Noise (Peak to Peak) | 120mV | |
| Efficiency at Maximum Power | 84% | |
| Protections | Short Circuit Protected | Yes |
| Overload Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Over Temperature Protection | Yes | |
| OVP (Output Over Voltage Protected | Yes | |
| Battery Under Voltage Protection | Yes When battery voltage <7.5V, charger will stop charging battery | |
| CE Approvals and Standards | EN 60335 , EN 55014 | |
| Charge Indication | 1 LED – Red: Charging; Green: Full or Float | |
| Anodised Aluminum Casing | Yes | |
| Size in mm (W×Height×Depth) | 142mm × 75mm × 32mm | |
| Weight | 380g | |
| Included Accessories | 2 × Clip-on mounting brackets | |
| Recommended Battery Capacity Range | 20AH to 50AH | |
